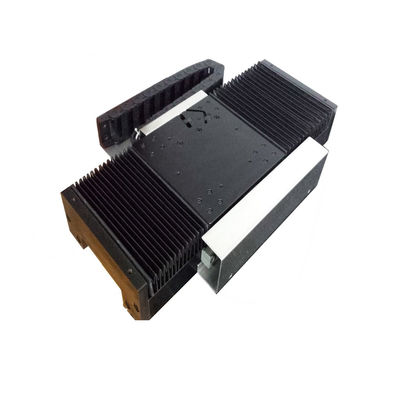

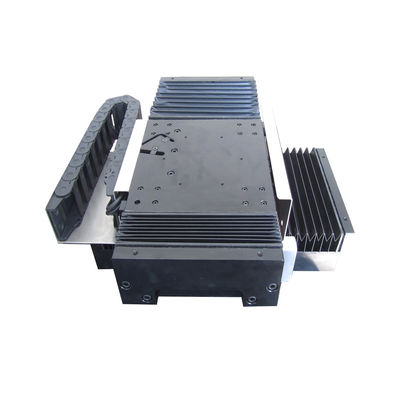

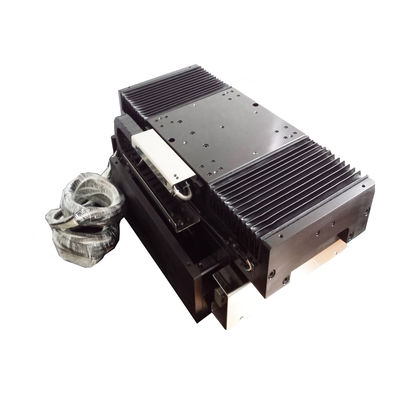

High Speed Highly Responsive Single-Axis Linear Motor Modules For Machine Vision
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | MLCA Series |
| Minimum Order Quantity | 1PCS |
| Price | $225 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Modularity | Modular Design |
|---|---|---|---|
| Type | Modular Motor System | Brand Name | SUPT-MOTION |
| Model Number | MLCA-0040-135-00 | Peak Force(N) | 120 |
| Peak Current(Amps) | 4.2 | Linear Motor(ms) | 0.3 |
| Continuous Current(Amps) | 1.4 | Weight Rotor | 0.42kg |
| Continuous Force(N) | 40 | Speed | High Speed |
| Highlight | Single Axis Linear Motor Modules,Highly Responsive Linear Motor Modules,Machine Vision Linear Motor Modules |
||
Product Description
product description:
Adopting SUPT linear motor, equipped with high-precision optical encoder, magnetic encoder and high-precision guideway, providing customers with ideal linear module solutions. Compact modular design, high speed, speed operation, smooth movement, good stability, high precision, long service life, maintenance-free. Effective stroke 150mm, Positioning accuracy: +2um Repeatability: +0.5um, Straightness: +3um Maximum speed: 2m/s, Maximum acceleration: 2g Configuration of the appropriate encoder and guideway, positional accuracy of up to 0.1-5um.
With high dynamic response, high accuracy, high repeatability, zero mechanical transmission error and thermally stable structure, the single-axis linear motor module has become the core drive technology of machine vision system, which can realize sub-micron positioning and high-speed synchronous detection.
Single-axis linear motor module can be used in camera scanning and positioning to move the camera accurately so that it scans or photographs the object under test, thus improving the inspection efficiency.
In automated production lines, single-axis linear motor modules are used to convey workpieces to be inspected, enabling precise positioning and ensuring accurate shooting and inspection.
In optical inspection systems it is used to drive optical lenses or laser sensors for precise adjustment, ensuring that the inspection system can measure the target area with high accuracy.
In robot systems, linear modules are used in conjunction with vision systems to perform automatic deflection correction, guide manipulators to accurately grasp objects, and improve automation.
features:
Linear motor module is equipped with high-precision optical encoder, magnetic encoder and high-precision guideway.
High speed, high acceleration operation, smooth motion, good stability and high precision.
Configuration of suitable encoder and guideway, position accuracy up to 0.1-5um.
Positioning accuracy:±2um, repeatability:±0.5um, straightness:±3um.
The platform structure can be processed and customized according to different technical requirements of customers.
Product parameters:
| Modules | T- | LC | 80 | -100 | A | 1 | 30 | ||||
| LC: The plate has an iron core motor | Peak thrust | Stroke: mm | A: Raster | 01:0.1um | Motor linelength: | ||||||
| LU: U-type coreless motor | B: Maeicgid | 05:0.5 um | 30: 3m | ||||||||
| 10: lum | |||||||||||
| Modules | T- | LC | 80 | -100 | A | 1 | 30 | ||||
| LC: The plate has an iron core motor | Peak thrust | Stroke: mm | A: Raster | 01:0.1um | Motor linelength: | ||||||
| LU: U-type coreless motor | B: Maeicgid | 05:0.5 um | 30: 3m | ||||||||
| 10: lum | |||||||||||
| Linear motor performance parameters | |||||||
| A Series--MLCA(Dynamic) MLFA(Stator) | |||||||
| Model/Par | MLCA-0020-075-00 | MLCA-0040-135-00 | MLCA-0080-255-00 | ||||
| Peak force(Fp) | N | 60 | 120 | 240 | |||
| Peak current(lp) | Amps | 4.8 | 4.2 | 4.2 | |||
| Continuous force(Fc) | N | 20 | 40 | 80 | |||
| Continuous current(lc) | Amps | 1.6 | 1.4 | 1.4 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 5.65 | 7.9 | 11.2 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 15.3 | 30.4 | 60.3 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 8.8 | 17.6 | 34.8 | |||
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 | |||
| Resistance(L-L)(R) | @25℃Ω | 4.8 | 9.4 | 19.2 | |||
| Inductance(L-L)(l) | mh | 1.51 | 3 | 6 | |||
| Heat transfer coefficient(Rth) | ℃/W | *3.9 | *1.9 | **1.3 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.24 | 0.42 | 0.82 | |||
Product Application:
The main applications of single-axis linear motors:
1. Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment.
2. Flat Panel Display (FPD) industry, precision test equipment/hard disk manufacturing/connector manufacturing/printing plate manufacturing equipment, etc.
3. Life sciences, medical equipment, machine vision inspection equipment, and various equipment occurrences.
4. Electronic components SMT placement, PCB test equipment, laser cutting, soldering and testing.
5.Logistics equipment devices.
