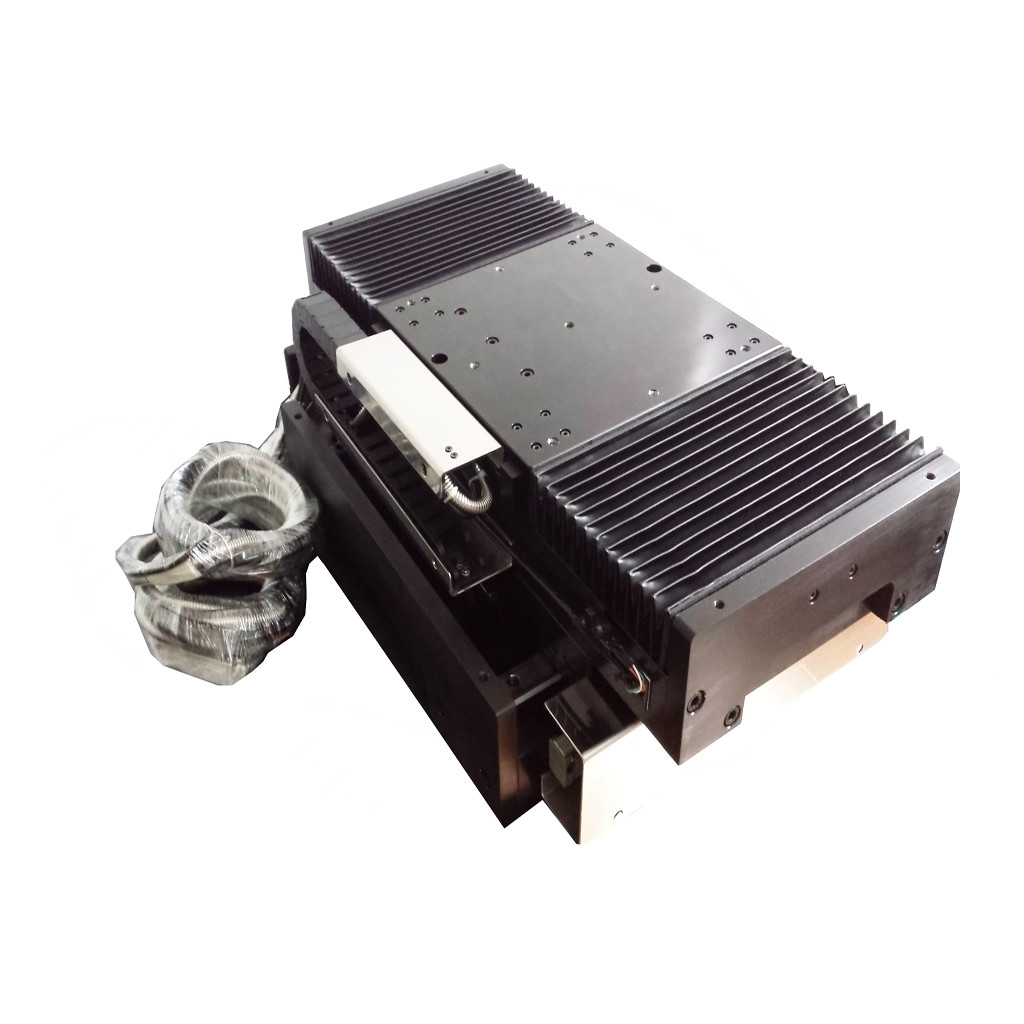

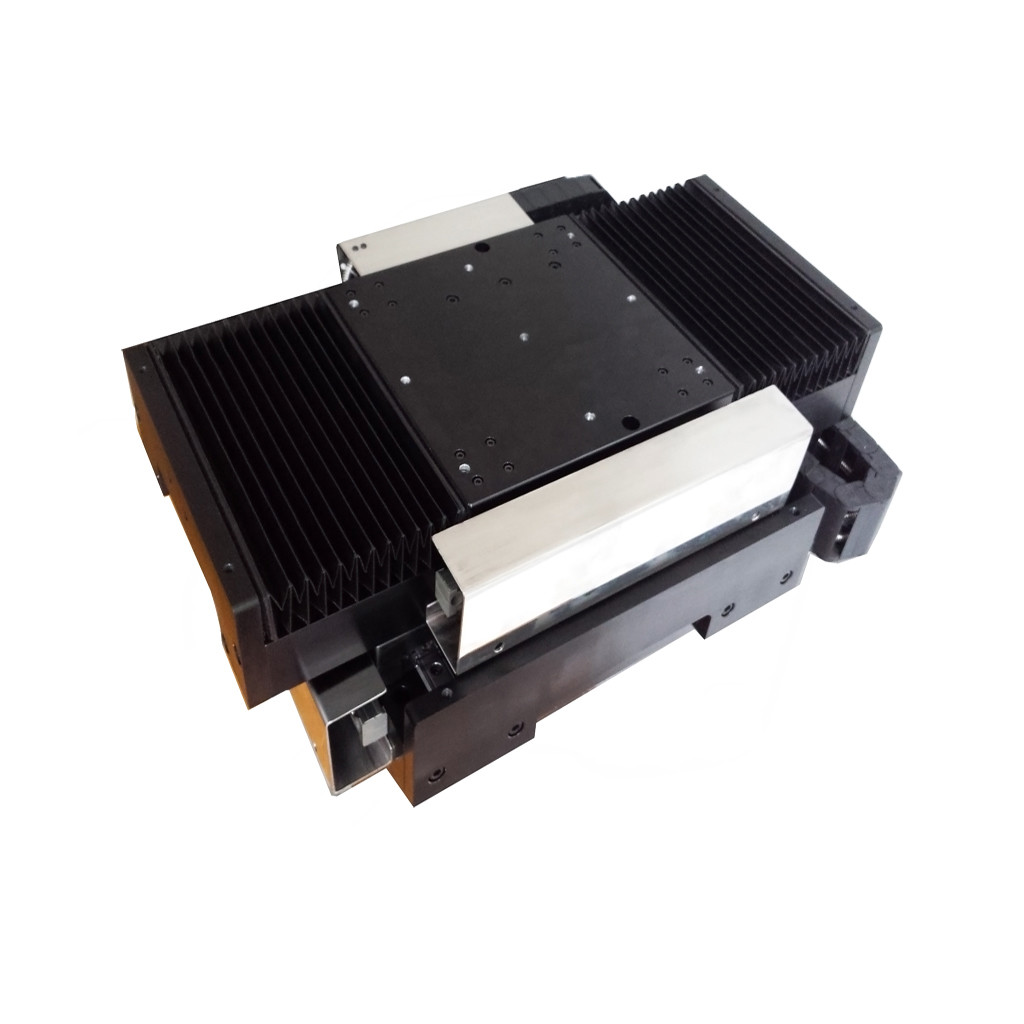

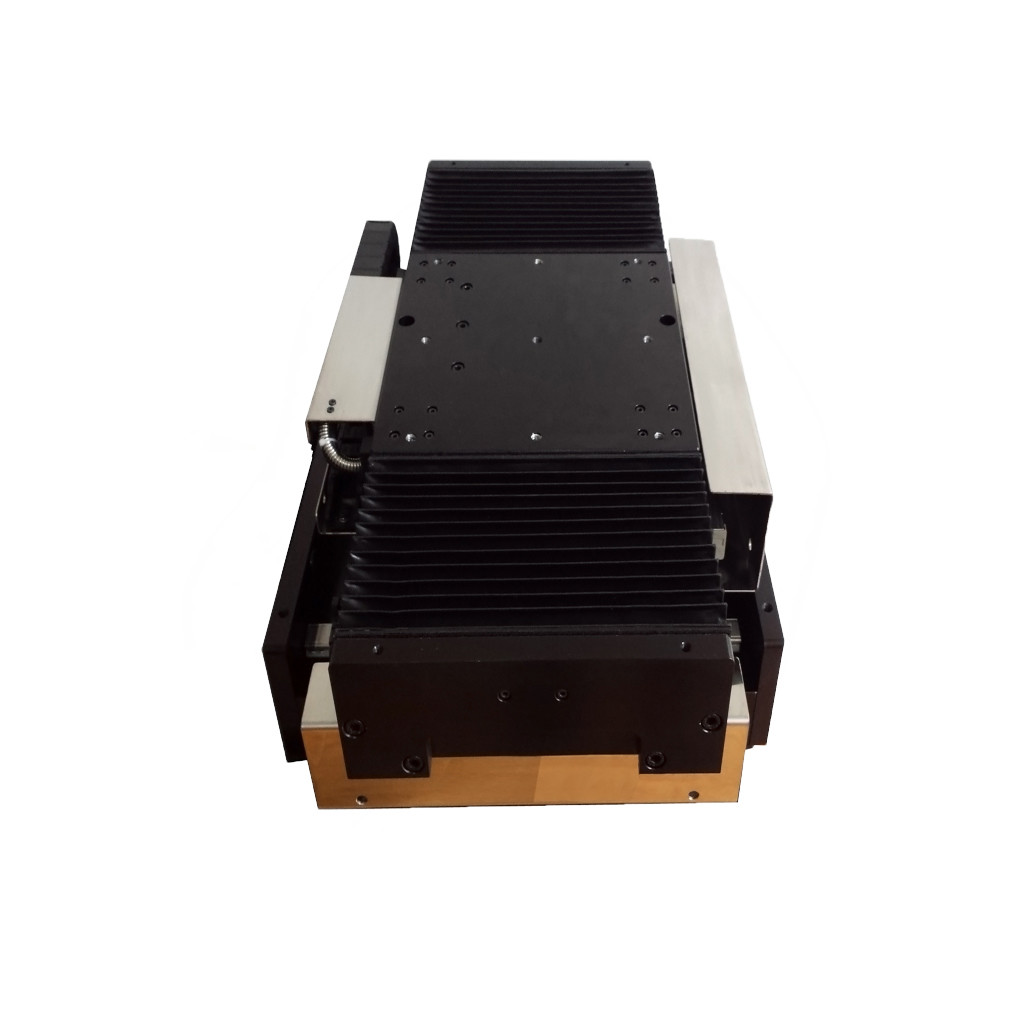

High Response Motor Modules High Effectively Small Linear Motion Platform

High Response High Effectively Small Linear Motion Platform Light Weight

Product Description:

The linear motor module is assembled from the following components and has corresponding characteristics:
1.  Linear motor:  Linear motor is the core component of the module, responsible for providing linear motion. It usually consists of a coil and a magnetic field generator (usually a permanent magnet). A linear motor utilizes the interaction between the magnetic field generated by the current passing through the coil and the magnetic field generator to achieve linear motion.
2.  Linear guide rail or slider:  Used to support and guide the movement of linear motors. Linear guides are usually composed of high-precision tracks and guides to ensure smooth motion and high-precision positioning.
3.  Mechanical Structure:  The mechanical structure includes a support frame, connectors, and positioning devices, used to fix the linear motor and linear guide rail together, forming a stable whole.
4.  Sensors and encoders:  These devices are used for real-time monitoring of the position and speed of linear motors, providing feedback signals to the control system to achieve closed-loop control and precise motion positioning.
5.  Controller:  The controller is responsible for sending control signals to the linear motor to achieve the required movement. It receives feedback signals from sensors and encoders to achieve closed-loop control and ensure the motion accuracy of the module.
6.  Power Supply: The linear motor module requires a power supply to provide the required current and voltage to drive the linear motor for movement.

Features of the linear motor module include high accuracy, high speed motion, smoothness, no backlash effect, fast response time, and compact design.

To provide customers with ideallinear module solutions.Compact modular design,high speed,smooth movement, good stability, high precision, long service life,maintenance-free. Effective stroke150mm, positioning accuracy:+2umrepeatability:+0.5u
m,straightness:+3um Maximum speed:2m/s,maximum acceleration:2g With appropriate encoder and guide railthe position accuracy can reach
0.1-5um. According to different movements,the thrust requirements of the configuration of appropriate drivers and controllers. The platform structure can be customized.

siean mderall tguxed bih
ove ment,goed stability, high precision. With suitable encader and ruide rail the poaition
ccuracy:±hum,repetition acouracy$0.Sum,straightness =3um
stiestcecbanond odaere technical requireme nts of oustmners.
