Voice Coil Motor Modules High Precision Linear Platform For Closed-Loop Servo Applications
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0436-0373-00A |
| Minimum Order Quantity | ≥1 |
| Price | $970.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box electric motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month electric motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 14.6 | Efficiency | IE 1 |
| Peak Force(N) | 436 | Maximum Travel(mm) | 37.3 |
| Electric Motor(V) | 38 | Weight Rotor(kg) | 1040 |
| Stator Dia(mm) | 76 | Continuous Force(N) | 142.6 |
| Port | Shanghai Electric Motor | ||
| Highlight | PDV Motor Modules 14.6A,Manual Linear Stage XY Axis ccc,High Precision Manual Linear Stage 14.6A |
||
Product Description
PDV Factory Price Sales High-Precision Manual Linear Stage XY Axis Platform
Product Description

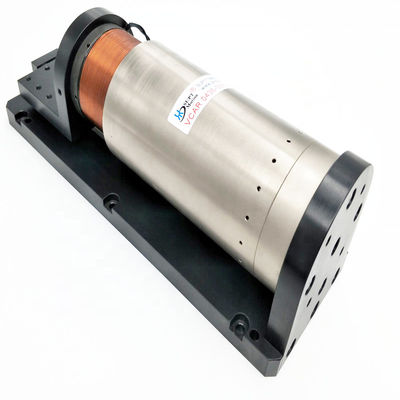

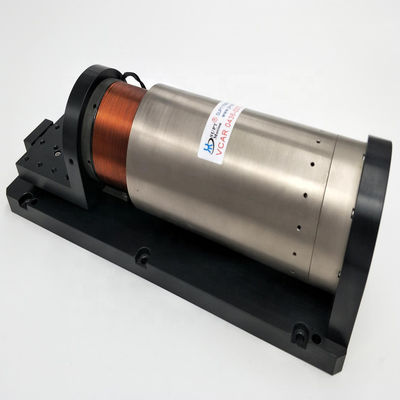

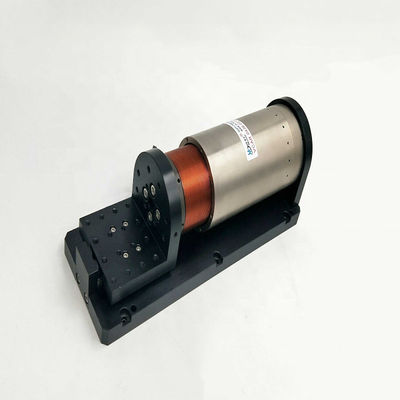

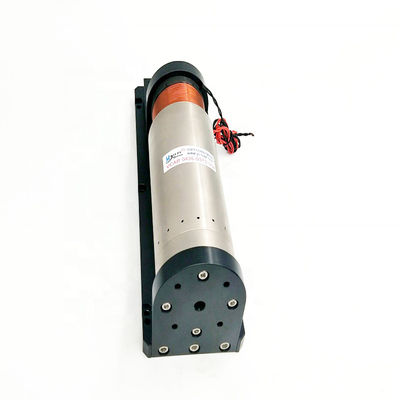

The VCAR series voice coil motor module linear platform is particularly suitable for short-stroke closed-loop servo applications. Because of its small size, it is suitable for use in some small spaces. It has high response speed (millisecond level) , light weight, so that it can do high-speed oscillatory reciprocating motion, high acceleration motion. The utility model has the advantages of convenient control, simple and reliable structure, no reversing device, no maintenance, long service life and long-term continuous work. This model VCAR0436-0373-00A voice coil motor linear platform for precision position, speed, acceleration and thrust control, no back clearance trouble. High precision and high acceleration features by the majority of friends favor, voice coil motor linear platform specifications and specifications can be customized according to customer requirements.
Voice coil motor single-axis module for short-stroke closed-loop servo applications with light actuator weight and fast response (up to 20G in milliseconds). The base adopts aviation aluminum precision machining, good stability, can do high-speed oscillating and reciprocating movement. Simple and reliable control, no reversing device required, maintenance-free long life. Precision position, speed, acceleration and thrust control is possible. Equipped with suitable encoder and guide rail, position accuracy can reach 0.1-5um. According to the different motion, the thrust requirements are configured with appropriate drivers and controllers. The platform structure can be processed and customized. According to different applications, suitable linear guiding mechanism is configured: different types of high-precision linear guide rails.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
