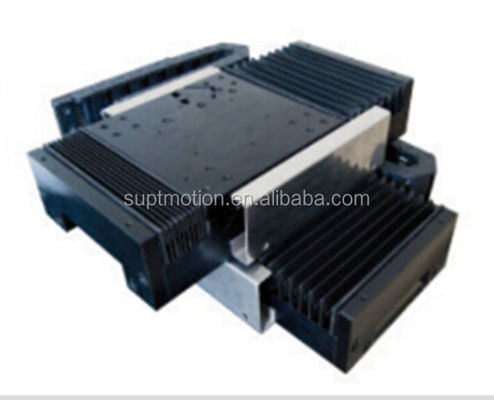

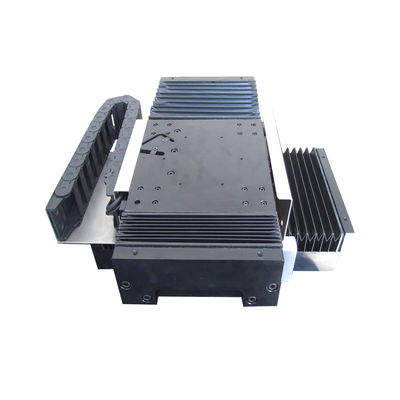

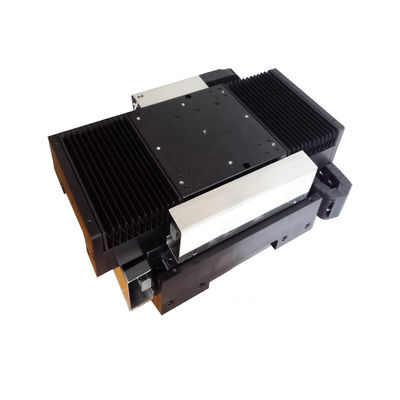

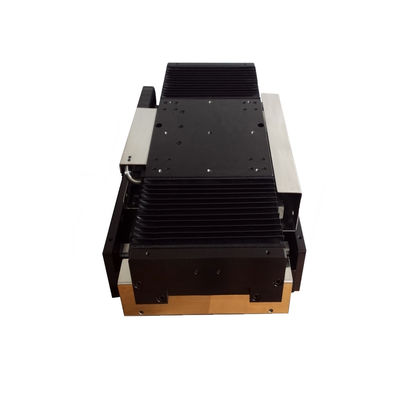

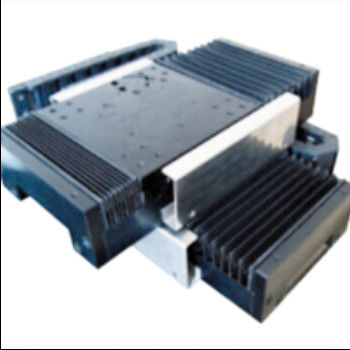

150*150mm Effective Stroke Linear Motor Stage High Accuracy Motorized Linear Stage

SUPT linear motor with high-precision grating, magnetic grid andhigh-precision guide rail. High speed, high acceleration operation.smooth movement, good stability, high precision. With suitableencoder and guide rail, the position accuracy can reach 0.1-5um.Positioning accuracy: 土2um, repeatability: 0.5um,straightness+3um Platform structure can be customized according to differenttechnicalrequirements ofcustomers.

Constitute a linear motor platform

Typical platform configuration:
Base general use castings&alu, Is the foundation of the entire platform, To fix the motor, rail, grating, stoppers etc.
Motot including stator & mover,A stator fixed on the base,Mover and load platform to be connected,Provide motive power.
Rail including linear rail and linear guide slider, load platform is connected to the slider. Loading platform support load platform,
Scale of reading head is mounted on a motion platform.
Position feedback, including the scale and scanning head,
Grating mounted on the base,Scanning head and sports platfornto connect Stopper on both sides of the base installation,
Ensure the safe operation of motor.

linear motor module:
The linear motor without iron core or with ironcoreis equipped with high-precisiorgrating, magnetic grid and high-precision guide rail. High speed, high accelerationoperation, smooth movement, good stability, high precision. With suitable encodeand guide rail, the position accuracy can reach 0.1-5um, Positioning accuracy+2um.repeatability: 0.5umstraightness 3um Platform structure can bedifferent technicalrequirements of customers, SUPTcustomized according to (linear motor is adopted, and high-precision grating, magnetic grid andhigh-precision guide rail are configured. High speed, high acceleration operation.smooth movement,good stability, high precision. With suitable encoder and guiderail, the position accuracy can reach 0.1-5um Positioning accuracy: 2um,repeatability accuracy: +0.5um, linearity: 3um Platform structure can becustomized according to different technical requirements of customers.

Application:

The linear motor module platform has been widely used in multiple fields, and its high accuracy, high-speed, and stability make it suitable for many scenarios that require precise motion and control. The following are the main application areas of the linear motor module platform:
1.  Semiconductor Manufacturing:The linear motor module platform is used for precise wafer positioning, testing, and packaging processes in semiconductor manufacturing. They can achieve micrometer level position control, ensuring high precision and consistency in semiconductor production.
2.  Medical Equipment: In the medical field, linear motor module platforms are commonly used in medical imaging equipment, surgical robots, and precision detection equipment. They can achieve high-precision motion, ensuring the safety and accuracy of medical operations.
3.  Optical Equipment:  The linear motor module platform is used in fields such as optical instruments, laser equipment, and microscopes. They can achieve precise positioning and focusing of optical components, improving the performance of optical systems.
4. Automated Production Line:  In the manufacturing industry, linear motor module platforms are used for material handling, assembly, and testing on automated production lines. They can achieve efficient and accurate material handling and assembly operations.
5.  Aerospace:  In the aerospace field, linear motor module platforms can be used for flight simulators, satellite positioning, and aviation equipment testing. They can simulate precise motion in flight or space environments.
6.  Precision machining: The linear motor module platform is widely used in precision machining fields such as engraving, cutting, stamping, etc. They can achieve precise machining of complex shapes.
