High Speed Voice Coil Motor Modules Linear Motorized Platform For The Optical System
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0070-0149-00A |
| Minimum Order Quantity | ≥1 |
| Price | $365.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 70 | Maximum Travel(mm) | 14.9 |
| Voice Coil Motor(V) | 26.9 | Weight Rotor(kg) | 79 |
| Stator Dia(mm) | 43 | Continuous Force(N) | 27.3 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | Vertical Travel Motor Modules Stage,Inground Linear Motorized Module Stage,Linear Motorized Module Stage 200mm |
||
Product Description
Vertical Travel Inground Linear Motorized Module Stage 200mm High Frequency Of Movement
Product Description

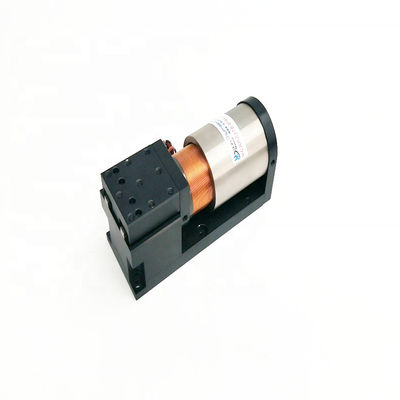

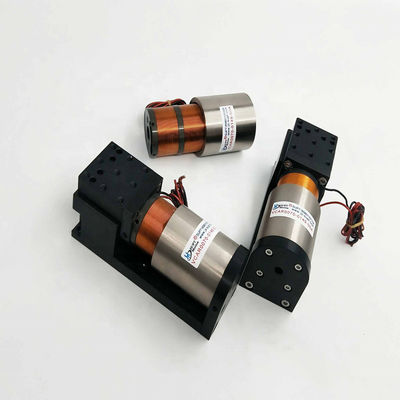

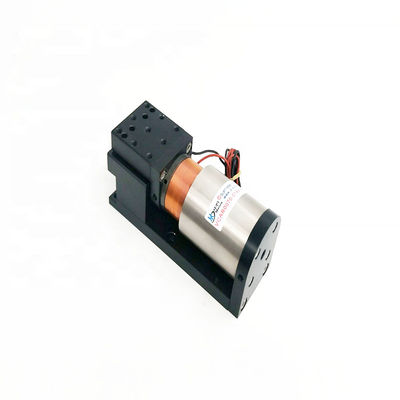

VCAR series cylindrical voice coil motor module linear platform is more suitable for closed-loop servo applications, it adopts aviation aluminum precision machining, good stability, can do high-speed oscillating reciprocating movement, it has high acceleration power, but also has high movement frequency, convenient control, simple and reliable structure, no reversing device, maintenance-free, long life characteristics. Applications for the VCAR series of actuators include valve actuators, Z-axis pickup and placement, small precision positive displacement metering pumps, as well as vibrators and active vibration damping systems. A wide range of applications, including medical semiconductors, aerospace and automotive, yachts, cars, electric bicycles, drones, robots, medical ventilators, microscopes, endoscopes, optical systems.
Optical positioning system: The vertical movement in the optical system, spectrometer, and microscope can be used to move the sample up and down, achieving precise field of view adjustment and precise positioning of the sample.
Medical Equipment: The vertical movement in medical equipment plays a role in fields such as X-ray imaging, surgical robots, and radiation therapy, ensuring accurate interaction between equipment and instruments and patients.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
The Voice Coil Actuator Platforms are Particularly suitable for closedloop servo application of short stroke,because of the small volume espcially suitable for narrow space. The Voice Coil Actuator Platforms are able to conduct procise positionvelocityacceleration and force control.Position accuracy level reachea 0.1um-0,5um, acceleration reached 20G. The Voice Coil Actuator Platforms technology and specifications are able to according to Customer requirements.
