High Speed small weight Voice Coil Motor Linear Platform For Industrial Robot
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAR0105-0164-00A |
| Minimum Order Quantity | ≥1 |
| Price | $430.00/pieces 1-9 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics, Optical Lens |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 9A | Efficiency | IE 1 |
| Peak Force(N) | 105 | Maximum Travel(mm) | 16.4 |
| Voice Coil Motor(V) | 20.1 | Weight Rotor(kg) | 150 |
| Stator Dia(mm) | 60.4 | Continuous Force(N) | 35.4 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | 2 Axis Linear Motion Stage 105N,Linear Motion Stage Industrial 150mm,Rail Guide Xy Stage Motorized 150mm |
||
Product Description

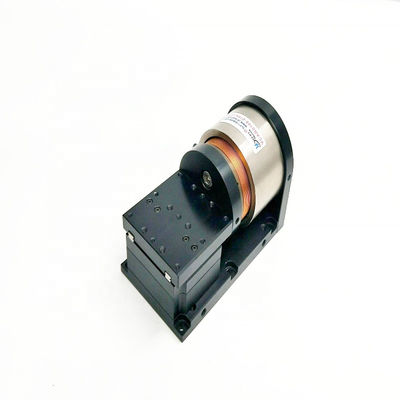

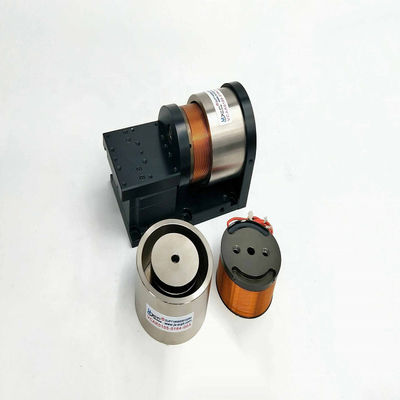

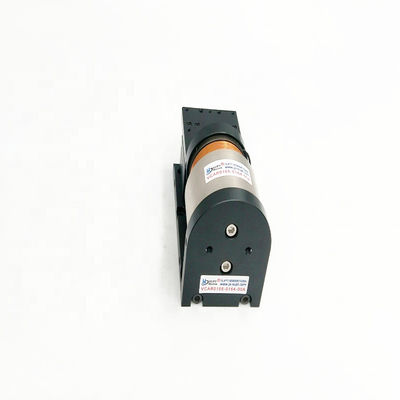

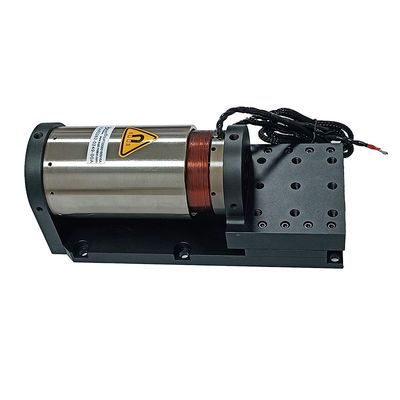

2 Axis Industrial Robot High Speed Motorized Rail Guide XY Linear Table Stage
Product Description
Voice coil motor linear platform is particularly suitable for short-stroke closed-loop servo applications. Because of its small size, it is especially suitable for use in some narrow spaces. In addition, it has fast response speed (millisecond) , small weight, and can achieve high acceleration, can do high-speed oscillatory reciprocating motion. Simple and reliable control, no reversing device, maintenance-free, long life, can be long-term continuous work. Our voice coil motor linear platform can carry out precise position, speed, acceleration and thrust control, no back clearance trouble. The position precision level can reach 0.1-5μm and the acceleration can reach 20G. Voice coil motor linear platform specifications and specifications can be customized according to customer requirements.
The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
