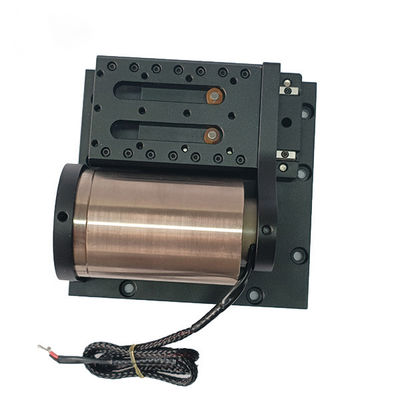

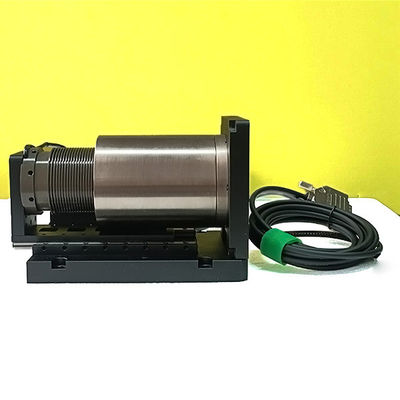

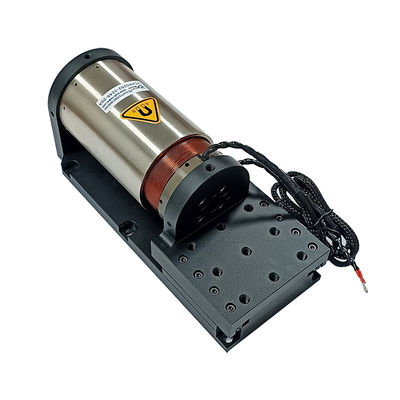

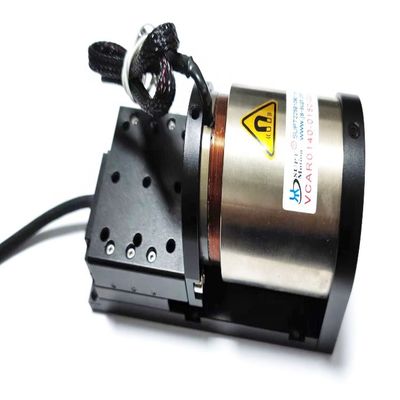

Short Response Voice Coil Motor Module No Cogging Effect VCM Motor Module
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001:2008 |
| Model Number | VCAR0140-0150-00A |
| Minimum Order Quantity | ≥1 |
| Price | $930.00/pieces |
| Packaging Details | carton & wooden box micro motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, UAV, 3D Printing, Microscope, Endoscope, Robot,Medical Ventilators |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Fast |
| Continuous Current(A) | 19.9 A | Efficiency | IE 1 |
| Peak Force(N) | 1351 | Maximum Travel(mm) | 31 |
| Micro Motor (V) | 73.5 | Weight Rotor(kg) | 1050 |
| Stator Dia(mm) | 110 | Continuous Force(N) | 376.8 |
| Highlight | Short Response Voice Coil Motor Module,Voice Coil Motor Module 19.9 A,No Cogging Effect VCM Motor Module |
||
Product Description
Short Response Voice Coil Motor Module No Cogging Effect High Acceleration
Product Description
The voice coil motor module is a modular device that integrates voice coil motors and mechanical structures, used to achieve precise linear motion control. The design of the voice coil motor module aims to integrate high-performance voice coil motors with appropriate mechanical components to achieve precise and smooth motion in various applications.
Voice coil motor module linear Motor platform is particularly suitable for closed-loop servo applications with short stroke, light actuator weight and fast response (millisecond, acceleration up to 20G). Voice coil motor module base adopts aviation aluminum precision machining, good stability, can do high-speed oscillating and reciprocating movement. Simple and reliable control, no reversing device, maintenance-free, long life can be expected to work continuously. It is widely used in BOAT, automobile, drone, 3D printing, microscope, endoscope, robot, medical ventilator, voice coil electric module can perform precision position, speed, acceleration and thrust control. Equipped with suitable encoder, position accuracy can reach 0.1-5um.
According to different movements, the thrust requirements of the configuration of the appropriate driver and controller platform structure can be customized: according to different applications with the configuration of the appropriate linear guiding mechanism: special linear bearing system, oil-free self-lubricating bearing system.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
micro motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
