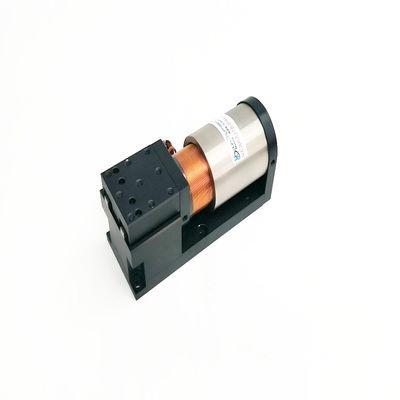

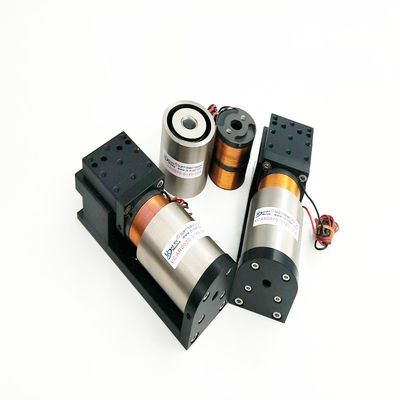

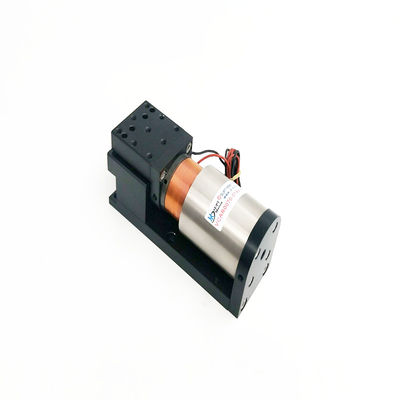

High Frequency Response Voice Coil Motor Micro Linear Platform For Automatic Focusing Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0070-0149-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $365.00/pieces >=2 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 70 | Maximum Travel(mm) | 14.9 |
| Voice Coil Motor(V) | 26.9 | Weight Rotor(kg) | 79 |
| Stator Dia(mm) | 43 | Continuous Force(N) | 27.3 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | High Frequency Response Voice Coil Motor,Micro Voice Coil Motor Stage,4A Voice Coil Motor Stage |
||
Product Description
High Frequency Response Voice Coil Motor Micro Strong Micro Voice Coil Motor Stage
Product Description
A linear platform with voice coil motor (VCM) exhibits several distinct characteristics, making it an invaluable component in automatic focusing systems.
Characteristics of Voice Coil Motor Linear Platform in automatic focusing systems:
1.High Precision: The linear platform offers exceptional precision in positioning due to the direct-drive nature of the voice coil motor, ensuring accurate movement without mechanical backlash.
2. Smooth Motion: Voice coil motors provide smooth and frictionless motion, ensuring minimal vibration and disturbance during operation.
3. Rapid Response: VCMs have quick response times, enabling fast adjustments and precise positioning within autofocus systems.
4. Low Hysteresis: Voice coil motors exhibit low hysteresis, ensuring accurate position control during both forward and reverse movements.
5. High Acceleration: Linear platforms with VCMs can achieve high acceleration rates, allowing for swift and efficient focusing adjustments.
6. Low Noise:The absence of mechanical components and gearing reduces operational noise, critical for maintaining a quiet environment in various applications.
7. Direct Drive: The direct-drive mechanism eliminates the need for gears or belts, minimizing wear and tear while ensuring high reliability and longevity.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Packaging & Shipping
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
