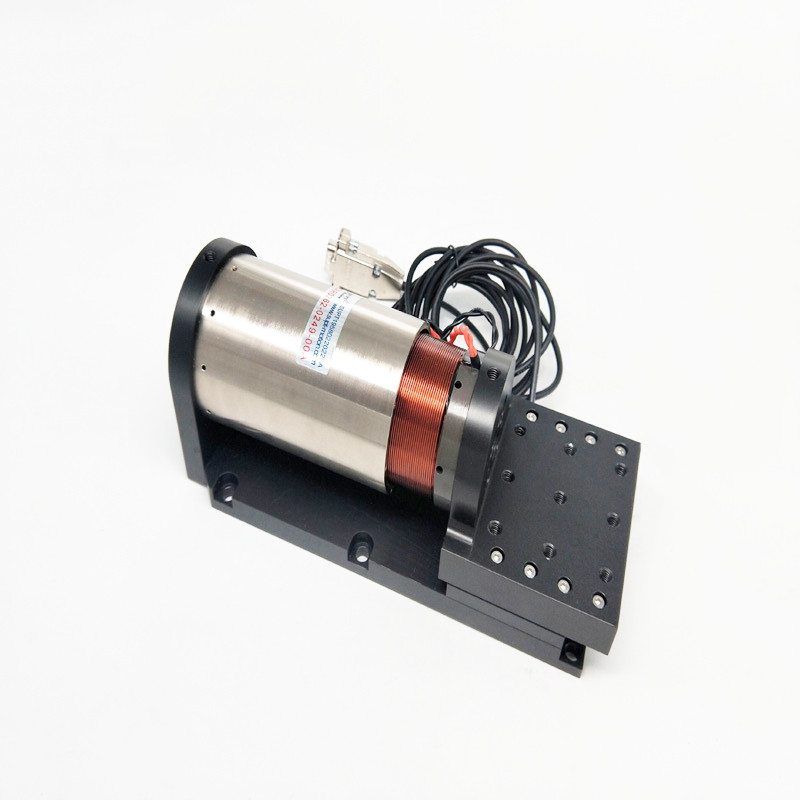

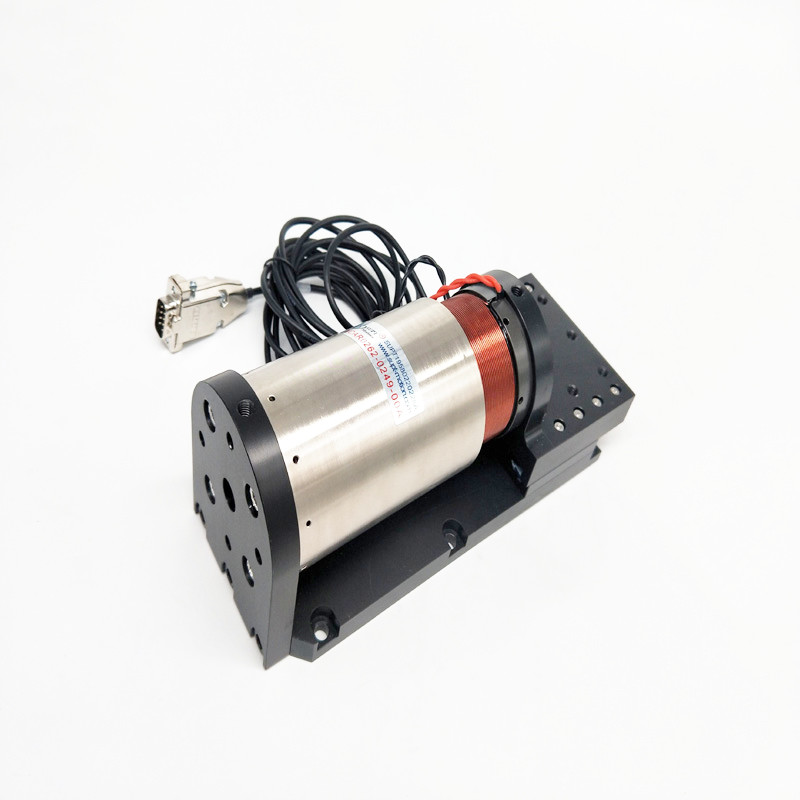

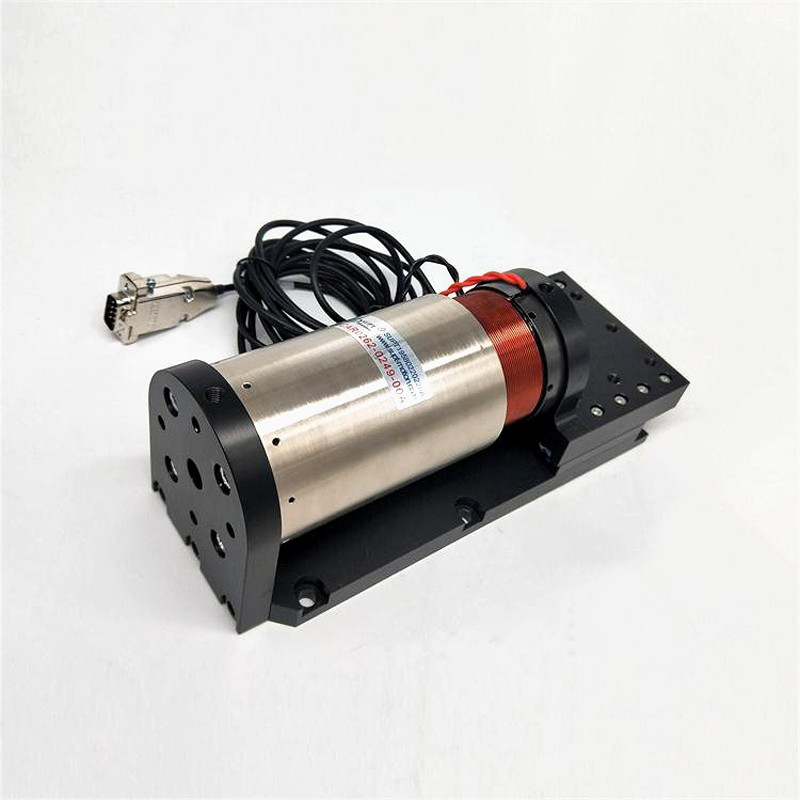

Lightweight Voice Coil Motor Modules VCM High Response Without Cogging Effect
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAR0262-0249-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $600.00/pieces >=2 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics, Optical Lens |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 10.1A | Efficiency | IE 1 |
| Peak Force(N) | 262 | Maximum Travel(mm) | 11.2 |
| Voice Coil Motor(V) | 28.2 | Motor Weight R(kg) | 2 |
| Continuous Force(N) | 112 | Port | Shanghai Voice Coil Motor |
| Highlight | Lightweight Motor Modules Stage VCM,Motor Modules Stage VCM High Response,VCM High Response Electric Stage |
||
Product Description
Lightweight High Response Electric Stage Without Cogging Effect Voice Coil Motor
Product Description
VCAR series cylindrical voice coil motor module linear platform is more suitable for closed-loop servo applications, its model is VCAR0262-0249-00A, adopts aviation aluminum precision machining, good stability, can do high-speed oscillation reciprocating movement, its peak thrust is 262N, continuous current is 10A, but also has high acceleration power, Fast response speed (millisecond acceleration up to 20G), and has a high frequency of movement, convenient control, simple and reliable structure, no reversing device, maintenance-free, long life, can work continuously for a long time, and the warranty time is 3 months to 1 year.
The characteristics of the voice coil motor module without slot effect make it an ideal choice for achieving smooth and precise motion control.
Smooth motion: The voice coil motor module without tooth slot effect can achieve frictionless linear motion, eliminating the chatter and vibration that may occur in traditional gear transmission.
Precise positioning: The slotless effect eliminates backlash in mechanical transmission, enabling the voice coil motor module to achieve high-precision positioning.
Quick response: The voice coil motor module without slot effect has fast response characteristics, which can quickly adjust position and speed to meet different performance needs, such as stage lifting, rotation, tilting, etc.
Silent operation: The voice coil motor module without slot effect generates lower noise levels during movement, helping to maintain the focus and atmosphere of the performance.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
VCAR series voice coil electric modules are used in a wide range of applications, including medical semiconductors, aerospace and automotive, yachts, automobiles, electric bicycles, drones, robots, medical ventilators, microscopes, endoscopes, optical systems. According to the different motion, the thrust requirements are configured with appropriate drivers and controllers. The platform structure can be processed and customized. According to different applications, suitable linear guiding mechanism is configured: different types of high-precision linear guide rails.
Our Services
Technical indicators & specifications can be customized
