Short Response Time Voice Coil Motor Modules High Precision Linear Positioning Stage
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0070-0149-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $365.00/pieces >=2 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 70 | Maximum Travel(mm) | 14.9 |
| Voice Coil Motor(V) | 26.9 | Weight Rotor(kg) | 79 |
| Stator Dia(mm) | 43 | Continuous Force(N) | 27.3 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | Short Response Time Motor Modules,Voice Coil Positioning Stage 70N,High Precision 70N Voice Coil Positioning Stage |
||
Product Description

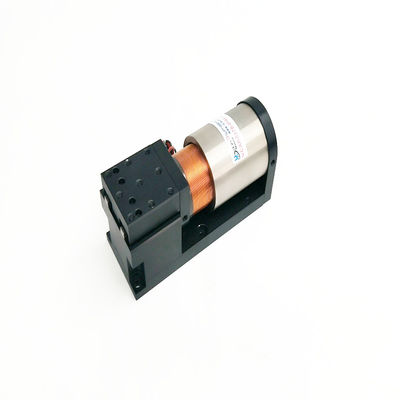

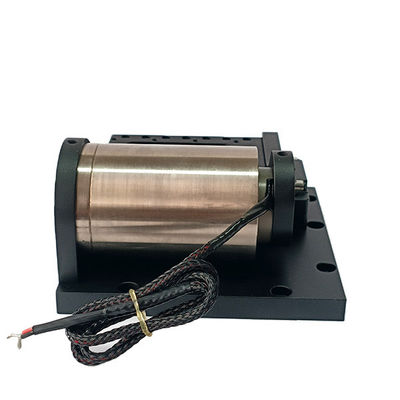

High Precision And Short Response Time Voice Coil Actuator Level Linear Platform
Product Description
The design principle of the linear platform for voice coil motors is based on the working principle of voice coil motors, combined with mechanical structure and control system to achieve precise linear motion control. The following is the basic principle and concept of designing a linear platform for voice coil motors:
1. Voice coil motor working principle: Voice coil motor is a linear motor composed of a fixed magnetic field and a movable coil. When energized through the coil, the generated current and magnetic field interact to generate a force that drives the coil to move linearly on the guide rail.
2. Mechanical Structure Design: When designing a linear platform for voice coil motors, it is necessary to consider the design of mechanical components such as guides, coils, and motion transmission structures. The guide rail and slider must have high precision, low friction, and high rigidity to ensure smooth movement.
3. Closed structure: To prevent external particles and environmental impacts, a closed mechanical structure can be considered in the design to ensure the protection and stable operation of motor components.
4. Sensor Installation: Install position sensors, such as encoders or Hall sensors, on a linear platform to obtain real-time position feedback. These feedback signals are used in closed-loop control to adjust the movement of the motor and achieve precise position control.
5. Closed loop control system: Voice coil motor linear platforms usually use a closed loop control system, which adjusts the motor's current based on real-time position feedback to accurately move the coil to the target position. The controller can be embedded or external, and can be selected according to application requirements.
Technical Parameters:
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |

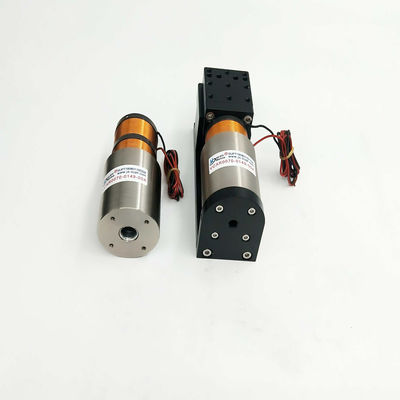

Cylindrical voice coil motor module linear platform is more suitable for closed-loop servo applications, its model is VCAR0070-0149-00A, adopts aviation aluminum precision machining, good stability, can do high-speed oscillation and reciprocating movement, its peak thrust is 70N, continuous current is 4A, it has high acceleration, light weight, small size, high frequency noise, high precision, High frequency sound, precise force control, fast response speed (millisecond acceleration up to 20G) and other characteristics, and has a high frequency of movement, easy control, simple and reliable structure, no reversing device, maintenance-free, long life, can work continuously for a long time, and the warranty time is 3 months to 1 year. Its applications include medical semiconductors, aerospace and automotive, yachts, automobiles, electric bicycles, drones, robots, medical ventilators, microscopes, endoscopes, optical systems. Can be customized according to customer needs.
