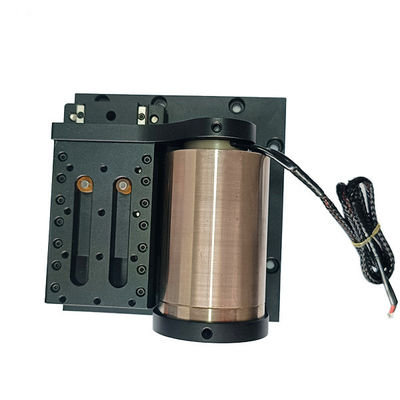

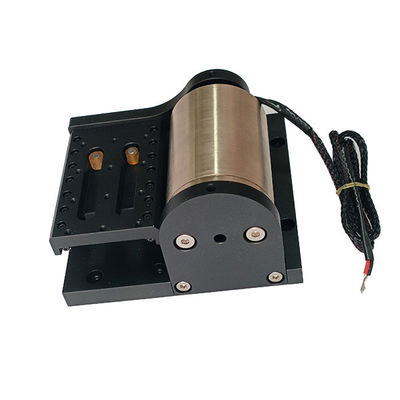

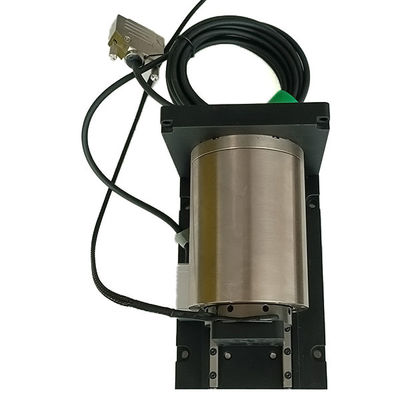

Voice Coil Motor Modules High Opositioning Linear Stage For Microscopes

Voice coil motor modules play a crucial role in microscopes by providing precise and controlled linear motion for various components and functions. Their application in microscopes enhances imaging quality, focus control, and overall performance. The following are the key roles of voice coil motor modules in microscopes:

1. Auto-Focus Mechanism: Voice coil motor modules are employed in microscope auto-focus systems to achieve rapid and accurate focusing of the specimen. They allow the microscope to quickly and precisely adjust the focus position, resulting in sharp and clear images.

2. Objective Lens Positioning: Voice coil motor modules aid in adjusting the position of the microscope's objective lens. This ensures accurate alignment with the sample and optimizes image quality.
3. Image Stabilization: Some microscopes use voice coil motor modules to stabilize the imaging process by compensating for vibrations or drift, resulting in improved image clarity.

4. Microscope Stage Control: Voice coil motor modules are integrated into microscope stages to enable smooth and precise movement of samples or slides. This is critical for examining different areas of a specimen.
5. Fast Focus Switching: In microscopes with multiple objectives or imaging modes, voice coil motor modules allow for rapid switching between different focus planes or magnifications.

6. High-Resolution Imaging: For high-resolution imaging techniques like super-resolution microscopy, voice coil motor modules contribute to accurate sample positioning and movement, essential for achieving detailed images.

Technical Parameters:

The voice coil motor module is especially suitable for short-stroke closed-loop servo applications, mover light weight, fast response speed (ms, acceleration up to 20G) . The base of voice coil motor module is made of aeronautical aluminum, which has good stability and can do high-speed oscillating reciprocating motion. Simple and reliable control, no reversing device, maintenance-free, long life can be expected to work continuously. Voice coil motor module for precision position, speed, acceleration and thrust control. The position accuracy can reach 0.1-5um with suitable encoder. According to the different motion, the thrust requirements of the appropriate configuration of the driver and controller platform structure can be customized: according to different applications with the appropriate configuration of linear guide mechanism: special linear bearing system, oil-free self-lubricating bearing system.

 Technical indicators & specifications can be customized
