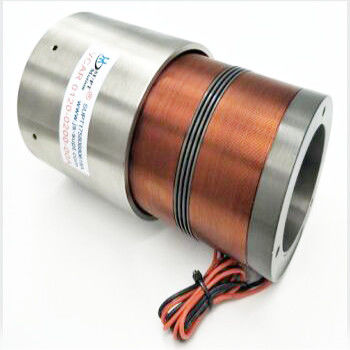

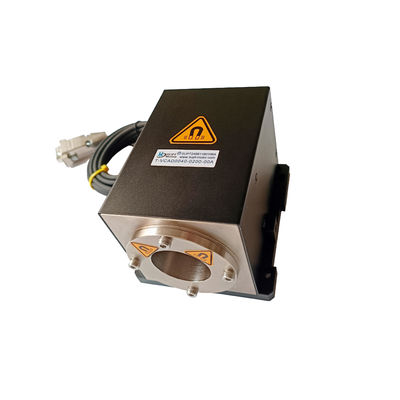

High Precision Micro Hollow Core Motor Voice Coil Actuator For Optical System
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAD0120-0200-00A |
| Minimum Order Quantity | 1PCS |
| Price | $189 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protect Feature | Totally Enclosed | Continuous Force | 53N |
|---|---|---|---|
| Size | Small | Total Stroke | 20mm |
| Frequency | 50 | Motor Shaft Diameter | 20mm |
| The Length | 75mm | Current | 5A |
| Peak Force (N) | 120 | Application | Industrial Automation |
| Type | Micro Motor | ||
| Highlight | Micro Hollow Core Motor,High Precision Hollow Core Motor,Optical System Hollow Core Motor |
||
Product Description
Product Description:

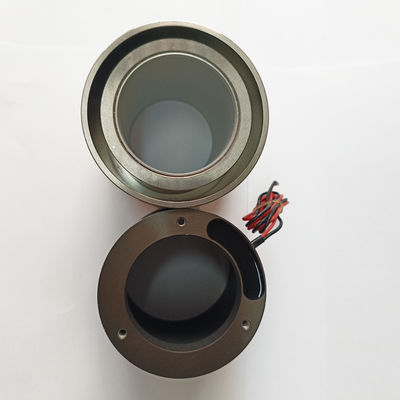

The Hollow Core Motor Voice Coil Motor is a special form of voice coil motor whose design features include an inner through-hole structure, a design that allows for greater flexibility and adaptability in applications.
It is characterized by high response, high accuracy, light linear mass and can be modularized.
Hollow Core Motor voice coil motors are used in the field of optical systems:
Camcorders and digital cameras: used to realize the autofocus function, by precisely controlling the movement of the voice coil motor, the distance between the lens and the photographic element is quickly and accurately adjusted to ensure that the shooting picture is clear. For example, when shooting scenes at different distances, the voice coil motor can respond quickly to make the lens focus accurately.
Microscope: Boosting the automatic focusing of the microscope, it is convenient for users to quickly find a clear observation field and improve the observation efficiency and accuracy, which is very important for the observation and research of tiny objects.
Features:
High response, high acceleration, low mass coils.
No cogging effect, zero hysteresis.
Simple structure, light weight, high frequency response, smooth operation.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Application:
Hollow Core Motor voice coil motors can also be widely used in a variety of applications that require high precision and high response speed. For example:
Medical equipment: In the medical field, Hollow Core Motor voice coil motors are commonly used for precision positioning and control, such as micro-adjustment of microsurgical instruments and endoscope manipulation.
Semiconductor manufacturing: In semiconductor production lines, these motors are used for precise control of various micro-operations such as wafer positioning and transfer.
Automation Industry: In automation equipment, Hollow Core Motor voice coil motors are commonly used for high-speed, high-precision linear or circular motion control.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
