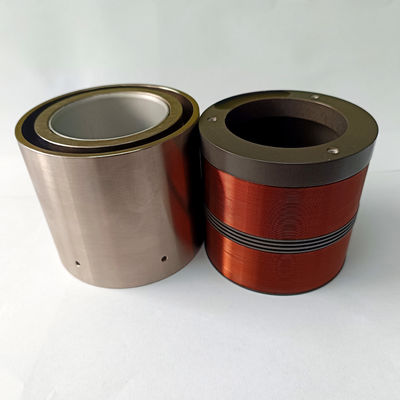

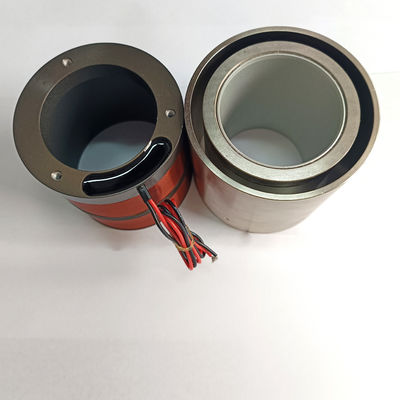

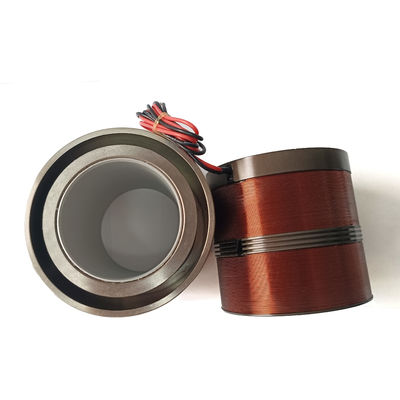

100Hz Rated Frequency Hollow Core Motor 120N Totally Enclosed Hollow Bore Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAD Series |
| Minimum Order Quantity | ≥2 |
| Price | $95 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shaft Diameter | 20mm | Peak Force | 75N |
|---|---|---|---|
| Motor Type | Hollow Core Motor | Product Model | VCAD0120-0200-00A |
| Protect Feature | Totally Enclosed | Enter The Length Of The Coil(mm) | 51mm |
| Rated Power | 2500N | ||
| Highlight | 100Hz Rated Frequency Hollow Core Motor,Hollow Core Motor 75N,75N Totally Enclosed Hollow Bore Motor |
||
Product Description
Low Noise Totally Enclosed Hollow Internal Motor 100Hz Rated Frequency
Product Description:
Hollow Core Motor is a type of coreless rotating motor and coreless power motor, designed to provide high torque and inner through-hole voice coil motor. With a maximum travel of 20mm, rated power of 2500N and length of the coil of 75mm, it is highly efficient and reliable. It is ideal for precision positioning in a wide range of applications. Its hollow design reduces power consumption and provides quieter operation.zero hysteresis. Simple structure, light weight, high frequency response.
Features:
- Product Name: Hollow Core Motor
- Mounting Method: Flange
- Insulation Class: F
- Cooling Method: Air Cooling
- Rated Frequency: 100Hz
- Product model: VCAD0120-0200-00A
- Internal Power Motor
- Coreless Power Motor
- Hollow Internal Motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Motor Type | Hollow Internal Generator, Coreless Power Motor, Internal Rotating Motor |
| Rated Frequency | 100Hz |
| Maximum Travel(mm) | 20 |
| Noise Level | Low |
| Ambient Temperature | 0-40℃ |
| Cooling Method | Air Cooling |
| Voltage | 78V |
| Mounting Method | Flange |
| Length of the Coil(mm) | 75mm |
| Insulation Class | F |
| Peak Force | 120N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Applications:
The SUPT VCAD Series Hollow Core Motor is an internal power motor with a coreless design, which is air cooled and offers superior protection features. This power motor is certified with ISO9001 and comes with an insulation class of F, making it a reliable and safe choice. The product model is VCAD0075-0160-00A, and the minimum order quantity is 2 pieces. The price is listed as $95 per piece, with delivery times ranging from general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. The packaging details are generally carton packaging, and payment terms can be either T/T . Interviews are available for details on Supply Ability. The SUPT VCAD Series Hollow Core Motor is a reliable and safe choice for a variety of applications and scenarios.
It is widely used in optical scanning, positioning and auto focusing systems.
