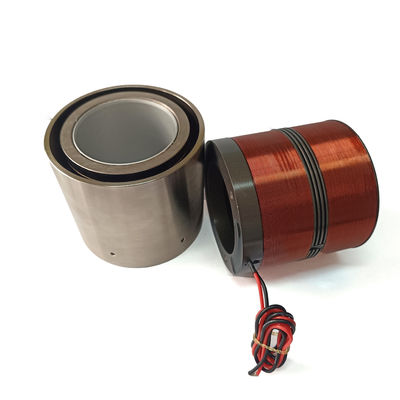

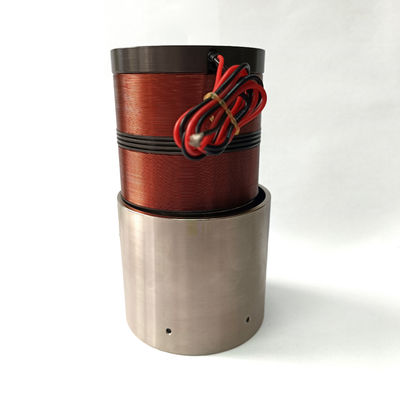

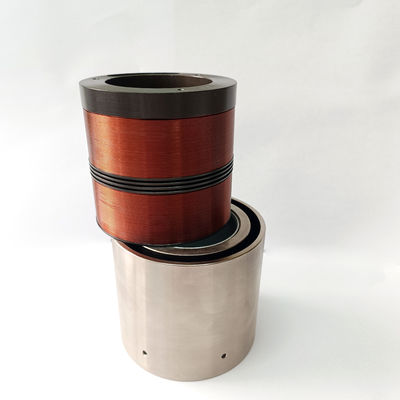

High Precision Inner Through-Hole Voice Coil Motor For Visual Imaging Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAD Series |
| Minimum Order Quantity | ≥2 |
| Price | $95 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise Level | Low | Speed | High Speed |
|---|---|---|---|
| Shaft Diameter | 20mm | Motor Type | Hollow Core Motor |
| Protect Feature | Totally Enclosed | Mounting Method | Flange |
| Insulation Class | F | Voltage | 17V |
| Highlight | 20mm Shaft Rotary Voice Coil Actuator,20mm Shaft Small Coreless Motor,Small Coreless Motor Ambient Temperature 40C |
||
Product Description
Coreless 20mm Shaft Rotating Motor Ambient Temperature 0-40℃ High-Precision
Product Description:
Hollow Core Motor is an internal power motor with a flange mounting method, rated frequency of 100Hz, maximum travel of 16mm, voltage of 17V and insulation class of F. It has a coreless design which makes it lightweight and highly efficient. Its hollow core design also makes it much more durable than other internal power motors, allowing for a long service life. It has a high torque output and is able to handle high loads with ease. It also has a low noise level which makes it suitable for many environments. With its performance and reliability, Hollow Core Motor is the perfect solution for a variety of applications.
Features:
- Product Name: Hollow Core Motor
- Mounting Method: Flange
- Rated Frequency: 100Hz
- Motor Type: Hollow Core Motor
- Cooling Method: Air Cooling
- Ambient Temperature: 0-40℃
- Coreless Internal Motor
- Inner Throught-Hole voice coil motor
Technical Parameters:
| Attribute | Value |
|---|---|
| Cooling Method | Air Cooling |
| Insulation Class | F |
| Rated Power | 2500N |
| Motor Type | Hollow Core Motor |
| Coil Length (mm) | 51mm |
| Peak Force | 75N |
| Rated Frequency | 100Hz |
| Product model | VCAD0075-0160-00A |
| Maximum travel (mm) | 16 |
| Noise Level | Low |
| Coreless Power Motor | Yes |
| Coreless Internal Motor | Yes |
| Inner Throught-Hole voice coil motor | Yes |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Applications:
SUPT VCAD Series Hollow Core Motor
The SUPT VCAD Series Hollow Core Motor is an Inner Throught-Hole voice coil motor. It is manufactured by the company SUPT, located in Jiangsu, China. This product has been certified with the ISO9001 standard, and has a minimum order quantity of ≥2. It has a price of $95, and is usually packaged in Carton Packaging. Delivery time for this product typically ranges general 5-7 days delivery, fast 3-5 days, bulk to be negotiated, Payment terms for this product are T/T, and the supply ability is based on an interview. This motor is air cooled, and has a rated power of 2500N with a shaft diameter of 20mm. Additionally, it can work in ambient temperatures ranging from 0-40℃.
