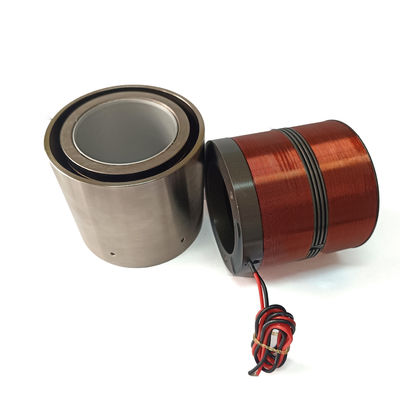

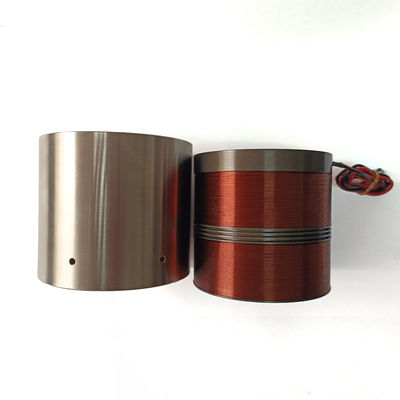

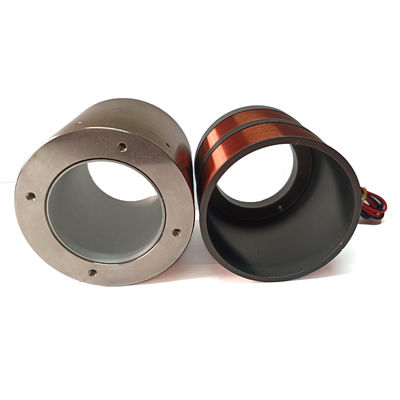

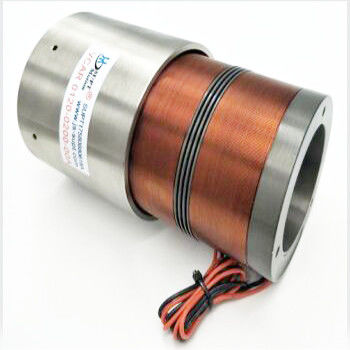

High Precision Low Noise Small Hollow Motor Voice Coil Motor For Vision Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0120-0020-00A |
| Minimum Order Quantity | ≥1 |
| Price | $240.00/pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, 3D Printing, Microscope, Endoscope, Robot,Medical Ventilators, Optical Project, Laser Equipment |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | Current | Efficiency | IE 1 |
| Peak Force(N) | 120 | Maximum Travel(mm) | 20 |
| Voice Coil Motor(V) | 78.8 | Continuous Force(N) | 53.3 |
| Back EMF Constant(kb) | 31.8 | Applications | Semiconductor,Automation,Commercial,Medical, |
| Highlight | Low Noise Small Coreless Motor,High Precision 120N Small Coreless Motor,120N Music Studio Voice Coil Actuator |
||
Product Description
Long Life Small Music Studio Voice Coil Actuator Low Noise High-Precision
Product Description
Hollow Voice Coil Motors (VCMs) have a variety of applications in vision systems that utilize their high accuracy, high responsiveness, and wear-free characteristics. The main application of Voice Coil Motor in vision system is autofocus, which is widely used in the autofocus system of cameras and microscopes. By precisely controlling the movement of the lens set, the VCM is able to realize fast and accurate focusing to ensure clear images. In industrial production lines, vision inspection systems need to accurately position and scan product surfaces. Hollow voice coil motors are able to improve inspection accuracy and efficiency through their high precision and fast response capability. In cameras and smartphone cameras, hollow voice coil motors are used to compensate for hand tremors or other small movements.VCMs can quickly adjust the position of the lens or sensor to keep the image stable and reduce blurring.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
The hollow motor is a coreless rotary motor and a voice coil motor with internal through-holes, designed to provide high torque and coreless power motors. With a maximum stroke of 20 mm, a maximum voltage of 78V and a coil length of 53 mm, it is efficient and reliable. It has high response, high acceleration, low mass coil, no slot effect, and zero hysteresis. Simple structure, light weight, high frequency response, smooth operation characteristics, is also an ideal choice for precision positioning, a wide range of applications, widely used in optical scanning, positioning and autofocus systems, Its hollow design reduces power consumption and provides quieter operation.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Our Services
We are happy to assist a custom design.
Company Information
FAQ
voice coil motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
