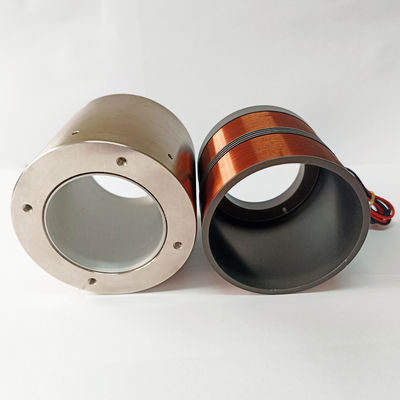

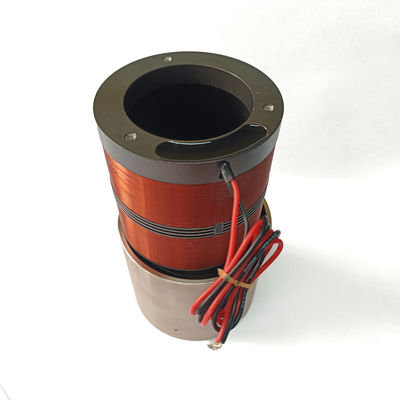

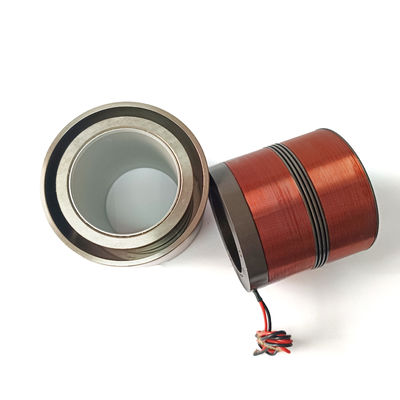

Low Noise Hollow Core Motor Low Power Consumption Micro Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAD Series |
| Minimum Order Quantity | ≥2 |
| Price | $95-$128 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peak Force | 75N | Maximum Travel(mm) | 16 |
|---|---|---|---|
| Enter The Length Of The Coil(mm) | 51mm | Product Model | VCAD0075-0160-00A |
| Rated Frequency | 100Hz | Motor Bearing Type | Ball Bearing |
| Motor Housing Material | Aluminum Alloy | Motor Insulation Class | F |
| Motor Shaft Diameter | 20mm | Motor Shaft Material | Stainless Steel |
| Motor Type | Hollow Core | Motor Weight | Light |
| Highlight | Low Noise Hollow Core Motor 75N,Hollow Core Motor Low Power Consumption,75N Low Noise Micro Voice Coil Actuator |
||
Product Description
Low Noise Hollow Core Motor With Low Power Consumption High Speed
Product Description:
Hollow Core Motor is a type of inner through-hole voice coil motor that has a hollow internal power generator. zero hysteresis. Simple structure, light weight, high frequency response,smooth operation. It is widely used in optical scanning, positioning ,and auto focusing systems.It is designed with low noise. It features a rated power of 2500N and a totally enclosed protection feature. This Hollow Core Motor is ideal for applications where high accuracy and high speed are required. It works best in applications where there is a need for a powerful, reliable, and efficient motor.
Features:
- Product Name: Hollow Core Motor
- Protect Feature: Totally Enclosed
- Mounting Method: Flange
- Enter the length of the coil(mm): 51mm
- Insulation Class: F
- Motor Type: Hollow Internal Motor
- Characteristics: Inner Throught-Hole voice coil motor, Coreless Rotating Motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Rated Frequency | 100Hz |
| Peak Force | 75N |
| Total Stroke | 16mm |
| Rated Power | 2500N |
| Motor Type | Hollow Core Motor |
| Continuous Force | 23N |
| Voltage | 33V |
| Noise Level | Low |
| Enter the length of the coil(mm) | 51mm |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Applications:
SUPT's VCAD Series inner through-hole voice coil motor is a hollow core power motor with superior performance. It is certified by ISO9001 and meets all quality standards. With a minimum order quantity of ≥2, the price is $95. It is packaged in a carton and will be delivered in general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T. The motor has a low noise level, F insulation class, and is totally enclosed. The length of the coil is 51mm. SUPT VCAD Series inner through-hole voice coil motor can meet all your needs.
It is widely used in optical scanning, positioning ,and auto focusing systems.
