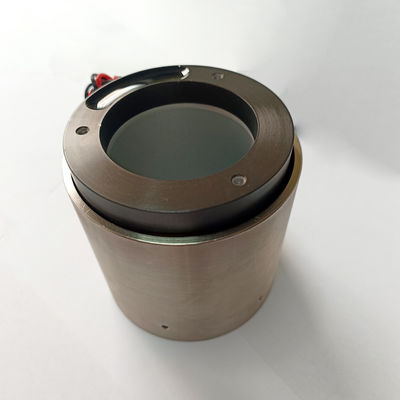

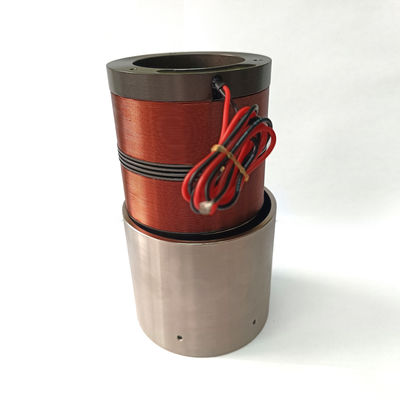

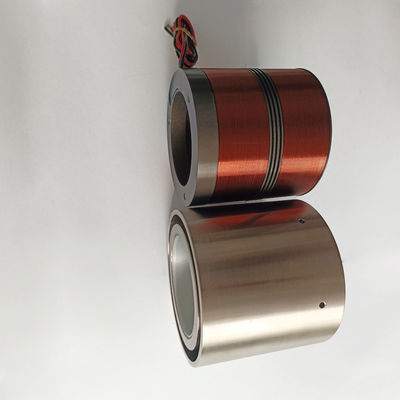

High Frequency Response Miniature DC Cylindrical Voice Coil Motors For Optical Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0262-0112-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $190.00/pieces |
| Packaging Details | carton & wooden box ac motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics, Optical Lens, Laser Equipment, Semiconductor, Medical Care |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 5.2 | Efficiency | IE 1 |
| Peak Force(N) | 262 | Maximum Travel(mm) | 24.9 |
| Ac Motor(V) | 28.2 | Weight Rotor(kg) | 740 |
| Stator Dia(mm) | 66 | Continuous Force(N) | 112 |
| Highlight | High Frequency Response Hollow Core Motor,Hollow Core Motor Strong VCM,Micro Motor Dc Cylindrical VCM |
||
Product Description
High Frequency Response Strong Micro Motor Dc Cylindrical Voice Coil Motor
Product Description
The micro DC cylindrical voice coil motor is a remarkable technological innovation designed to meet the precise motion control needs of modern micro and small devices. Its unique construction and functionality make it an ideal choice for various application fields.
This micro motor combines the reliability of DC motors with the accuracy of cylindrical voice coil technology. By applying electricity within a cylindrical coil, the current generates force in the magnetic field, thereby driving the linear motion of the cylindrical moving component. This design eliminates friction and deviation caused by traditional mechanical gears or transmissions, ensuring the accuracy and stability of motion.
The small size of the micro DC cylindrical voice coil motor makes it suitable for micro systems such as medical equipment, automated robots, optical instruments, etc. Its high response and fast control enable it to achieve high-precision motion in narrow spaces, such as precise positioning, sample processing, and beam adjustment.
Technical Parameters:
|
| Product Modle | Peak Force | Continious Force | Total Stroke | Max voltage | Back EMF Constant | Weight of the coil | StatorDiameter | Enter the length of the coil |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.9 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 51 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 75 | 58 | 72 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 95 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 45 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 170 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.4 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 130 | 73 | 27.5 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 275 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 740 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 700 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 640 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 770 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.3 | 37.3 | 38 | 29.8 | 1040 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 6305 | 254.9 | 14.5 | 104 | 1390 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 73.5 | 68 | 1050 | 110 | 143.7 |
Applications:
Hollow motor is a kind of coreless power motor with fully enclosed protection function. This product is a built-in power motor, hollow built-in motor, built-in through hole voice coil motor. The model is VCAR0262-0112-00A internal through hole voice coil motor, the stator diameter is 66mm, the maximum voltage is 28.2V. The motor is ideal for applications requiring high speed, high precision, high sensitivity, low current consumption, and it has the advantages of high response, high acceleration, low mass coil, no slot effect, zero hysteresis, etc. It has the characteristics of simple structure, light weight, high frequency response and smooth operation. It is widely used in robotics, medical devices and automation, optical scanning, positioning and autofocus systems. Hollow motors offer excellent durability and precision, making them a reliable choice for precision applications.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Packaging & Shipping
Company Information
FAQ
electric rotation motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
