Inner Through Hole Voice Coil Motor 16mm Travel 75N Miniature Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAD Series |
| Minimum Order Quantity | ≥2 |
| Price | $95 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 2500N | Product Model | VCAD0075-0160-00A |
|---|---|---|---|
| Protect Feature | Totally Enclosed | Motor Type | Hollow Core Motor |
| Insulation Class | F | Shaft Diameter | 20mm |
| Peak Force | 75N | Maximum Travel(mm) | 16 |
| Highlight | Inner Through Hole Voice Coil Motor 16mm,16mm Miniature Voice Coil Actuator,75N Miniature Voice Coil Actuator |
||
Product Description

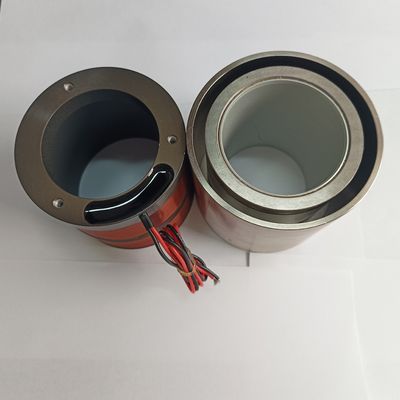

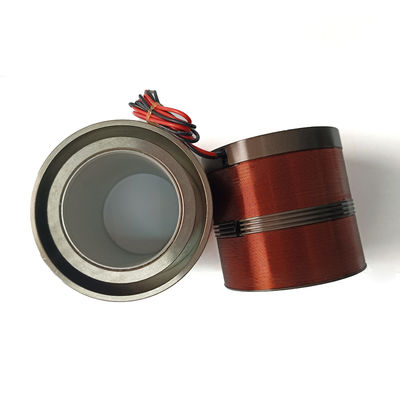

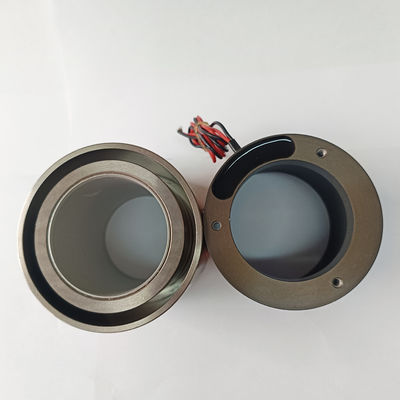

Inner Through-Hole Voice Coil Motor 16mm Travel 75N Peak Force
Product Description:
The Hollow Internal Motor is simple structure, light weight, high frequency response,High response, high acceleration, low mass coil.No cogging effect,zero hysteresis,smooth operation.
This product is an Internal Power Motor, Hollow Internal Motor, Inner Throught-Hole voice coil motor. It has a mounting method with a flange and a voltage of 17V. The motor a low noise level and a shaft diameter of 20mm.
Features:
- Product Name: Hollow Core Motor
- Insulation Class: F
- Rated Frequency: 100Hz
- Motor Type: Coreless Internal Motor, Inner Throught-Hole voice coil motor, Coreless Power Motor
- Enter the length of the coil(mm): 51mm
- Protect Feature: Totally Enclosed
Technical Parameters:
| Item | Value |
|---|---|
| Motor Type | Hollow Core Motor |
| Length of the coil(mm) | 51mm |
| Noise Level | Low |
| Rated Frequency | 100Hz |
| Maximum travel(mm) | 16mm |
| Protect Feature | Totally Enclosed |
| Continuous Force | 23N |
| Voltage | 17V |
| Rated Power | 2500N |
| Peak force | 75N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
Applications:
SUPT hollow core motor, model VCAD Series, is widely used in various operations due to its reliable performance and high quality. It is produced by our company located in Jiangsu, China, which is certified with ISO9001. The minimum order quantity is ≥2 with a price of $95. It is packaged in carton box, and the delivery time is general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. We accept terms of payment like T/T. Our production capacity is available for interview. It is made with insulation class F. The rated frequency is 100Hz, and the diameter of shaft is 20mm, and the voltage is 17V.
It is widely used in optical scanning, positioning ,and auto focusing systems.
