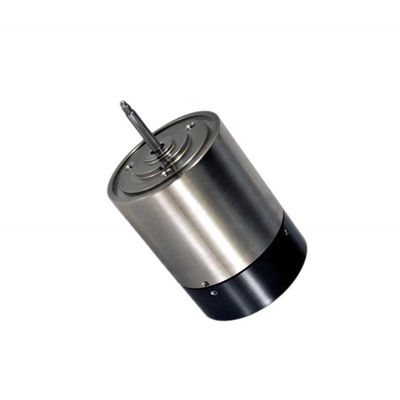

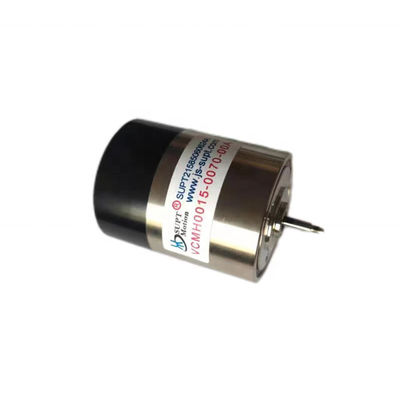

Actuator Precision Control With High Performance Motor For Medical Equipment

Product Description:

Precision voice coil motors for respirators with light weight motion coils and short response times. High precision wear-resistant optical shaft and miniature ball bearing system, flexible cable output. Low hysteresis force, low friction, good reliability.
The application of voice coil motors in precision medical equipment mainly utilizes their simple structure, smooth operation and high positioning accuracy. These motors are able to actively drive cylinder valves to realize high-frequency round-trip movements, thereby controlling the basic functions of the ventilator. In the medical field, voice coil motors are widely used in equipment such as ventilators, vibration isolation platforms, and micromotion platforms to ensure precise control and high performance of medical equipment.
Voice coil motors have an extremely fast response time, delivering air faster and more accurately to easily control exhalation patterns, improving the user experience and allowing patients to breathe easily and freely under any pressure.
Its high-performance motor drives not the speaker's horn, but the load in different applications. Force level adjustment and direction flip can be realized by changing the current level and direction, ensuring high precision, no wear and tear, and extended service life.
The high-performance motor exhibits great smoothness in operation, which is especially important for ventilator use, as it provides stable airflow control, thus ensuring stable and safe breathing for the patient.

Features:

1.4 The mass of the actuator coil is less than 15g, the response time is less than 20ms, the friction force is less than 50mn, and the hysteresis force is less than 40mn.

Product Parameters:

Application:
