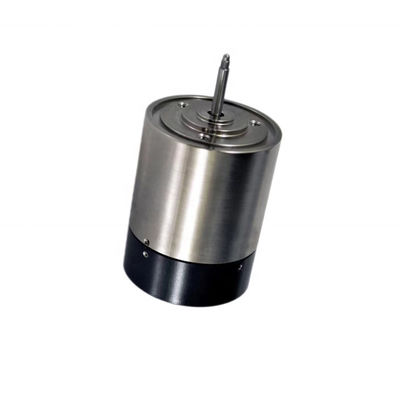

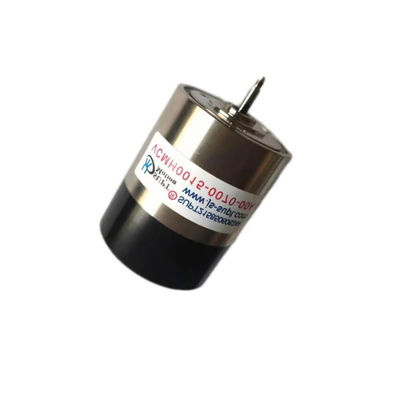

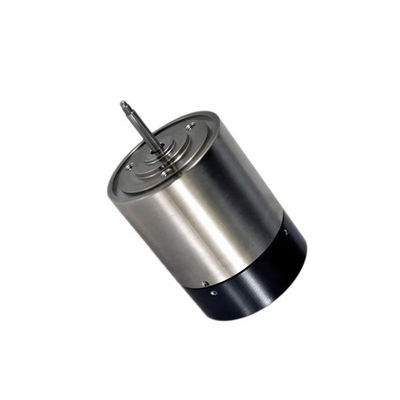

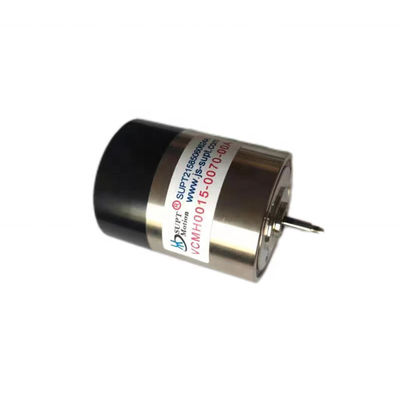

Respiratory Motor Haptic Feedback Motor 2.5A VCM Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCMH0015-0070-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $200.00/pieces |
| Packaging Details | carton & wooden box voice coil actuator |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 2.5A | Efficiency | IE 1 |
| Peak Force(N) | 15 | Maximum Travel(mm) | 7 |
| Micro Motor(V) | 11.5 | Weight Of Coil Assembly(g) | 13 |
| Actuator Weight(g) | 237 | Continuous Force(N) | 5.8 |
| Highlight | Respiratory Motor Haptic Feedback Motor,Haptic Feedback Motor 2.5A VCM,Moving Coil Actuator VCM |
||
Product Description
Haptic Feedback Drive Control Movement Motor Voice Coil Motor Respiratory Motor
Product Description
Breathing precision voice coil motors have unique applications in tactile feedback drive control. This technology achieves tactile feedback through the use of breathing movements, providing users with a more immersive and immersive experience.
Medical simulation:In medical training and simulation, respiratory precision voice coil motors can be used to simulate patients' physiological reactions, such as respiratory movements. Medical students and medical staff can experience the real breathing situation of simulated patients through tactile feedback, thereby improving training effectiveness and practical operational skills.
Applications:
The VCMH series high-performance actuator motor, with high speed (speed) and high frequency noise, light weight, short response time, low noise, high precision wear, no wear characteristics, due to its high speed, low noise level, this device will provide excellent performance and high reliability. Widely used in medical devices, medical ventilators, automated industries, commercial fields, laser equipment, etc., it is the perfect solution for any application requiring high output performance. The breathing precision voice coil motor is a linear motor with a shaft and a lightweight motion coil with short response time. High precision wear-resistant optical shaft and miniature ball bearing system, flexible output cable.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Our Services
We are happy to assist a custom design.
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
