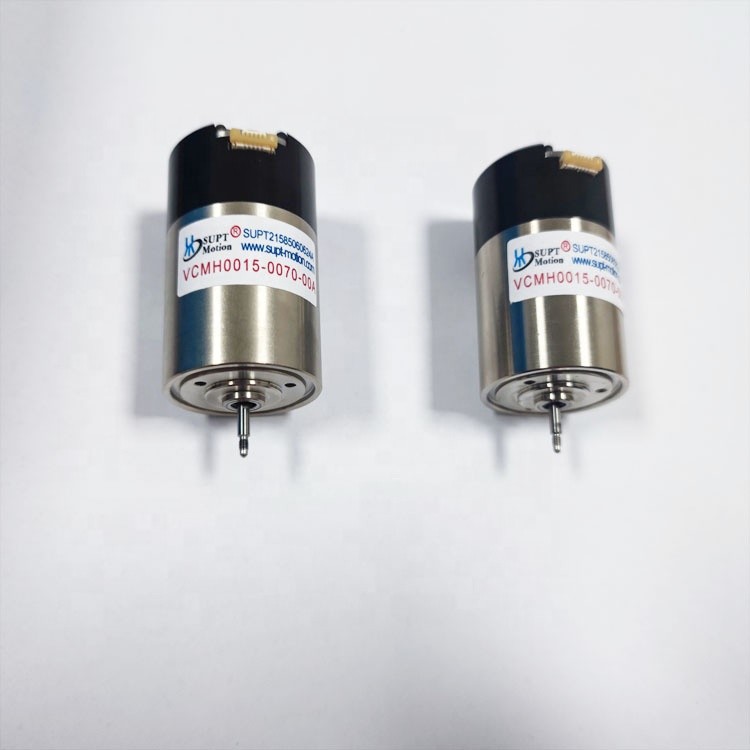

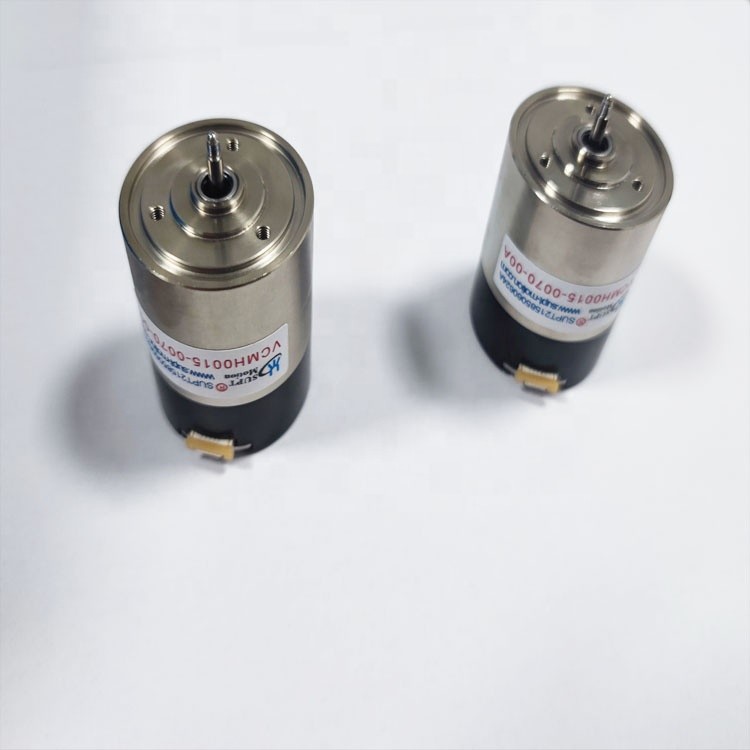

Light Weight High Performance Actuator Breathing Precision Micro Linear Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCMH0015-0070-00A |
| Minimum Order Quantity | ≥1 |
| Price | $200.00/pieces >=1 pieces |
| Packaging Details | in carton and as customer requirements<br>voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | Current | Efficiency | IE 1 |
| Peak Force(N) | 15 | Micro Motor(V) | 11.5 |
| Continuous Force(N) | 5.8 | Maximum Travel(mm) | 7 |
| Weight Of Coil Assembly(g) | 13 | Port | Shanghai Port |
| Highlight | High Performance Actuator,Breathing Precision Micro Linear Motor 15N,Micro Linear Motor Light Weight 15N |
||
Product Description
XY Axis Manual Precision Linear Stage Motor Light Weight High-Precision
Product Description
The VCMH series breathing precision voice coil motor is a linear motor with shaft, high precision wear resistant optical shaft and miniature ball bearing system, flexible cable output, with high speed (rotational speed) and superior protection, light weight, short response time, low noise, high precision wear resistance characteristics, making it a reliable and quiet choice for any application. Due to its high speed, high protection level and low noise level, this device is sure to provide excellent performance and reliability. Widely used in medical equipment, medical ventilators, automation industry, optical engineering, laser equipment and other fields, this advanced actuator is perfect for applications that require high output performance. It is the perfect solution for any application that requires high output performance.
Light weight motion coil, short response time. High precision wear-resistant optical shaft and micro ball bearing ,system, flexible cable output. Low hysteresis, low friction and good reliability, 1.4 The mass of moving coil is less than 15g, the response time is less than 20ms,the friction force is less than 50mn,and the hysteresis force is less than 40mm.
Technical Parameters:
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
