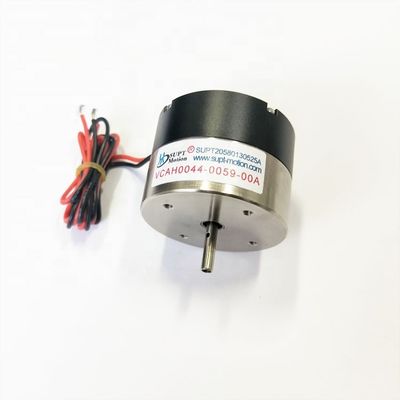

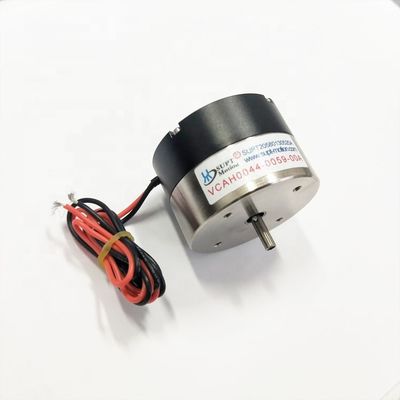

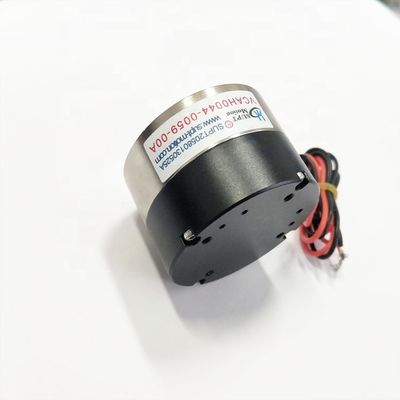

High Acceleration Voice Coil Motor Micro Electric Linear Actuator For Medical Pumps
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAR0044-0059-00A |
| Minimum Order Quantity | ≥1 |
| Price | $156.00/pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Microscope,Robot,Medical Ventilators,Optical Project,Laser Equipment |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 5.5A | Efficiency | IE 1 |
| Peak Force(N) | 44.1 | Maximum Travel(mm) | 5.9 |
| Robot Machine Motor(V) | 14.3 | Weight Rotor(kg) | 43 |
| Stator Dia(mm) | 46 | Continuous Force(N) | 17.7 |
| Highlight | High Acceleration Voice Coil Motor 5.5A,Voice Coil Motor For Medical Pumps,5.5A Micro Electric Linear Actuator |
||
Product Description
Custom High Acceleration Micro Motor Linear For Medical Pumps
Product Description
The application of micro linear motors in medical pumps can achieve precise liquid delivery and flow control, providing accurate drug delivery, fluid management, and treatment support in medical equipment. The following are the application methods of micro linear motors in medical pumps:
1. Drug delivery: Micro linear motors can be used to drive drug delivery pumps, ensuring accurate delivery of drugs to patients at predetermined doses and rates. The high precision and controllability of the motor make drug delivery more accurate and reliable.
2.Fluid Control: In medical pumps, precise control of fluid flow and pressure is required. Micro linear motors can drive fluid valves or pistons to achieve precise adjustment of flow and pressure to meet different treatment needs.
3. Extracorporeal circulation equipment: In extracorporeal circulation equipment, miniature linear motors can be used to drive circulation pumps to maintain blood flow and oxygenation in patients, such as maintaining blood circulation in the body during heart surgery.
4. Respiratory treatment equipment: In respiratory treatment equipment, micro linear motors can be used to control the airflow of the ventilator, achieve adjustment of respiratory frequency and tidal volume, and help patients maintain normal breathing.
5. Infusion equipment: Micro linear motors can be used to control the infusion pump, ensuring accurate flow and rate of liquid during the infusion process to avoid excessive or insufficient flow.
6. Venous blood collection: In venous blood collection, micro linear motors can be used to control blood collection equipment and achieve accurate blood collection process.
7. Liquid medicine mixing: Micro linear motors can be used to control liquid medicine mixing equipment, ensuring full mixing of drugs and solutions to obtain the correct drug ratio.
Applications:
High-performance advanced voice coil actuator motor is designed to provide high output performance of any application, is a dc motor, to ensure reliable and consistent performance. It has light weight, short response time, high precision,
Low hysteresis, low friction, good reliability. With a 1 year warranty, you can guarantee exceptional performance and durability. Widely used in yachts, automobiles, electric bicycles, microscopes, robotics, medical ventilators, optical engineering, laser equipment, this advanced actuator is perfect for applications that require high output performance. With its advanced actuator performance and reliable voltage, you can trust the results it delivers.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
