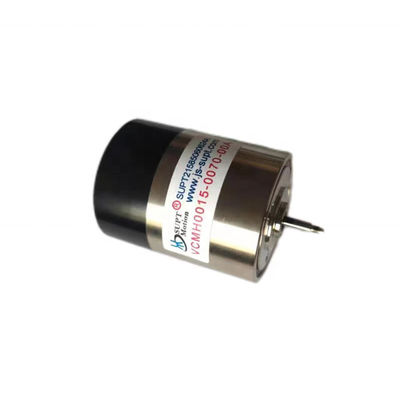

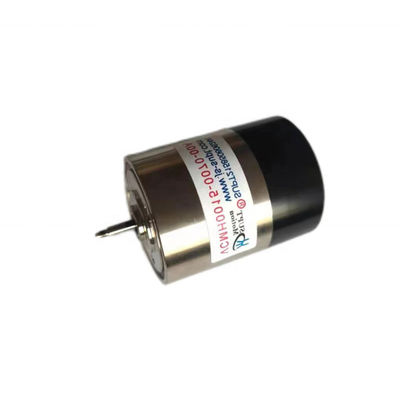

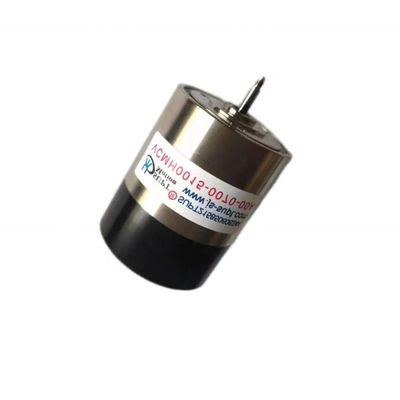

High Response High Performance Actuator Light Weight Voice Coil Motors Biomedical Project
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $160.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box electric motors |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month electric motorselectric motors |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 5.8A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 7.5 |
| Voice Coil Motor(V) | 16.8 | Weight Rotor(kg) | 38.6 |
| Stator Dia(mm) | 31.1 | Continuous Force(N) | 13.7 |
| Port | Shanghai Electric Motors | ||
| Highlight | High Response High Performance Actuator VCM,Light Weight Electric Motors vcm,Light Weight Electric Motors Biomedical Project |
||
Product Description
High Response Light Weight Electric Motors For Biomedical Project
Product Description
The lightweight voice coil motors used in biomedical projects typically have superior performance to meet the requirements of high precision, low noise, and reliability in the medical field. The following are the performance characteristics of lightweight voice coil motors in biomedical projects:
1. High precision positioning: Lightweight voice coil motors can achieve highly accurate position control in biomedical projects. This is crucial for tasks that require precise positioning such as liquid distribution, cell manipulation, and drug delivery.
2. Low noise operation: In medical environments, noise can interfere with the accuracy of patients or experiments. Lightweight voice coil motors are typically designed for low noise operation to ensure silent operation in medical projects.
3. Quick Response: Biomedical projects may require fast motion response, such as rapid and accurate position adjustment during cell operations. The fast response performance of lightweight voice coil motors makes them very suitable for these needs.
4. Smooth motion: Some medical applications require smooth motion to avoid damage to the sample or organism. Lightweight voice coil motors typically achieve smooth motion and are suitable for scenarios that require precise control.
5. Reliability and Long Life: In the field of biomedicine, the reliability of equipment is crucial. Lightweight voice coil motors are usually designed for durability and reliability to meet the long-term usage needs of medical projects.
6. Compact Design: Biomedical devices typically require operation in limited space, and the compact design of lightweight voice coil motors makes them suitable for medical devices with limited space.
7. Integration capability: Lightweight voice coil motors can usually be integrated with various control systems and sensors to achieve closed-loop control and precise position feedback.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
The breathing precision voice coil motor has light weight and short response time. High precision abrasion resistant optical axis and micro ball bearing, system, output flexible cable. The response time is less than 20ms, the friction force is less than 50mn, and the lag force is less than 40mn. It is widely used in medical treatment, yacht, automobile, electric bicycle, UAV, robot, medical respirator, microscope and optical system. Whether you need to move a part quickly or accurately, this high-performance motor is your best bet.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
