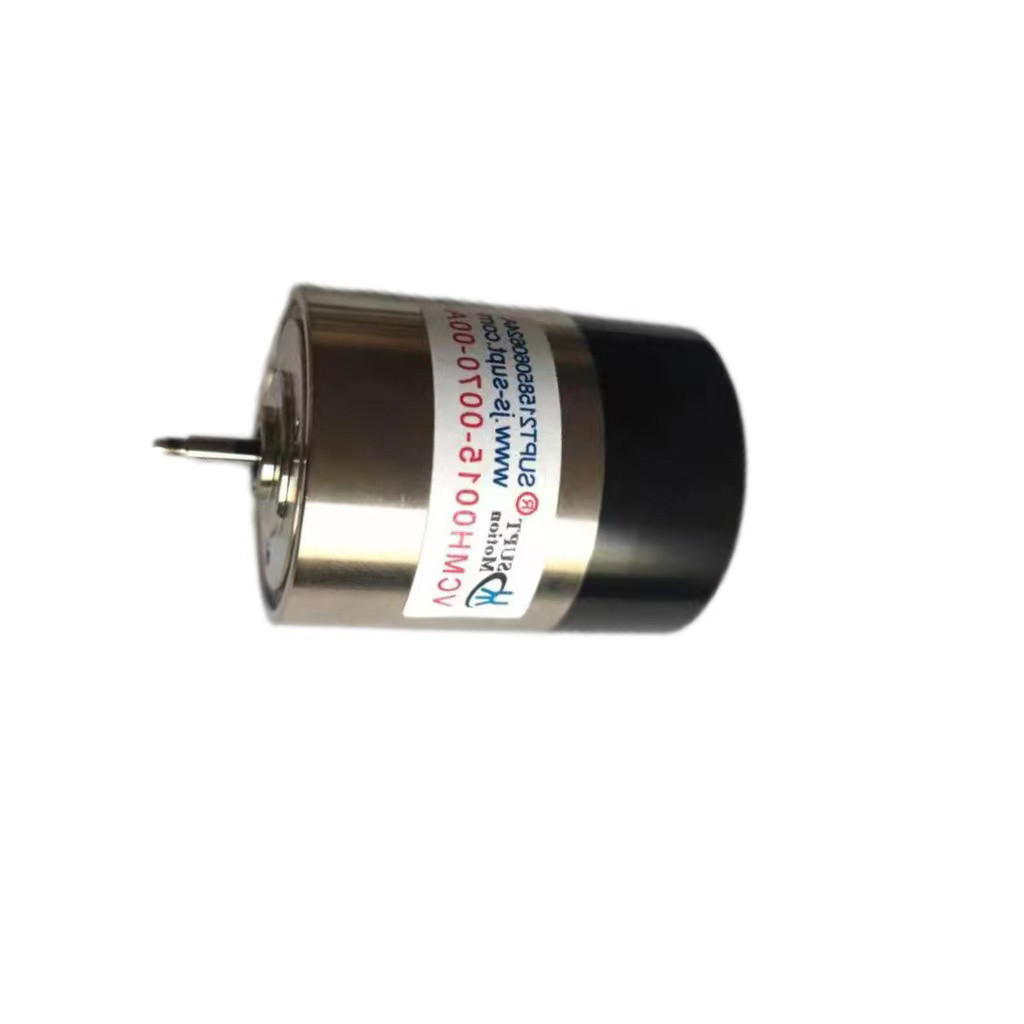

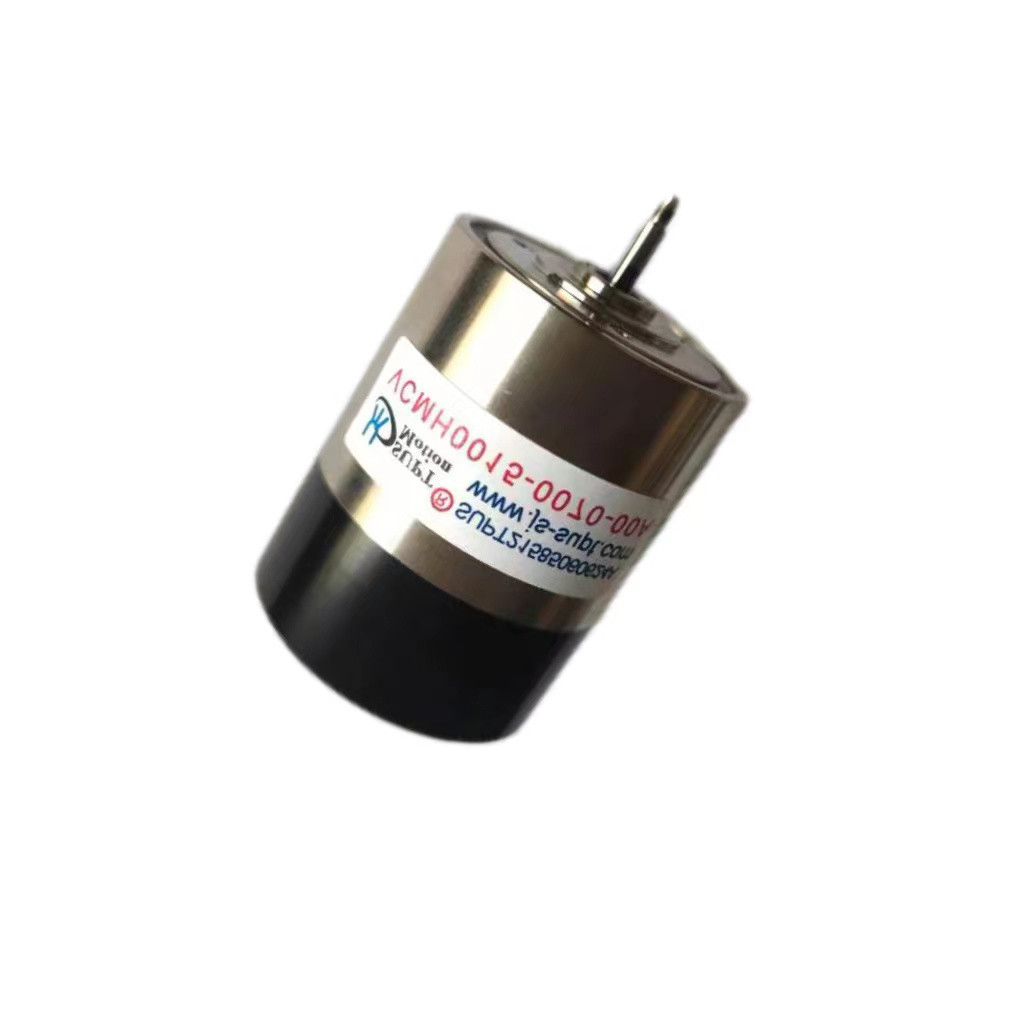

11.5V Breathing Precision High Performance Actuator Voice Coil Motor
| Place of Origin | Suzhou china |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCMH Series |
| Minimum Order Quantity | 3 PCS |
| Price | $240 |
| Packaging Details | carton packaging ect. |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | Light | Power | 2500N |
|---|---|---|---|
| Batch Number | YET-YQDJ62 | Voltage | 11.5V |
| Rpm | 100rpm | Life Span | >50000h |
| Noise | <50dB | Position Accuracy | 0.1° |
| Power Supply | DC | Pressure Range | 0-10 Bar |
| Product Name | High Performance Actuator | Response Time | 0.1s |
| Speed | 0-3000rpm | ||
| Highlight | Breathing Precision High Performance Actuator VCM,Winding Machine Voice Coil Motor,High Performance Actuator VCM Winding Machine |
||
Product Description
Breathing Precision Motor Winding Machine Voice Coil Motor Custom High Sensitivity Small Volume Low Noise
Product Description:
Precision voice coil motor for respirator, light weight motion coil, short response time. High precision wear-resistant optical shaft and miniature ball bearing system, flexible cable output. Low hysteresis force, low friction, good reliability.
1.4 The mass of the actuator coil is less than 15g, the response time is less than 20ms, the friction force is less than 50mn, and the hysteresis force is less than 40mn.
The breathing precision voice coil motor is a linear motor with a shaft and a lightweight motion coil with short response time. High precision wear-resistant optical shaft and miniature ball bearing system, flexible output cable. Low hysteresis force, low friction, good reliability, no wear. Usually used in medical equipment, medical ventilators, automation equipment, etc., light weight, short response time, friction less than 50mm, hysteresis force less than 40mm,It is no need to high output performance of the application of the perfect solution.It is widely used in boat, Car, medical respirator, microscope, optics, optical lens, laser equipment.
It is used in medical devices for two main purposes:
Ventilators: for precise control of respiratory airflow and pressure to provide fine respiratory support.
Imaging equipment: e.g. MRI, CT, etc. for precise control of detector or lens position.
Features:
- Product Name:High Performance Actuator
- Voltage: 11.5V
- Resolution: High
- Type: Micro Output Shaft Motor
- Material: Aluminum Alloy
- Ventilator Precision Voice Coil Actuator
Technical Parameters:
| Winding constant | TOL | SYM | VALUE | UNIT |
| D.C resistance | ±10% | R | 4.6 | Ω |
| Yoltage @ Fo | NORMAL | Vp | 11.5 | V |
| Current © Fp | NORMAL | Ip | 2.5 | A |
| Force constant | ±10% | Kf | 5.6 | N/A |
| Back EME_Constant | NORMAL | Kb | 5.6 | V/M/Sec |
| Inductance | ±30% | L | 0.74 | mH |
| Actuator parameters | SYM | VALUE | UNIT | |
| Peak force | Fp | 15 | N | |
| Cantinuous force | FC | 5.8 | N | |
| Actuator constant | Ka | 2.6 | NNW | |
| Electrical time constant | Te | 0.16 | milli-sec | |
| Power @ Fp | Pp | 28 | W | |
| Total stroke | s | 7 | mm | |
| Friction | Ff | <30 | mN | |
| Thecnal resistance | Ѳth | 6.9 | ℃/W | |
| Max winding temp | Tmax | 150 | ℃ | |
| Weight of coil assembly | WTc | 13 | g | |
| Weight of magnet assembly | WTf | 224 | g | |
| Actuator weight | WTg | 237 | g | |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
