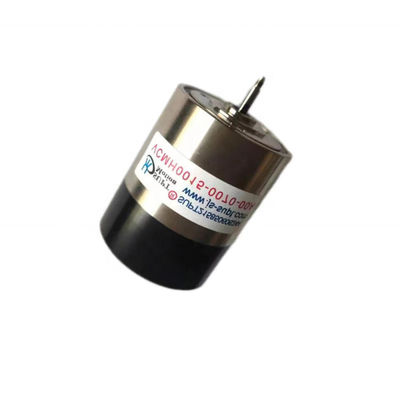

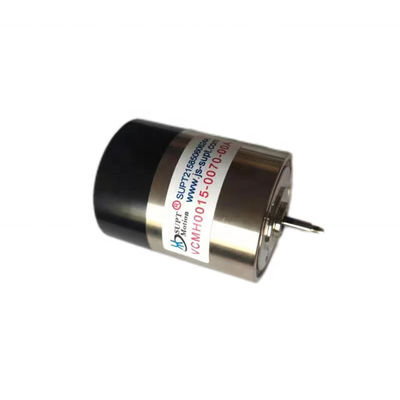

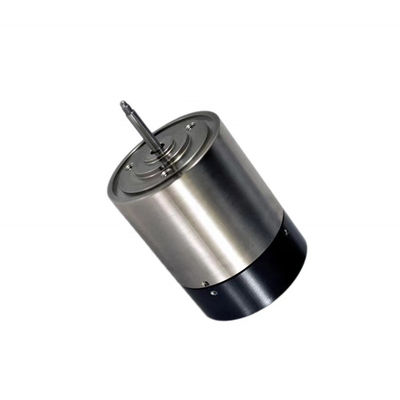

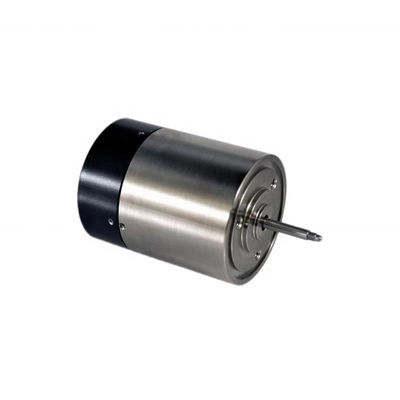

Miniature Voice Coil Linear Actuator For Permanent Magnet Motors For 3D Printers
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCMH0015-0070-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $200.00/pieces |
| Packaging Details | carton & wooden box voice coil actuator |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 2.5A | Efficiency | IE 1 |
| Peak Force(N) | 15 | Maximum Travel(mm) | 7 |
| Micro Motor(V) | 11.5 | Weight Of Coil Assembly(g) | 13 |
| Actuator Weight(g) | 237 | Continuous Force(N) | 5.8 |
| Highlight | Gantry Robot Permanent Magnet Motor Vcm,Permanent Magnet Motor Vcm 4 Axis,Vcm 4 Axis Mini Linear Actuator |
||
Product Description
Gantry Robot XYZ Slide Table Linear Rails 4-Axis Linear Motor For CNC 3D Printer Kit
Product Description
Multi axis linear motors have important applications in the CNC industry and 3D printing, playing a crucial role in achieving precise motion control, improving production efficiency, and manufacturing complex structures.
Application in 3D printing:
1. Multi material printing: The multi axis linear motor in 3D printing can achieve precise stacking and stacking of multiple materials to print objects with various properties.
2. Complex Structure Printing: The high-precision control ability of the multi axis linear motor allows 3D printing to produce more complex structures and details, such as support structures, hollow parts, etc.
3. Multi axis Motion: In 3D printing, the multi axis control capability of a multi axis linear motor can achieve complex motion paths to create unique geometric shapes.
4. High precision printing: The precise control ability of the multi axis linear motor enables 3D printing to achieve higher printing accuracy and produce finer objects.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
The breathing precision voice coil motor has light weight and short response time. High precision abrasion resistant optical axis and micro ball bearing, system, output flexible cable. 1.4 the moving coil mass is less than 15g, the response time is less than 20ms, the friction force is less than 50mn, and the lag force is less than 40mn.
Our Services
We are happy to assist a custom design.
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
