Electric High Performance Actuator VCM Long Life High Efficiency Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001,CCC.CE |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $129 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection | IP67 | Peak Force | 15N |
|---|---|---|---|
| Life | Long | Name | High Performance Actuator |
| Actuator Constant | 2.6N/W | Material | Aluminum Alloy |
| Noise | Low | Total Stroke | 7mm |
| Product Model | VCMH0015-0070-00A | ||
| Highlight | Electric High Performance Actuator VCM,High Performance Actuator VCM Long Life,VCM Long Life High Efficiency Motor |
||
Product Description
High Frequency Response Electric Long Life High-Efficiency Motor
Product Description:

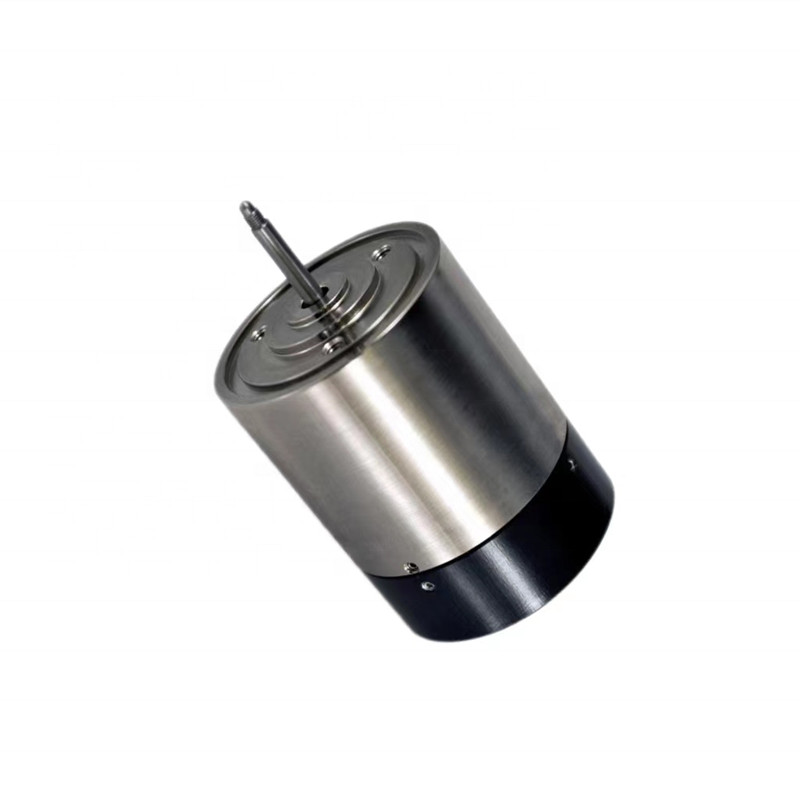

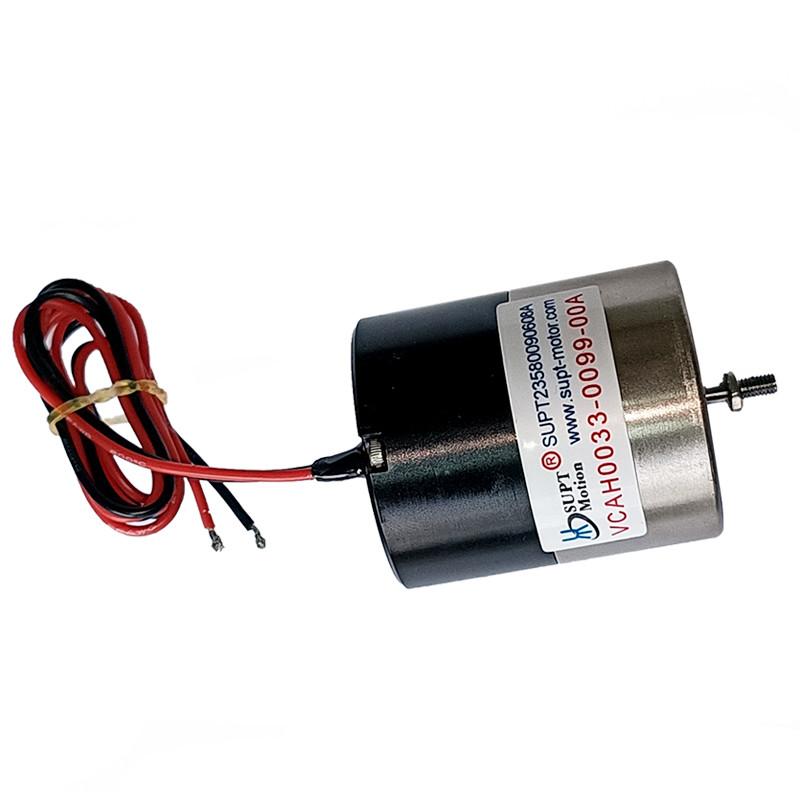

High Performance Actuator
Introducing the latest innovation in motor engineering - the High Performance Actuator! With its amazing 2.6N/W Motor Constant, this electric actuator is designed to offer high-precision, high-speed, and high-stability motion control. The Motor has a total stroke of 7mm and low noise, ensuring that it is both powerful and silent. Whether you need to move a part quickly or precisely, this high-performance motor is your best choice.
Light weight motion coil, short response time. High precision wear-resistant optical shaft and micro ball bearing system, flexible cable output. Low hysteresis, low friction and good reliability, 1.4 The mass of moving coil is less than 15g, the response time is less than 20ms,the friction force is less than 50mn,and the hysteresis force is less than 40mn.
Features:
- High-Efficiency Actuator: High Performance Actuator is an advanced electric actuator with high efficiency and long life.
- Advanced Actuator: High Performance Actuator is an advanced actuator with high precision and low noise.
- High-Precision Actuator: High Performance Actuator is a high-precision actuator with low resistance and light weight.
- Type: Electric
- Life: Long
- Noise: Low
- Weight: Light
- Resistance: DC
Technical Parameters:
| Name | High Performance Actuator |
|---|---|
| Type | Electric |
| Weight | Light |
| Resistance | DC |
| Life | Long |
| Peak Force | 15N |
| Protection | IP67 |
| Actuator Constant | 2.6N/W |
| Total Stroke | 7mm |
| Speed | High Speed (rpm) |
| Winding constant | TOL | SYM | VALUE | UNIT |
| D.C resistance | ±10% | R | 4.6 | Ω |
| Yoltage @ Fo | NORMAL | Vp | 11.5 | V |
| Current © Fp | NORMAL | Ip | 2.5 | A |
| Force constant | ±10% | Kf | 5.6 | N/A |
| Back EME_Constant | NORMAL | Kb | 5.6 | V/M/Sec |
| Inductance | ±30% | L | 0.74 | mH |
| Actuator parameters | SYM | VALUE | UNIT | |
| Peak force | Fp | 15 | N | |
| Cantinuous force | FC | 5.8 | N | |
| Actuator constant | Ka | 2.6 | NNW | |
| Electrical time constant | Te | 0.16 | milli-sec | |
| Power @ Fp | Pp | 28 | W | |
| Total stroke | s | 7 | mm | |
| Friction | Ff | <30 | mN | |
| Thecnal resistance | Ѳth | 6.9 | ℃/W | |
| Max winding temp | Tmax | 150 | ℃ | |
| Weight of coil assembly | WTc | 13 | g | |
| Weight of magnet assembly | WTf | 224 | g | |
| Actuator weight | WTg | 237 | g | |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
