2.6N High Performance Actuator High Speed Actuator With Advanced Control Parameters
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001,CCC.CE |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $129 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | High Speed (rpm) | Resistance | DC |
|---|---|---|---|
| Actuator Constant | 2.6N/W | Voltage | 43V |
| Noise | Low | Life | Long |
| Total Stroke | 12mm | Peak Force(N) | 253 |

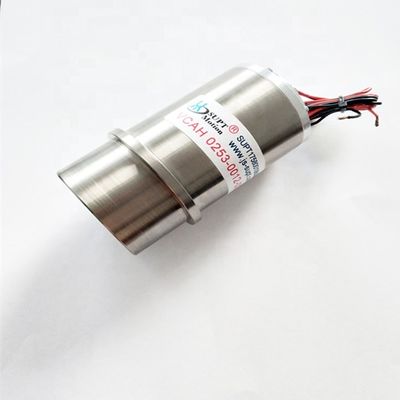

| Model Number | VCAH0253-0120-00A | ||
| Highlight | 2.6N High Performance Actuator,High Performance Actuator 24V,High Speed Actuator Advanced Control Parameters |
||
Product Description

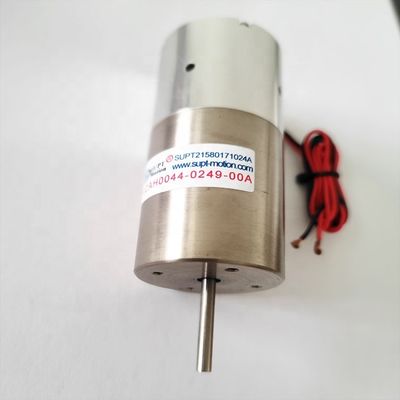

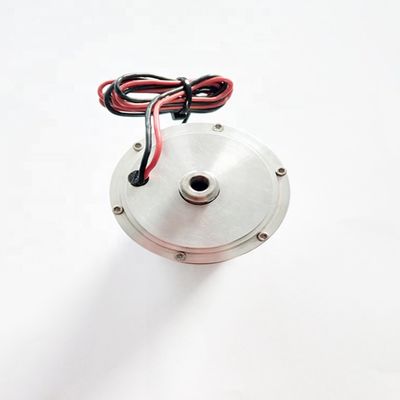

High-Speed Actuator With Advanced Control Parameters Light Weight
Product Description:
The linear voice coil motor of the VCAH series is a special direct-drive motor characterized by high frequency, short response time, light weight and high performance, providing high speed and strong DC impedance. The voice coil motor has a built-in kinematic shaft and precision linear bearings, and is made of lightweight, stiff, and wear-resistant quality materials. It is ideal for applications requiring high output and durability. It is widely used in semiconductor, precision test and inspection, and valve flow control areas.
Features:
- Product Name: High Performance Actuator
- Weight: Light
- Voltage: 43V
- Peak Force: 253N
- Material: Aluminum Alloy
- High-Precision Actuator: Yes
- High-Speed Actuator: Yes
- Advanced Actuator: Yes
Technical Parameters:
| Name | High Performance Actuator |
|---|---|
| Material | Aluminum Alloy |
| Life | Long |
| Type | Electric |
| Total Stroke | 12mm |
| Speed | High Speed (rpm) |
| Protection | IP67 |
| Voltage | 43V |
| Noise | Low |
| Actuator Constant | 2.6N/W |
| Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
| Winding constant | TOL | SYM | VALUE | UNIT |
| D.C resistance | ±10% | R | 4.6 | Ω |
| Yoltage @ Fo | NORMAL | Vp | 11.5 | V |
| Current © Fp | NORMAL | Ip | 2.5 | A |
| Force constant | ±10% | Kf | 5.6 | N/A |
| Back EME_Constant | NORMAL | Kb | 5.6 | V/M/Sec |
| Inductance | ±30% | L | 0.74 | mH |
| Actuator parameters | SYM | VALUE | UNIT | |
| Peak force | Fp | 15 | N | |
| Cantinuous force | FC | 5.8 | N | |
| Actuator constant | Ka | 2.6 | NNW | |
| Electrical time constant | Te | 0.16 | milli-sec | |
| Power @ Fp | Pp | 28 | W | |
| Total stroke | s | 7 | mm | |
| Friction | Ff | <30 | mN | |
| Thecnal resistance | Ѳth | 6.9 | ℃/W | |
| Max winding temp | Tmax | 150 | ℃ | |
| Weight of coil assembly | WTc | 13 | g | |
| Weight of magnet assembly | WTf | 224 | g | |
| Actuator weight | WTg | 237 | g | |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
