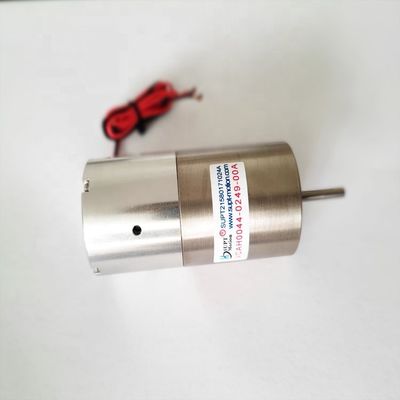

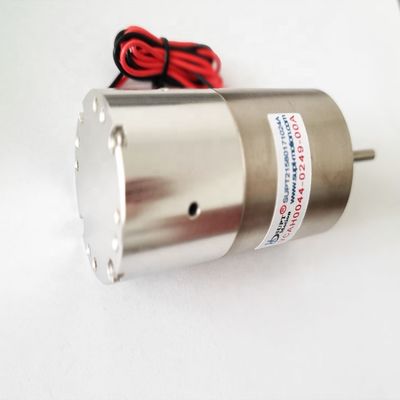

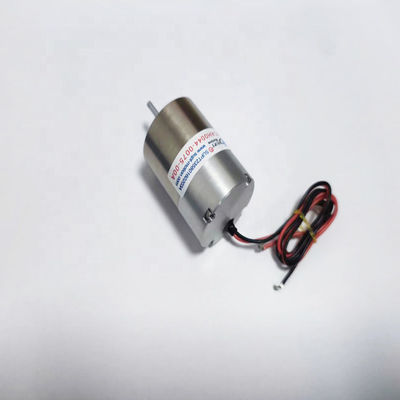

High Frequency Response High Power Actuator Long Life Voice Coil Motor 15N Peak Force
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001,CCC.CE |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $118 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Performance Actuator | Weight | Light |
|---|---|---|---|
| Life | Long | Type | Electric |
| Total Stroke | 7mm | Speed | High Speed (rpm) |
| Actuator Constant | 2.6N/W | Product Model | VCMH0015-0070-00A |
| Input Voltage | 11.5V | ||
| Highlight | High Frequency Response High Power Actuator,High Power Actuator Long Life vcm,Voice Coil Motor 15N Peak Force |
||
Product Description
High Frequency Response Long Life 15N Peak Force High Performance Actuator
Product Description:
High Performance Actuator
The advanced actuator is designed to deliver high-output performance for any application, whatever the voltage. The 24V resistance is DC, ensuring reliable and consistent performance. The actuator constant of 2.6N/W provides an increased actuation force output, while the total stroke of 7mm ensures a wide range of motion. Thanks to the 1 year warranty, you can be sure of exceptional performance and durability.
The VCMH Series advanced actuator is ideal for a variety of applications such as high-precision machinery and automation processes. It is capable of providing high-performance and efficient operation for a range of industrial applications. The advanced actuator can be used in high-precision machines, robotics, and motion control systems. Its robust design and reliable construction make it suitable for a wide range of environments.
The VCMH Series can also be used in medical and military applications. Its high-precision and high-performance make it an ideal choice for applications that require precise and reliable movement.
Features:
- High-Output Actuator: High Performance Actuator with Peak Force of 15N.
- High-Power Actuator: High Performance Actuator with DC Resistance and Low Noise of ≤50dB.
- High-Efficiency Actuator: High Performance Actuator with IP67 Protection and Long Life.
Technical Parameters:
| Name | High Performance Actuator |
|---|---|
| Type | Electric |
| Protection | IP67 |
| Total Stroke | 7mm |
| Life | Long |
| Actuator Constant | 2.6N/W |
| Noise | Low |
| Speed | High Speed (rpm) |
| Peak Force | 15N |
| Resistance | DC |
| Winding constant | TOL | SYM | VALUE | UNIT |
| D.C resistance | ±10% | R | 4.6 | Ω |
| Yoltage @ Fo | NORMAL | Vp | 11.5 | V |
| Current © Fp | NORMAL | Ip | 2.5 | A |
| Force constant | ±10% | Kf | 5.6 | N/A |
| Back EME_Constant | NORMAL | Kb | 5.6 | V/M/Sec |
| Inductance | ±30% | L | 0.74 | mH |
| Actuator parameters | SYM | VALUE | UNIT | |
| Peak force | Fp | 15 | N | |
| Cantinuous force | FC | 5.8 | N | |
| Actuator constant | Ka | 2.6 | NNW | |
| Electrical time constant | Te | 0.16 | milli-sec | |
| Power @ Fp | Pp | 28 | W | |
| Total stroke | s | 7 | mm | |
| Friction | Ff | <30 | mN | |
| Thecnal resistance | Ѳth | 6.9 | ℃/W | |
| Max winding temp | Tmax | 150 | ℃ | |
| Weight of coil assembly | WTc | 13 | g | |
| Weight of magnet assembly | WTf | 224 | g | |
| Actuator weight | WTg | 237 | g | |
Applications:
SUPT MOTION's VCMH Series advanced actuator features high-precision and high-performance in a wide range of applications. The VCMH Series is certified for ISO9001,CCC.CE and has a minimum order quantity of 1. The price is $118 and comes with carton packaging. Delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms are T/T. Supply ability is interview. The type is electric with voltage of 11.5V, high speed (rpm) and a 1 year warranty. The total stroke is 7mm.
The main application of Medical field:Micro-injection system, respiratory equipment, testing equipment.
