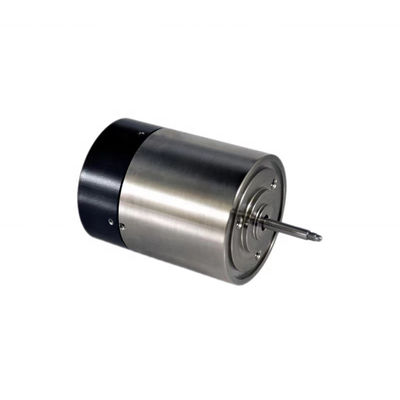

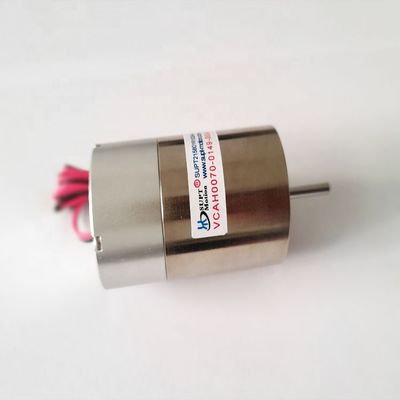

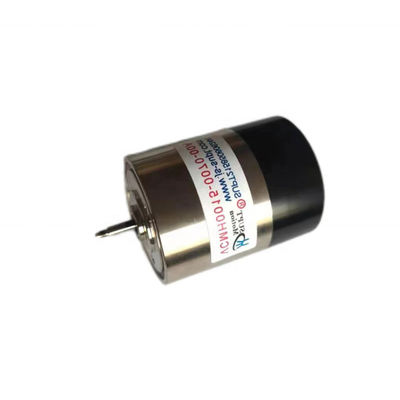

Low Noise High Precision Motor High Performance Actuator Used For Medical Equipment
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001,CCC.CE |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $136 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Life | Long | Warranty | 1 Year |
|---|---|---|---|
| Type | Electric | Name | High Performance Actuator |
| Speed | High Speed (rpm) | Weight | Light |
| Total Stroke | 7mm | ||
| Highlight | VCM 24v Electric Actuator,24v Electric Actuator Low Noise ≤50dB,220V Electric High Precision Actuator vcm |
||
Product Description
24V/110V/220V Electric High-Precision Actuator Low Noise ≤50dB
Product Description:
Our High-Power Actuator offers a superior combination of high-precision control and long life. With its IP67 rated protection and 7mm total stroke, this actuator is perfect for use in harsh environments. It is constructed of durable aluminum alloy and offers high speed (rpm) performance.
Features:
- High-Precision Actuator: High-precision actuators that can provide high accuracy and repeatability.
- Ventilator Precision Voice Coil Motor: High-speed and high-efficiency ventilator precision voice coil motor, which can provide faster and more precise motion.
- High-Efficiency Actuator: Lightweight and long life high-efficiency actuator, which can provide higher performance with lower power consumption.
- Speed: High speed (rpm).
- Weight: Light.
- Life: Long.
- Protection: IP67.
Technical Parameters:
| Property | Description |
|---|---|
| Noise | ≤50dB |
| Actuator Constant | 2.6N/W |
| Voltage | 24V/110V/220V |
| Life | Long |
| Speed | High Speed (rpm) |
| Resistance | DC |
| Peak Force | 15N |
| Weight | Light |
| Winding constant | TOL | SYM | VALUE | UNIT |
| D.C resistance | ±10% | R | 4.6 | Ω |
| Yoltage @ Fo | NORMAL | Vp | 11.5 | V |
| Current © Fp | NORMAL | Ip | 2.5 | A |
| Force constant | ±10% | Kf | 5.6 | N/A |
| Back EME_Constant | NORMAL | Kb | 5.6 | V/M/Sec |
| Inductance | ±30% | L | 0.74 | mH |
| Actuator parameters | SYM | VALUE | UNIT | |
| Peak force | Fp | 15 | N | |
| Cantinuous force | FC | 5.8 | N | |
| Actuator constant | Ka | 2.6 | NNW | |
| Electrical time constant | Te | 0.16 | milli-sec | |
| Power @ Fp | Pp | 28 | W | |
| Total stroke | s | 7 | mm | |
| Friction | Ff | <30 | mN | |
| Thecnal resistance | Ѳth | 6.9 | ℃/W | |
| Max winding temp | Tmax | 150 | ℃ | |
| Weight of coil assembly | WTc | 13 | g | |
| Weight of magnet assembly | WTf | 224 | g | |
| Actuator weight | WTg | 237 | g | |
Applications:
The SUPT MOTION VCMH Series High Performance Actuator is an electric actuator of superior quality and performance, with a brand name of SUPT MOTION, model number VCMH Series, and a place of origin in Jiangsu, China. It is certified with ISO9001, CCC.CE, and is available for a minimum order quantity of ≥1. The price is $136, and it is packaged in carton packaging etc. The delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, and bulk to be negotiated. Payment terms are T/T, and the supply ability is available for interview. This high-efficiency actuator is light in weight, and is suitable for 24V voltage. It is also provided with a 1-year warranty. It is specifically designed to provide high-speed and high-power performance in the most demanding environments. It is ideal for a wide range of applications including industrial automation, robotics, and medical equipment.
