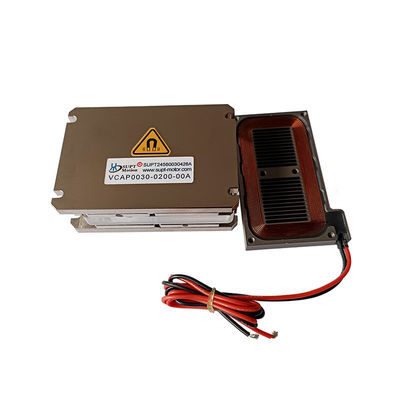

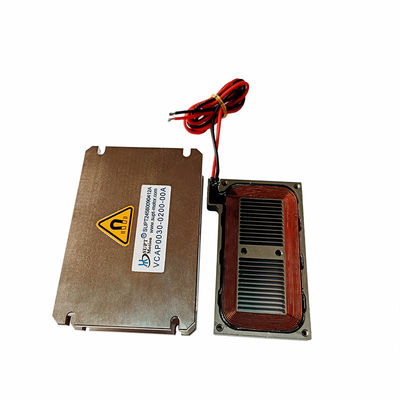

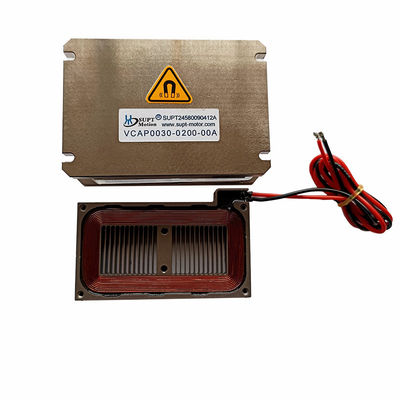

High Precision Coreless Mini Flat Linear Voice Coil Motors For Micro Machine Tool Industry
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | 2PCS |
| Price | $158 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Force Output | Up To 500N | Item | Mini Electric Motors |
|---|---|---|---|
| Port | Shanghai | Model Number | VCAP0020-0068-00A |
| Peak Force | 20N | Total Stroke | 6.8mm |
| Continuous Force | 5.3N | Max Voltage | 8.2V |
| Length (mm) | 39 | Protect Feature | Totally Enclosed |
| Speed(RPM) | Variable Speed | ||
| Highlight | High Precision Linear Voice Coil Motors,Coreless Linear Voice Coil Motors,Mini Linear Voice Coil Motors |
||
Product Description
Product Description:
The flat type voice coil motor series has a shorter stroke than the rectangular type series for the same size, but has the advantage of a lower height surface. Thrust is up to 500N and stroke is up to 20mm.
The flat type series is ideal for generating short travel X-Y motions and is marketed primarily to the semiconductor and micro-machine tool industries.
Flat linear voice coil motors are characterized by advantages such as high positioning accuracy, fast response, frictionless, compact structure, light weight, easy control, etc., which effectively enhance the precision and efficiency of micromachining.
Flat Linear Voice Coil Motors for applications in the miniature machine tool industry:
In micro-machining processes, flat linear voice coil motors can be used to drive the feed axes of tools or workpieces to achieve sub-micron feed control.
For example, in micro-hole machining, micro-engraving or surface texture generation, flat linear voice coil motors provide stable linear motion to avoid machining errors.
In micro-machining, the fast response capability of flat linear voice coil motors is used to adjust the position of the tool or workpiece in real time through high-precision vibration, actively compensating for vibration and ensuring stable machining.
Flat voice coil motor through the short stroke X-Y axis movement can be used as the key movement axis, drive the workpiece or tool for complex spatial trajectory machining.
Flat linear voice coil motors can be used in micro-machine tool assembly tasks to complete the alignment and assembly of tiny parts through precise linear motion.
Micro-machine tools require frequent tool changes or workpiece position adjustments. The high dynamic performance of flat voice coil motors can quickly accomplish position switching and improve the machining efficiency of the equipment.
Features:
Flat type voice coil motorized sub-coils are lightweight, with short response time and high frequency. Short stroke and compact structure.
Stroke 1mm-20mm.
Peak thrust 1N-500N.
Commonly used for x-y axis motion stages.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Application:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
|
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
