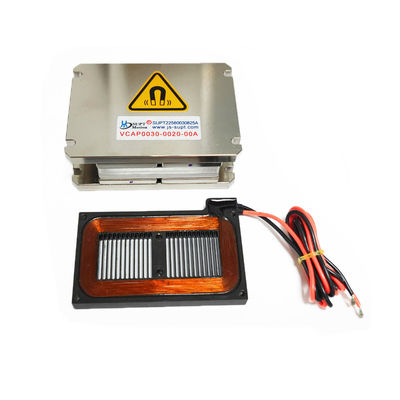

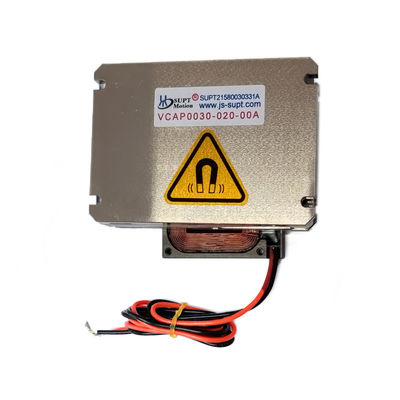

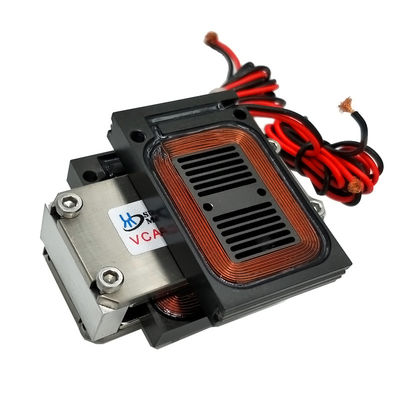

Light Weight Linear Voice Coil Actuator VCAP Small Linear Motor High Acceleration
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001-2000 |
| Model Number | VCAP series |
| Minimum Order Quantity | 5 PCS |
| Price | $129-$175 |
| Packaging Details | carton packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | Light | Power | 26W |
|---|---|---|---|
| Batch Number | YET-YQDJ58 | Lifetime | 100 Million Times |
| Voltage | 24V | Quantity | 5003 |
| Highlight | Light Weight Linear Voice Coil Actuator,VCA Small Linear Motor,Linear Voice Coil Actuator VCA |
||
Product Description
Light Weight Small Linear Voice Coil Motor Simple Structure High Acceleration
Product Description:
Micro linear voice coil motors play a crucial role in semiconductor manufacturing, mainly achieving various tasks through their high precision, high speed, and reliability characteristics. The following are some functions of micro linear voice coil motors in the semiconductor field:
1. Semiconductor wafer positioning and alignment: Micro linear voice coil motors can be used to accurately position semiconductor wafers to ensure their accurate position and alignment during the manufacturing process.
2. Mobile components in lithography machines: In lithography machines, micro linear voice coil motors can be used to control and move lithography heads, masks, and other key components to achieve high-precision pattern production.
3. Welding and Bonding Operations: Micro linear voice coil motors can be used to achieve precise welding, bonding, and assembly of small parts during the assembly process of semiconductor equipment.
4. Detection and Testing Equipment: In the testing and testing equipment of semiconductor chips, micro linear voice coil motors can be used to accurately move probes or sensors to different positions on the chip.
5. Film coating and cleaning: Micro linear voice coil motors can achieve precise motion control during the film coating and cleaning process, ensuring uniform film coating and effective removal of impurities.
6. Semiconductor Packaging: In the process of semiconductor chip packaging, micro linear voice coil motors can be used to control the movement and positioning of packaging materials, ensuring the accuracy of the packaging process.
7. Nano processing: In some advanced semiconductor applications, micro linear voice coil motors can be used to achieve nano level processing and positioning to meet high-precision manufacturing needs.
Overall, micro linear voice coil motors play a crucial role in semiconductor manufacturing, supporting various aspects of the semiconductor industry, from chip manufacturing to equipment assembly and testing, through their precise motion control and highly reliable performance.
Features:
- Linear Voice Actuation System
- Voice Coil Actuation Mechanism
- Weight:Light
- Stroke Lenght :1mm-20mm
- Peak thrust : 1N-300N
- Long Lifetime
- High Force
Technical Parameters:
| Parameter | Linear Voice Coil Actuator |
|---|---|
| Product Name | Linear Voice Coil Actuator |
| Type | Flat Type Voice Coil Motor |
| Model Number | VCAP Series |
| Stroke Length | 1-20mm |
| Input Voltage | 24V |
| Speed | High |
| Noise Level | Low |
| Duty Cycle | High |
| Lifetime | Long |
| Positioning Accuracy | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0020-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and stroke to 15mm.
The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
The motor is certified with ISO9001-2000 standards and comes with a minimum order quantity of 1. The price is $129-$175 and is available in carton packaging, with delivery time ranging from 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment Terms include T/T , and the Supply Ability is interviewed.
Customization:
Custom Linear Voice Coil Actuator Motor
Brand Name: SUPT MOTION
Model Number: VCAP Series
Place of Origin: Jiangsu, China
Certification: ISO9001-2000
Minimum Order Quantity: ≥1
Price: $129-$175
Packaging Details: Carton Packaging etc
Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms: T/T
Supply Ability: Interview
Duty Cycle: High
Type: Flat Type Voice Coil Motor
Stroke Length: 1-20mm
Force: High
Input Voltage:24V
We offer premium quality Linear Voice Coil Actuator Motor, Voice Coil Linear Motor and Linear Voice Actuation System.
Support and Services:
Linear Voice Coil Actuator technical support and service is available for customers who purchase the product. Our certified technical staff can provide assistance with installation and setup, troubleshooting and repair, and provide general advice about the product.
We also offer an online knowledge base with answers to frequently asked questions and helpful tips for using the product. Customers can contact our support team via email or phone with any questions or concerns they may have.
For customers who need more than just technical support, we offer a range of services, such as custom design and implementation, product customization. Our team of experienced professionals can help you get the most out of your Linear Voice Coil Actuator.
Packing and Shipping:
Packaging and Shipping of Linear Voice Coil Actuator
Linear Voice Coil Actuator is packaged and shipped in accordance with the following guidelines:
- The product is securely packaged in a cardboard box.
- The product should be protected from vibration, moisture, and dust during shipment.
- All components of the product should be sealed with tape or shrink wrap.
- All packages should include a packing slip with the customer's name and address.
- The package should be clearly labeled with the customer's name, address, and shipment information.
- Shipments should be sent via a reliable carrier such as FedEx, UPS, or DHL.
FAQ:
- Q: What is the brand name of the Linear Voice Coil Actuator?
- A: The brand name is SUPT MOTION.
- Q: What is the model number of the Linear Voice Coil Actuator?
- A: The model number is VCAP Series.
- Q: Where is the Linear Voice Coil Actuator produced?
- A: The Linear Voice Coil Actuator is produced in Jiangsu, China.
- Q: What is the certification of the Linear Voice Coil Actuator?
- A: The certification of the Linear Voice Coil Actuator is ISO9001-2000.
- Q: What is the minimum order quantity for the Linear Voice Coil Actuator?
- A: The minimum order quantity is ≥1.
- Q: What is the price of the Linear Voice Coil Actuator?
- A: Different models of motors, different quantities, different prices.
