Simple Voice Coil Actuator Flat Miniature Linear Motors For The Micro-Machine Tool Industry
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0160-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $120.00/pieces >=2 pieces |
| Packaging Details | in carton and as customer requirements<br>linear voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month linear voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 4.6A | Efficiency | IE 1 |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 4.4V |
| Peak Force | 20N | Continuous Force | 5.3N |
| Port | Shanghai Port | ||
| Highlight | Simple Structure Linear Voice Coil Actuator,Linear Voice Coil Actuator Flat 4.6A,Flat Type Micro Linear Motor 4.6A |
||
Product Description

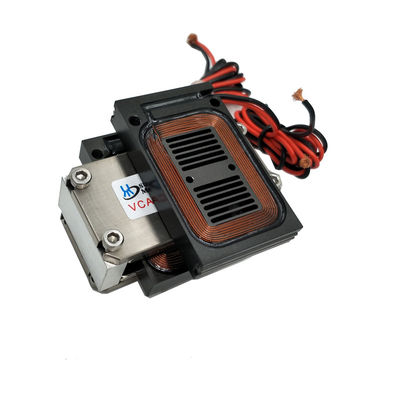

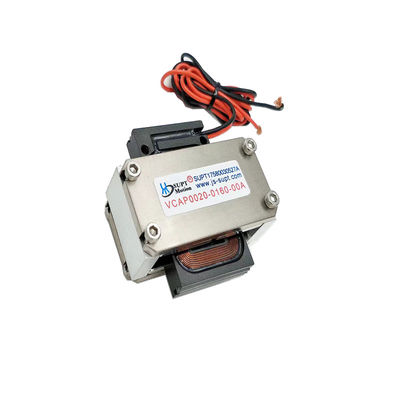

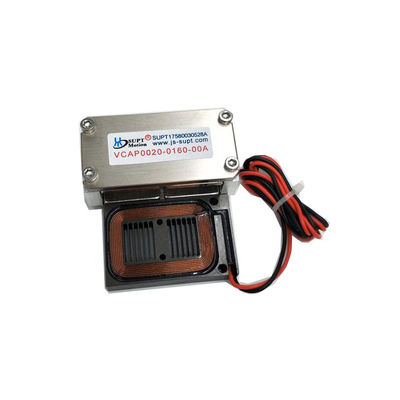

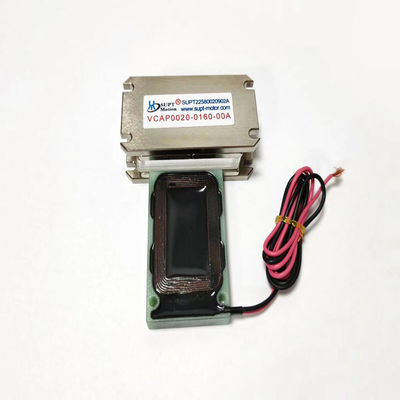

Simple Structure Voice Coil Motor Micro Motor Linear Flat Type Voice Coil Motor
Product Description
The flat voice coil motor (VCM) utilizes the principle of electromagnetic interaction to produce linear motion. It consists of a flat coil placed in a magnetic field. When current flows through the coil, it interacts with the magnetic field, creating a Lorentz force that drives the coil along a linear path. This direct drive mechanism eliminates the need for mechanical transmission components, ensuring high accuracy and responsiveness.
The flat series is ideal for producing short travel X-Y motions, and its market is mainly directed to the semiconductor and micro-machine tool industries. Next, let's talk about the ways in which flat voice coil motors can be used in the micro-machining industry:
1. Precision micromachining: The precise motion control and responsiveness of the VCM makes it ideal for micromachining applications. It can control the motion of the cutter head, work piece or cutting tool with sub-micron accuracy, enabling complex and precise micromachining processes.
2. Optics and Microlithography: In the fabrication of micro-optics and microlithography processes, the VCM assists in positioning lenses, masks or other optical elements with extreme precision. This is critical for producing accurate microstructures.
3. MEMS Manufacturing: For Micro-Electro-Mechanical Systems (MEMS) manufacturing, VCM helps to precisely move MEMS components during the manufacturing process, ensuring the accurate assembly of complex micro-devices.
4. Micro-Electro Discharge Machining and Micro-Milling: In Micro-Electro Discharge Machining (EDM) and Micro-Milling applications, VCMs control the movement of electrodes or grinding tools to enable precise material removal from miniature features.
5. Probe Manipulation: In micromanipulation tasks, such as handling precision samples or micro-components, the VCM controls the movement of the probe to ensure damage is minimized and precise positioning is achieved.
6. Micro-assembly: The VCM can be used in micro-assembly processes to locate and align micro-components in the construction of micro-devices, ensuring proper connection and functionality.
7. Surface Contouring: VCM can help to accurately position a profiler or surface measurement tool to characterize miniature surfaces with high accuracy.
8. Microdispensing and Printing: In microfluidics and microfabrication, the VCM can be used to control the dispensing or printing of minute quantities of fluids or materials on microstructured surfaces.
Application:
The flat voice coil motor has light rotor coil, short response time and high frequency. Short stroke, compact structure. The stroke 1mm-20mm peak thrust 1N-300N is often used to make x-y axis motion platform. Widely used in semiconductor, micro-machine tool industry. Modular design, can be customized processing. The flat voice coil motor series has a shorter stroke than the rectangular series at the same volume, but has the advantage of a lower height surface. Thrust up to 500N, stroke up to 15mm. The flat series is an ideal product for producing short-stroke X-Y motion, and its market is mainly oriented towards semiconductor and micro-machine tool industries.
The VCAP series of Flat Type Voice Coil Motor
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAP0020-0068-00A
|
20
|
9.2
|
6.8
|
8.2
|
4.4
|
39
|
50
|
21.5
|
|
VCAP0020-0160-00A
|
20
|
5.3
|
16
|
27.6
|
4.4
|
59
|
50
|
22.5
|
|
VCAP0030-0200-00A
|
30
|
12.3
|
20
|
24.3
|
10.5
|
80
|
74
|
25
|
Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
