High Acceleration Electric Motors Little Mass Moving Coil Actuator Mini Flat Type
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0160-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $120.00/pieces >=2 pieces |
| Packaging Details | in carton and as customer requirements<br>linear voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month linear voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 4.6A | Efficiency | IE 1 |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 4.4V |
| Peak Force | 20N | Continuous Force | 5.3N |
| Port | Shanghai Port | ||
| Highlight | High Acceleration Electric Motors 4.6A,Little Mass Moving Coil Actuator 4.4V,Moving Coil Actuator Mini Flat 4.4V |
||
Product Description
High-Acceleration Electric Motors Little Mass Moving Part Mini Flat Type Voice Coil Motor
Product Description
Small flat voice coil motors play an important role in small mass moving components, mainly by providing precise motion control and positioning to achieve various tasks. The following are their roles in this regard:
1. Accurate positioning: Small flat voice coil motors can achieve high-precision positioning, allowing small mass moving parts to stay in the desired position, thus supporting various precision applications.
2. Quick Response: This type of motor responds quickly and can quickly start, stop, or change the direction of motion, suitable for applications that require rapid changes.
3. Smooth motion: A small flat voice coil motor generates smooth linear motion, reducing vibration and impact, helping to maintain the stability of moving components.
4. Zero Backgap Design: The working principle of this type of motor usually has a zero backgap design, thereby eliminating the backgap and nonlinear problems caused by mechanical transmission in traditional motors.
5. High precision acceleration and deceleration: Small flat voice coil motors can achieve high-precision acceleration and deceleration, which is crucial for precise control of small mass moving parts.
6. Low noise operation:Due to their direct drive design, these motors typically operate at lower noise levels and are suitable for environments that require quiet operation.
7. Closed loop control: Small flat voice coil motors can be integrated with position feedback systems to achieve closed-loop control and improve the accuracy and stability of moving components.
8. Micro size: The compact design of a small flat voice coil motor is suitable for limited space applications and can achieve precise motion control in small devices.
Application:
The flat voice coil motor is a compact, high-speed, long-life linear drive system with low noise and high positioning accuracy. The flat voice coil motor series has a shorter stroke than the rectangular series at the same volume, but has the advantage of a lower height surface. Thrust up to 500N, stroke up to 15mm. It is an efficient and reliable solution for a variety of industrial applications such as picking and placing, robotic manipulators and aerospace applications. The flat series is ideal for generating short-stroke X-Y motion, its market mainly points to the semiconductor and micro-machine tool industry. The motor provides accurate and fast motion control with minimal vibration. Linear voice coil actuator motors are designed to produce high force and torque while maintaining low noise levels. It also produces high accuracy and repeatability. The motor has long service life, durability and reliable operation. It is ideal for a wide range of motion control applications such as automation, robotics and aerospace applications.
Technical Parameters:
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAP0020-0068-00A
|
20
|
9.2
|
6.8
|
8.2
|
4.4
|
39
|
50
|
21.5
|
|
VCAP0020-0160-00A
|
20
|
5.3
|
16
|
27.6
|
4.4
|
59
|
50
|
22.5
|
|
VCAP0030-0020-00A
|
30
|
12.3
|
20
|
24.3
|
10.5
|
80
|
74
|
25
|

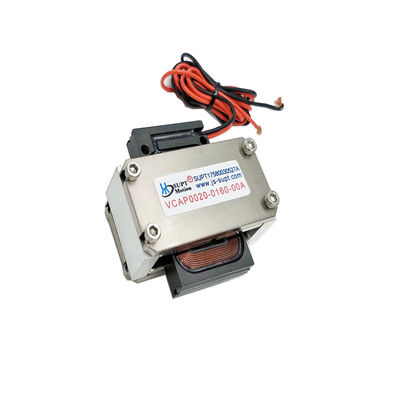

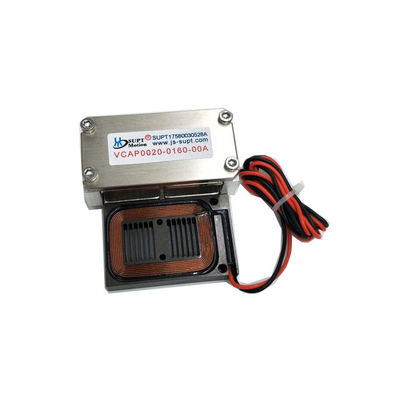

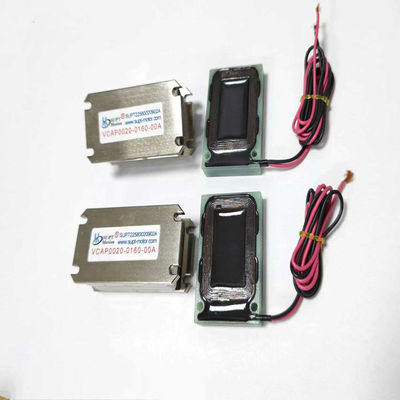

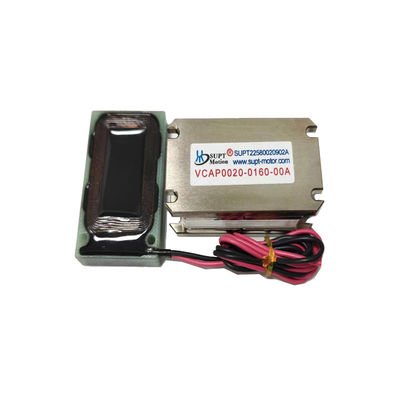

Detailed Images
