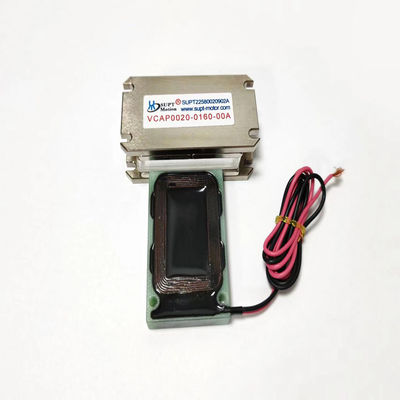

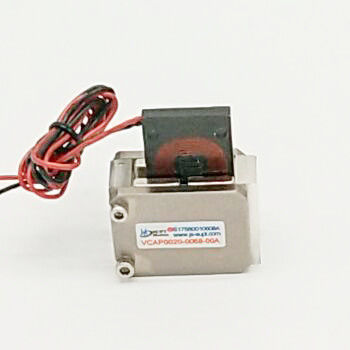

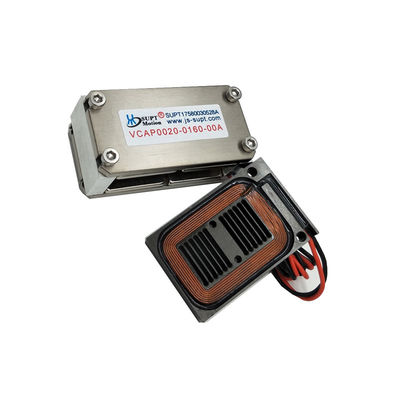

X-Y Motion Flat Type Linear Voice Coil Actuator Low Noise Micro Voice Coil Actuator

Product Description:

A flat voice coil motor (VCM) can achieve X-Y motion by combining two separate coils. This design allows for precise motion control on two mutually perpendicular axes.
Specifically, the following is the general process of how a flat voice coil motor achieves X-Y motion:
1.  X-axis motion:  For X-axis motion, a coil of the motor is placed in a position aligned with the X-axis. When current passes through this coil, according to the Lorentz force, the coil will be subjected to a force perpendicular to the direction of the magnetic field and the direction of the current. This force will cause the coil to move on the X-axis. By controlling the magnitude and direction of the current passing through the coil, precise X-axis positioning can be achieved.
2.  Y-axis motion:  In order to achieve motion on the Y-axis, another coil is placed in a position aligned with the Y-axis. By transmitting current to this coil, a Lorentz force is also generated, causing the motor to move on the Y-axis.
By simultaneously controlling the coil current on both the X and Y axes, X-Y motion at any position can be achieved on a two-dimensional plane. The implementation of this motion can be achieved not only within a flat voice coil motor, but also through external control of current changes, thereby achieving precise planar motion control.

Application:

Linear voice coil actuator is a voice coil linear motor actuator designed to provide precise positioning accuracy and high speed and power capability. This is a highly reliable and cost-effective system, making it an ideal solution for a variety of applications. It is characterized by light rotor coil, short response time and high frequency. Short stroke, compact construction makes it easy to install and maintain, and its powerful motors provide superior performance. In addition, its high speed and power capabilities make it suitable for a wide range of applications, from precision positioning to precise motion control. Commonly used in the production of x-y axis motion platform. Widely used in semiconductor, micro-machine tool industry. With its high precision, long life and powerful protective functions, the Modular design is ideal for applications that meet stringent requirements.The VCAP series flat voice coil motors have a lower stroke length per dimension than the rectangles, but they also have a lower height surface. With thrust up to 500N and stroke to 15mm, the VCAP series planar actuators are ideal for very small stroke X-Y axis motion solutions, and their main markets are in the semiconductor and micro machine tool industries.

 We are happy to assist a custom design.
