Mini Linear Voice Coil Actuator High Precision Flat Type Aerospace Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0160-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $120.00/pieces >=2 pieces |
| Packaging Details | in carton and as customer requirements<br>linear voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month linear voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 4.6A | Efficiency | IE 1 |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 4.4V |
| Peak Force | 20N | Continuous Force | 5.3N |
| Port | Shanghai Port | ||
| Highlight | Mini Linear Voice Coil Actuator 20N,Linear Voice Coil Actuator High Precision,Aerospace Voice Coil Motor 20N |
||
Product Description
High-Precision Mini Flat Type Voice Coil Motor For To Aerospace
Product Description
Flat-type voice coil motors (VCMs) find valuable applications in aerospace and aviation equipment due to their unique characteristics that contribute to precision, reliability, and efficiency. Here are some areas where these motors are utilized in aerospace and aviation:
1. Satellite Antenna Actuation: Flat-type VCMs are used to precisely position satellite antennas for communication, data transmission, and receiving signals from Earth. Their accurate motion control ensures optimal antenna alignment.
2. Camera and Sensor Pointing Systems: These motors play a role in positioning cameras, sensors, and imaging equipment on satellites or aircraft. They enable accurate tracking of objects, terrain, and phenomena for remote sensing and surveillance.
3. Optical System Alignment: In aerospace applications that involve optical systems, such as telescopes and spectrometers, flat-type VCMs facilitate the fine-tuning and precise alignment of optical components for optimal performance.
4. Aircraft Flap Actuation: In aviation, these motors can be used to control and adjust the movement of aircraft flaps, which are critical for aerodynamic control during takeoff, landing, and flight.
5. Spacecraft Thrust Vectoring:VCMs aid in adjusting the thrust vector direction of spacecraft engines for attitude control and trajectory adjustments, contributing to accurate navigation and control in space missions.
6.Control Surface Actuation: In both aircraft and spacecraft, VCMs are employed in actuating control surfaces such as ailerons, elevators, and rudders. These surfaces enable control over pitch, roll, and yaw motions.
7. Spacecraft Docking and Berthing: VCMs play a role in aligning and guiding spacecraft during docking and berthing procedures, ensuring safe and precise connection between space vehicles.
8. Satellite Reaction Wheel Control: Flat-type VCMs are used to control and adjust the speed of reaction wheels, which are utilized for spacecraft attitude control by altering angular momentum.
The main application of a voice coil motor:
Linear voice coil driver is a kind of voice coil drive mechanism, which uses linear voice coil driver for accurate control. It is a flat voice coil motor, its market mainly points to semiconductor and micro-machine tool industry. This linear voice coil actuator system is lightweight, compact and suitable for a variety of applications. It is characterized by light weight, short response time and high frequency. Short stroke, compact structure, model is VCAP series, is perfect for applications requiring precise and accurate movement.
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
Technical Parameters:
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAP0020-0068-00A
|
20
|
9.2
|
6.8
|
8.2
|
4.4
|
39
|
50
|
21.5
|
|
VCAP0020-0160-00A
|
20
|
5.3
|
16
|
27.6
|
4.4
|
59
|
50
|
22.5
|
|
VCAP0030-0200-00A
|
30
|
12.3
|
20
|
24.3
|
10.5
|
80
|
74
|
25
|

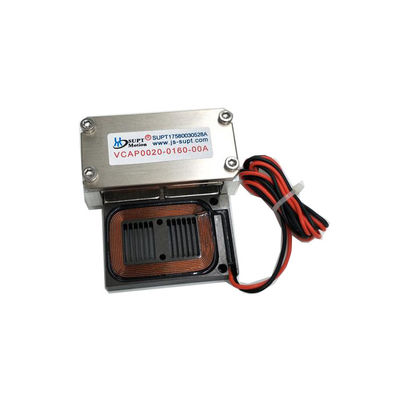

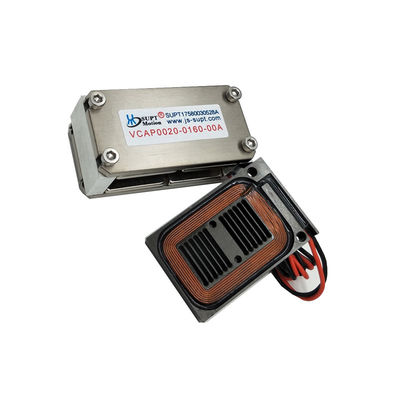

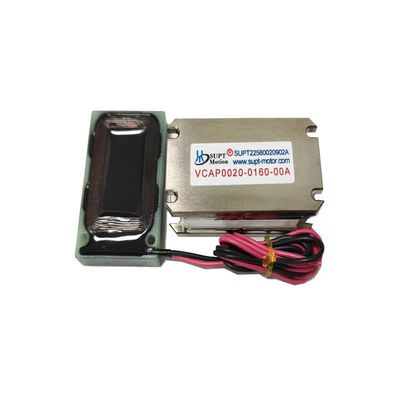

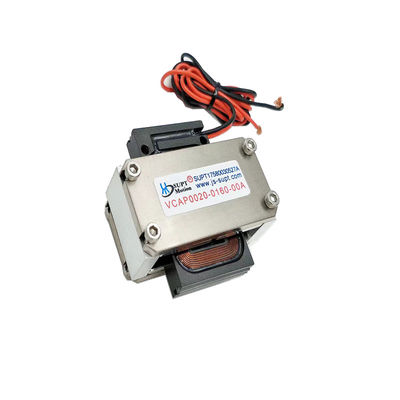

Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
