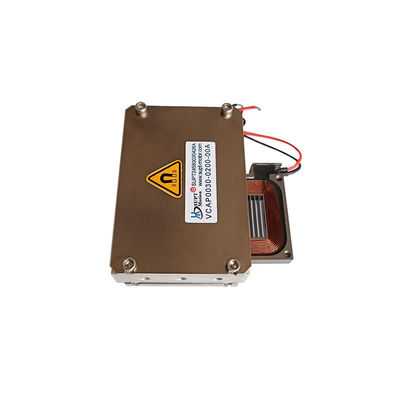

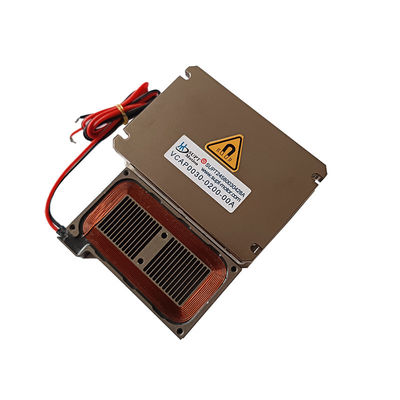

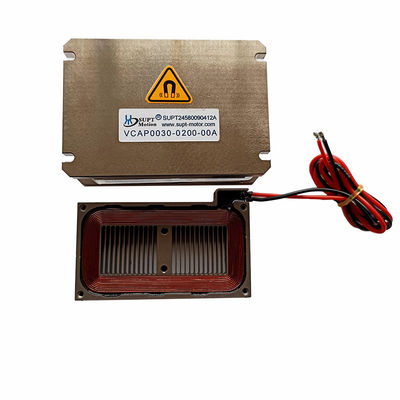

XY Axis Linear Voice Coil Actuator Flat Motors For Micro Machine Tool Industry

The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and stroke to 15mm

The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

In the field of micro-machines, xy-axis linear voice coil motors flat type motors are widely used for precision positioning and micro-machining tasks due to their high accuracy, high speed and rapid response.They are usually designed as an integrated structure, taking up little space and contributing to the compactness of the overall structure of the micro-machine tool.
Their low-profile design makes them ideal for applications where space is limited, especially for the complex layout requirements of micro-machines.
Flat series voice coil motors are typically used for table positioning on micro-machines to ensure that the workpiece can be moved to the specified position with high accuracy during machining. They are suitable for laser machining, micro-milling, micro-drilling and other machining processes that require high-precision movement and multi-axis coordination.
Flat voice coil motors can also be used in applications that require fast and precise movement over short distances, such as scanning systems or micro-positioning stages in micro-machining.
Commonly used in microelectronic assembly, optical device manufacturing and other tasks requiring high frequency response and precise positioning.
