Low Noise Linear Voice Coil Actuator High Positioning Accuracy Linear Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | ≥1 |
| Price | $107 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stroke Length | 6.8mm | Product Name | Linear Voice Coil Actuator |
|---|---|---|---|
| Positioning Accuracy | High | Force | High |
| Weight | Light | Type | Flat Type Voice Coil Motor |
| Operating Temperature | Wide | Product Model | VCAP0020-0068-00A |
| Peak Force | 20N | ||
| Highlight | Low Noise Linear Voice Coil Actuator,Linear Voice Coil Actuator 80mm,High Positioning Accuracy Linear Voice Coil Motor 80mm |
||
Product Description
High Positioning Accuracy High Accuracy Low Noise Linear Voice Coil Actuator
Product Description:
The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and stroke to 15mm. It offers a high duty cycle and wide operating temperature range, making it an ideal solution for applications requiring precision and dependability. The VCAP Series is powered by an 8V input voltage, and has a stroke length of 6.8mm for maximum flexibility. With its linear voice coil actuation technology, this actuator offers the highest level of performance and precision for your motion control needs.
Features:
- Product Name: Linear Voice Coil Actuator
- Protection: IP67
- Force: High
- Duty Cycle: High
- Weight: Light
- Input Voltage: 8V
- Voice Coil Linear Motor
- Linear Voice Coil Actuator Motor
- Voice Coil Linear Motor
Technical Parameters:
| Product Feature | Description |
|---|---|
| Protection | IP67 |
| Operating Temperature | Wide |
| Noise Level | Low |
| Lifetime | Long |
| Duty Cycle | High |
| Speed | High |
| Size | Compact |
| Stroke Length | 6.8mm |
| Force | High |
| Positioning Accuracy | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |

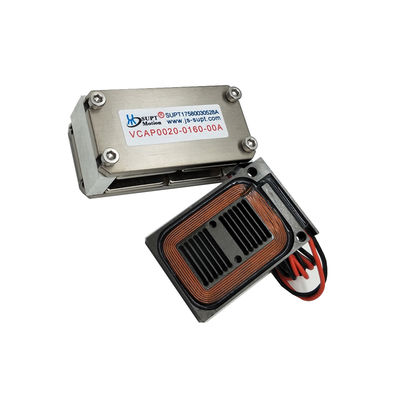

| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
The linear voice coil drive is suitable for a variety of applications, including automation, robotics, medical, semiconductor, and retail applications. It is designed to provide a fast, accurate, and reliable linear actuation mechanism, and can help to improve the efficiency of production processes. The voice coil actuation system is also equipped with a high positioning accuracy, low noise, and high acceleration, making it an ideal choice for precision applications. The product is also known for its long lifetime, allowing users to enjoy a longer product lifespan.
