High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | ≥1 |
| Price | $107 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | Wide | Product Name | Linear Voice Coil Actuator |
|---|---|---|---|
| Stroke Length | 4mm | Protection | IP67 |
| Size | Compact | Type | Flat Type Voice Coil Motor |
| Positioning Accuracy | High | Product Model | VCAP0100-0020-00A |
| Voltage | 41V | Peak Force | 100N |
| Highlight | High Positioning Accuracy Linear Voice Coil 24V,Linear Voice Coil Motor 24V,Compact Linear Voice Coil Motor |
||
Product Description
High Positioning Accuracy Compact Linear Voice Coil Motor for Long Lifetime
Product Description:
Linear Voice Coil Actuator is an advanced voice coil linear motor actuation system designed for high-precision positioning accuracy, long lifetime, high duty cycle, and compact size. It delivers smooth and accurate performance even in tough conditions and is IP67-rated for protection against dust, dirt, and water. This voice coil linear motor actuation system provides a reliable, compact, and cost-effective solution for a wide range of applications. With its high precision, long lifetime, and robust protection, it is an ideal choice for applications with stringent requirements.
The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and strokers to 15mmThe VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Linear Voice Actuation System
- Voice Coil Actuation Mechanism
- IP67 Protection Rating
- 41V Voltage Input
- 4mm Stroke Length
- Long Lifetime
- High Force
Technical Parameters:
| Parameter | Linear Voice Coil Actuator |
|---|---|
| Product Name | Linear Voice Coil Actuator |
| Type | Flat Type Voice Coil Motor |
| Model Number | VCAP Series |
| Stroke Length | 4mm |
| Input Voltage | 41V |
| Speed | High |
| Noise Level | Low |
| Duty Cycle | High |
| Lifetime | Long |
| Positioning Accuracy | High |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |

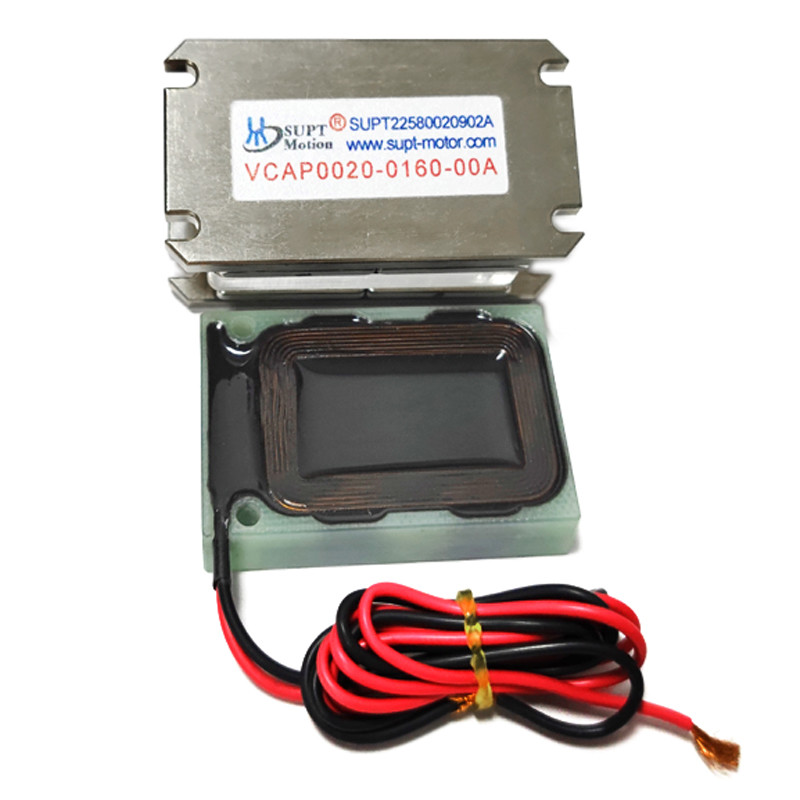

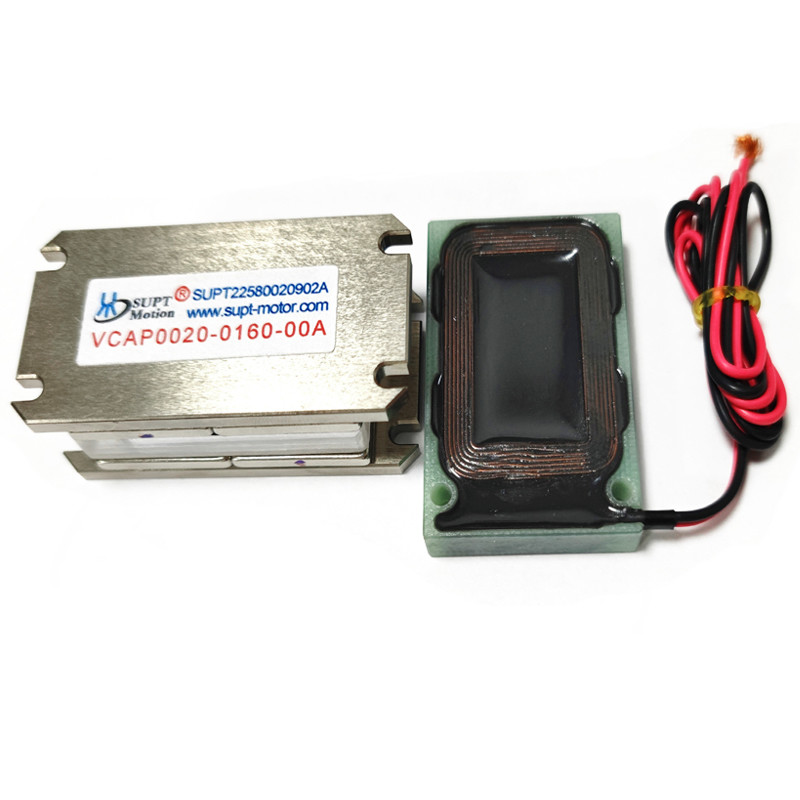

| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0020-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
SUPT MOTION's VCAP Series Linear Voice Coil Actuator provides an ideal solution for linear motion applications, making it ideal for a wide range of industries. It is a high performance linear actuation system with a low profile design, offering a long life and high force output. With its high duty cycle and IP67 protection, this actuator is perfect for challenging environments. This Linear Voice Coil Actuator is designed for both low and high voltage applications. It can be used with an input voltage 41V, providing high force output and long lifetime. The motor is certified with ISO9001 standards and comes with a minimum order quantity of 1. The price is $107 and is available in carton packaging, with delivery time ranging from 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment Terms include T/T , and the Supply Ability is interviewed.
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
