Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | ≥1 |
| Price | $107 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Duty Cycle | High | Operating Temperature | Wide |
|---|---|---|---|
| Size | Compact | Type | Flat Type Voice Coil Motor |
| Protection | IP67 | Noise Level | Low |
| Weight | Light | Product Modle | VCAP0100-0020-00A |
| Peak Force | 100N | ||
| Highlight | Compact Linear Voice Coil Actuator,Linear Voice Coil Actuator IP67,IP67 Protection Vcm Voice Coil Motor |
||
Product Description
Linear Voice Coil Actuator Motor High Positioning Accuracy IP67 Protection
Product Description:
The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Linear Voice Coil Drive is a high-performance, compact voice coil linear actuator system. It provides high-force, low-noise linear motion and is designed to operate in wide temperature ranges. With its IP67 protection rating, it is ideal for applications where dust and water resistance is required. Its compact size and high performance make it the perfect solution for a wide range of applications. From medical and industrial to aerospace and automotive, Linear Voice Coil Drive is the perfect choice for linear motion control applications.
Features:
- Product Name: Linear Voice Coil Actuator
- Input Voltage: 41.2V
- Weight: Light
- Size: Compact
- Noise Level: Low
- Voice Coil Linear Motor Technology
- Linear Voice Coil Actuation
- High-Performance Voice Coil Linear Motor
- Linear Actuator for Precise Motion Control
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | Linear Voice Coil Actuator |
| Speed | High |
| Protection | IP67 |
| Type | Flat Type Voice Coil Motor |
| Duty Cycle | High |
| Weight | Light |
| Operating Temperature | Wide |
| Stroke | 4mm |
| Lifetime | Long |
| Force | High |
| Linear Voice Coil Motor | Yes |
| Linear Voice Coil Drive | Yes |
| Linear Voice Coil Drive System | Yes |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |

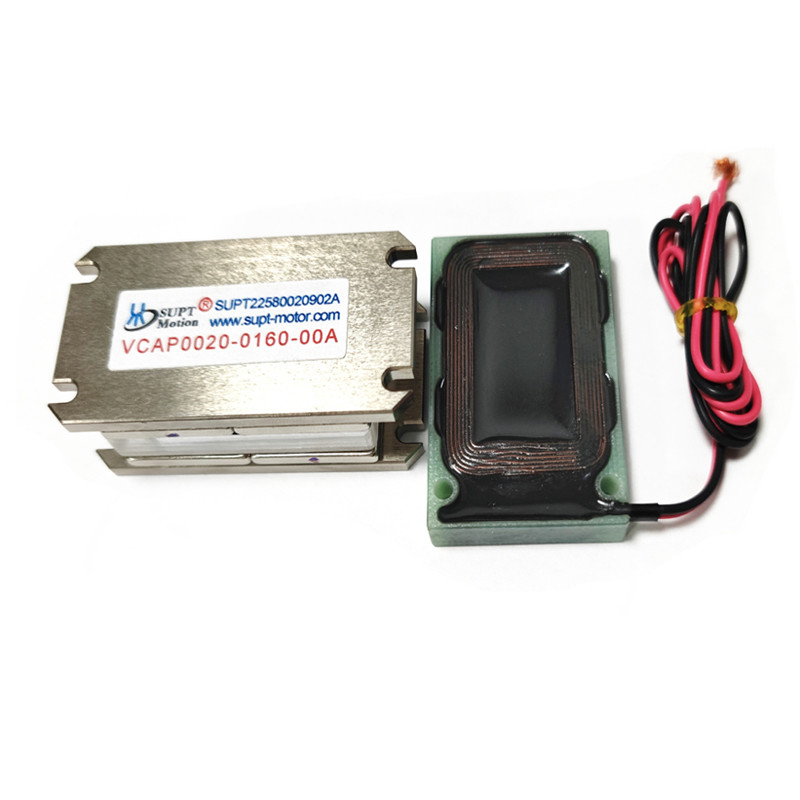

| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-00-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
The Linear Voice Coil Actuator from SUPT MOTION, model VCAP Series, is an ideal solution for applications requiring linear voice actuation systems. This product is certificated by ISO9001 and the minimum order quantity is ≥1. It comes with an input voltage of 41.2V, a compact size and a flat type voice coil motor, which is able to produce high force.
The price for the Linear Voice Coil Actuator is $107 and the delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. We accept both T/T as payment terms. The package will be carton packaging and other materials according to customer's requirements. We have sufficient supply ability and can provide an interview for further details.
