High Speed Linear Voice Coil Actuator Flat Type Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | ≥1 |
| Price | $107 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Positioning Accuracy | High | Force | High |
|---|---|---|---|
| Lifetime | Long | Size | Compact |
| Product Name | Linear Voice Coil Actuator | Product Model | VCAP0030-0200-00A |
| Total Stroke | 20mm | Voltage | 24V |
| Highlight | High Speed Linear Voice Coil Actuator,Flat Type Voice Coil Motor,Linear Voice Coil Actuator Flat Type |
||
Product Description
High Speed Flat Type Voice Coil Motor Linear Voice Coil Actuator
Product Description:
The Linear Voice Coil Actuator Motor is a compact, high-speed, long-lifespan linear actuation system with low noise and high positioning accuracy. It is an efficient, reliable solution for various industrial applications, such as pick-and-place, robotic manipulators, and aerospace applications. This motor is able to provide precise and fast motion control with minimal vibration. It is designed to reduce energy consumption, while providing superior performance.
The motor design uses a voice coil configuration that consists of a coil and a magnet. The coil is attached to a movable part and is exposed to a magnetic field. When a current is applied to the coil, the coil moves along the magnetic field, resulting in linear motion. This enables the motor to produce high-speed linear movement with minimal noise.
The Linear Voice Coil Actuator Motor is designed to generate high force and torque, while maintaining low noise levels. It is also capable of producing high precision and repeatability. The motor also has a long-lifespan, and is durable and reliable in operation. It is ideal for a wide range of motion control applications, such as automation, robotics, and aerospace applications.
Features:
- Product Name: Linear Voice Coil Actuator
- Operating Temperature: Wide
- Force: High
- Positioning Accuracy: High
- Type: Flat Type Voice Coil Motor
- Stroke Length: 39-80mm
- Voice Coil Actuation Mechanism: Linear Voice Coil Motor
- Linear Voice Coil Drive: Linear Voice Coil Motor
Technical Parameters:
| Parameter | Specification |
|---|---|
| Product Type | Linear Voice Coil Actuator |
| Model Number | VCAP0030-0200-00A |
| Size | Compact |
| Weight | Light |
| Duty Cycle | High |
| Operating Temperature | Wide |
| Noise Level | Low |
| Lifetime | Long |
| Input Voltage | 24V |
| Force | High |
| Peak Force | 30N |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |

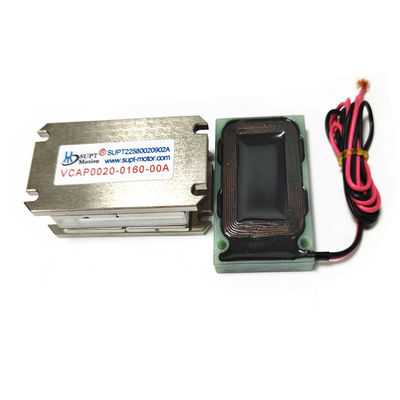

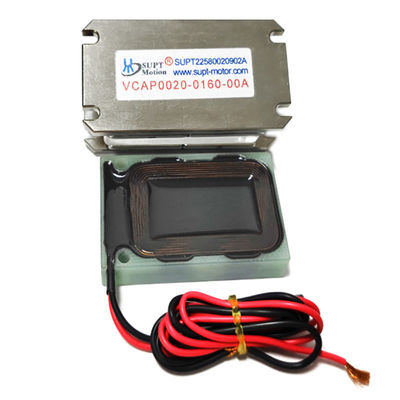

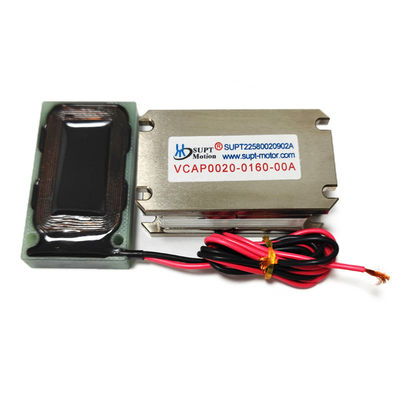

| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0020-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
The SUPT MOTION VCAP Series Linear Voice Coil Actuator is the perfect choice for applications such as voice actuation systems and linear voice actuation systems. This product is certified by ISO9001 and is produced in Jiangsu, China. It is available for a minimum order quantity of ≥1 and the price is $107. The packaging details include Carton Packaging and the delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms include T/T . The supply ability is available for interview. The weight of the product is light and the stroke length is 20mm. It has high force and is a flat type voice coil motor. The lifetime of the product is long.
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
