XY Permanent Magnet Motor Linear Voice Coil Motor High Accuracy
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0160-00A |
| Minimum Order Quantity | ≥1 |
| Price | $195.00/pieces >=1 pieces |
| Packaging Details | in carton and as customer requirements<br>linear voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month linear voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 4.6A | Efficiency | IE 1 |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 4.4V |
| Peak Force | 20N | Continuous Force | 5.3N |
| Port | Shanghai Port | ||
| Highlight | XY Permanent Magnet Motor,Permanent Magnet Linear Voice Coil Motor,Linear Voice Coil Motor High Accuracy |
||
Product Description
XY Permanent Magnet Motor Linear Voice Coil Motor High-Accuracy
Product Description
An XY permanent magnet linear voice coil motor, often referred to as an XY PM-LVCM, is a type of electromagnetic device used for precise and controlled linear motion in two dimensions, typically along the X and Y axes. It employs a combination of permanent magnets and voice coil actuators to generate motion through the interaction of magnetic fields and electric currents.
The XY PM-LVCM offers the following characteristics:
1.Bidirectional Control: The motor allows bidirectional movement along both the X and Y axes, enabling accurate positioning and controlled motion in two-dimensional space.
2. High Precision: Due to its electromagnetic design and precise control over the current applied to the voice coil, the XY PM-LVCM achieves high levels of accuracy in position and velocity control.
3. Smooth Motion: The interaction between the permanent magnets and the voice coil produces smooth and consistent linear motion, minimizing vibrations and ensuring stable performance.
4. Fast Response:The motor's inherent low inertia and fast response time make it suitable for applications that require rapid changes in position or frequent start-stop cycles.
5. Quiet Operation: The absence of mechanical components in the motor's moving parts contributes to quiet and low-noise operation, making it suitable for noise-sensitive environments.
6. Customizable Configurations: XY PM-LVCMs can be designed and configured to match specific application requirements, adapting to load capacities, stroke lengths, and other parameters.
7. Versatility: These motors find application in various industries, including semiconductor manufacturing, precision optics, biotechnology, and automation, where precise two-dimensional positioning is essential.
application :
Linear voice coil driver is an advanced voice coil linear motor drive system designed for high precision positioning accuracy, long life, high duty cycle, small size. The VCAP0020-0160-00A is an ideal solution for short-stroke X-Y axis motion in the semiconductor and micro machine tool industries. Linear voice coil driver is a high performance, compact voice coil linear drive system. From medical and industrial to aerospace and automotive, linear voice coil drives are ideal for linear motion control applications.It has high precision, long life and powerful protection function, is to meet the strict requirements of the application of the ideal choice.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |

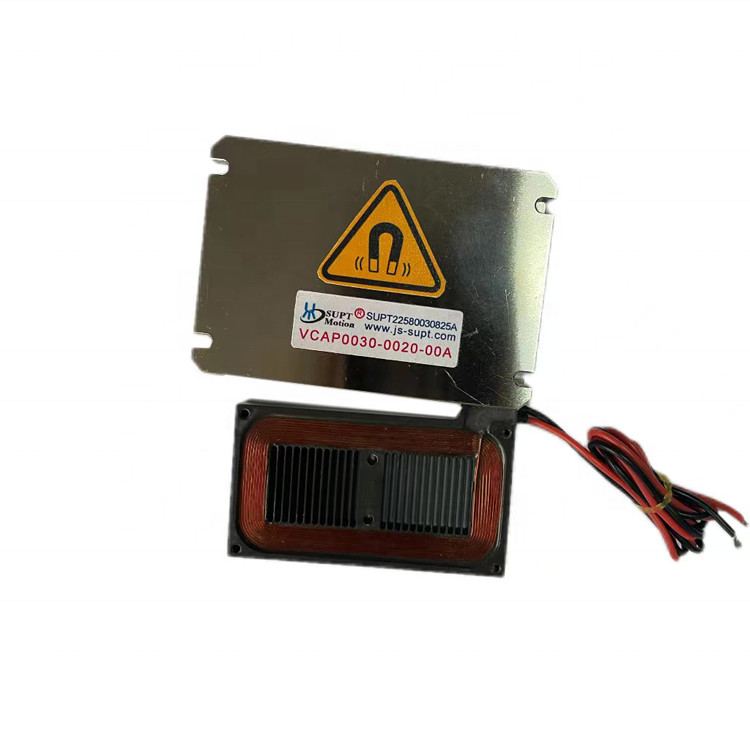

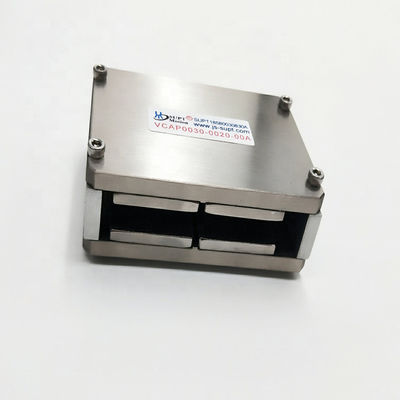

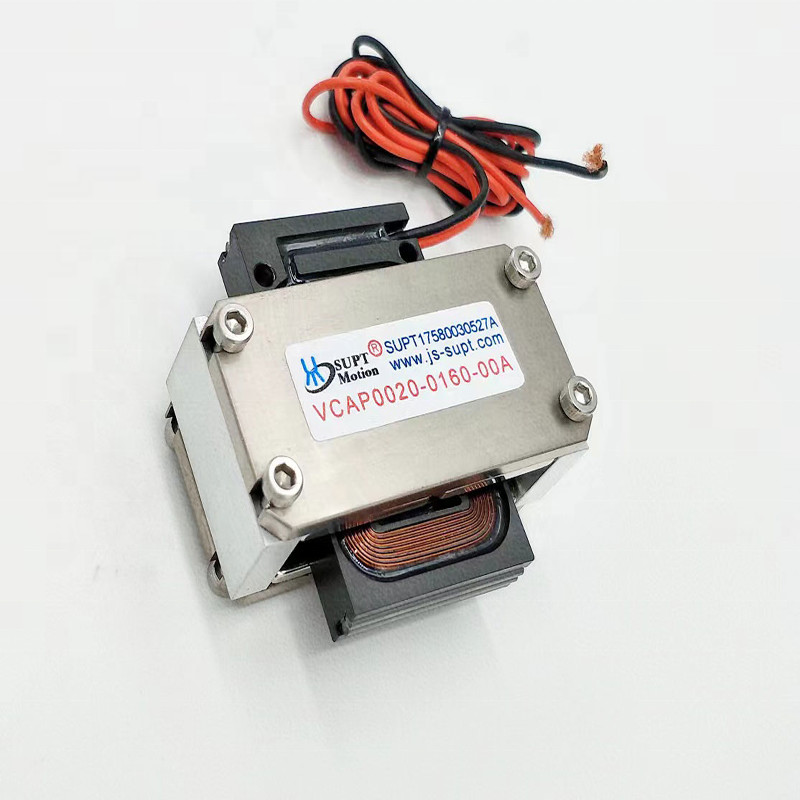

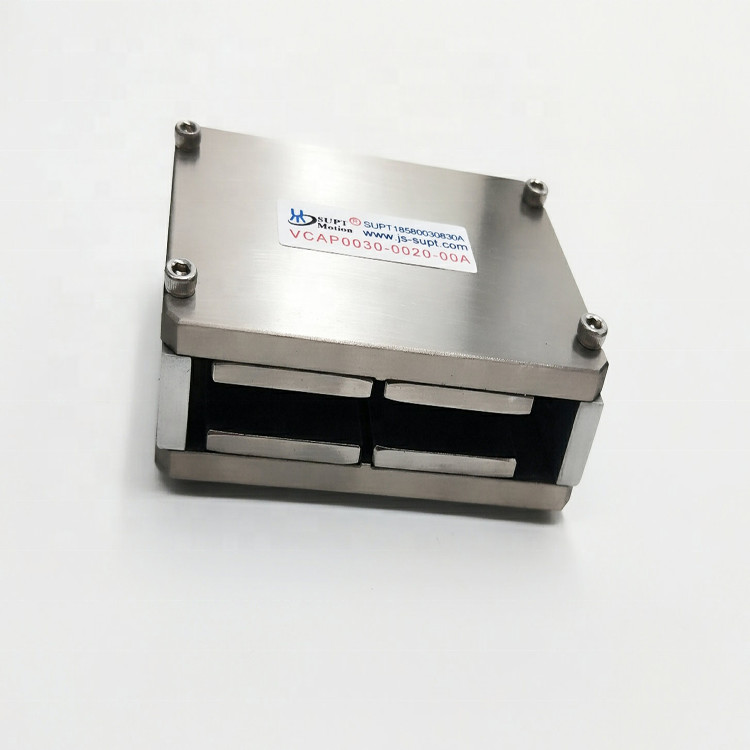

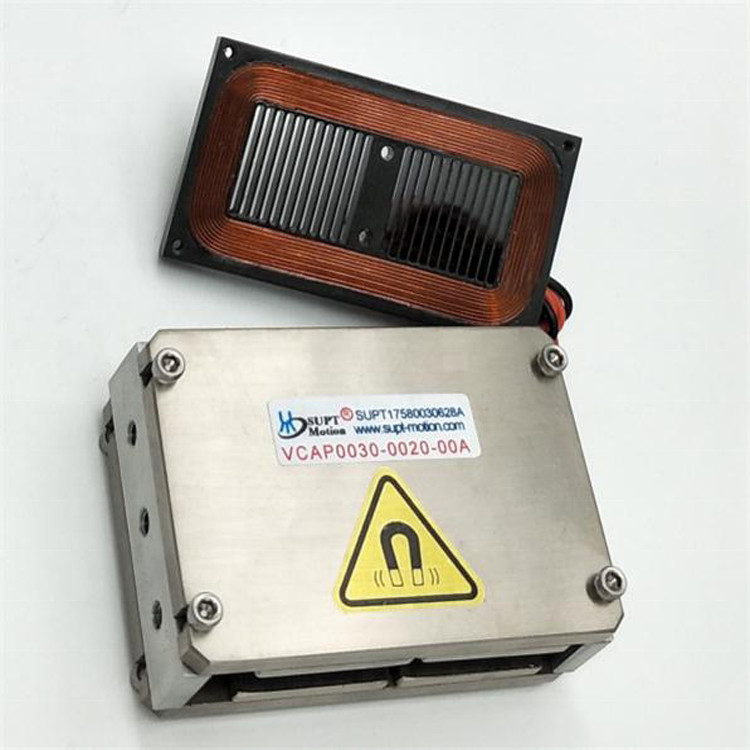

Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
