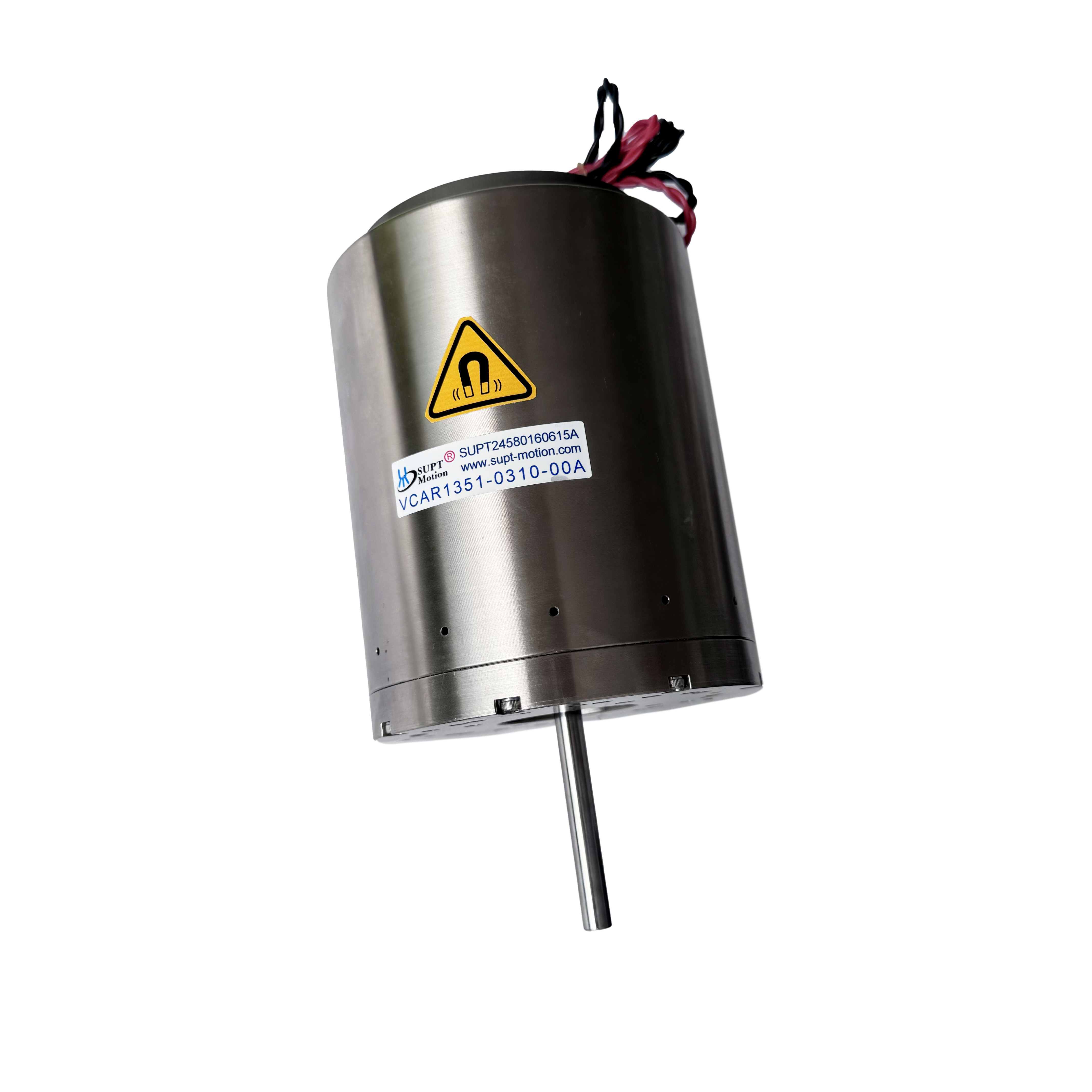

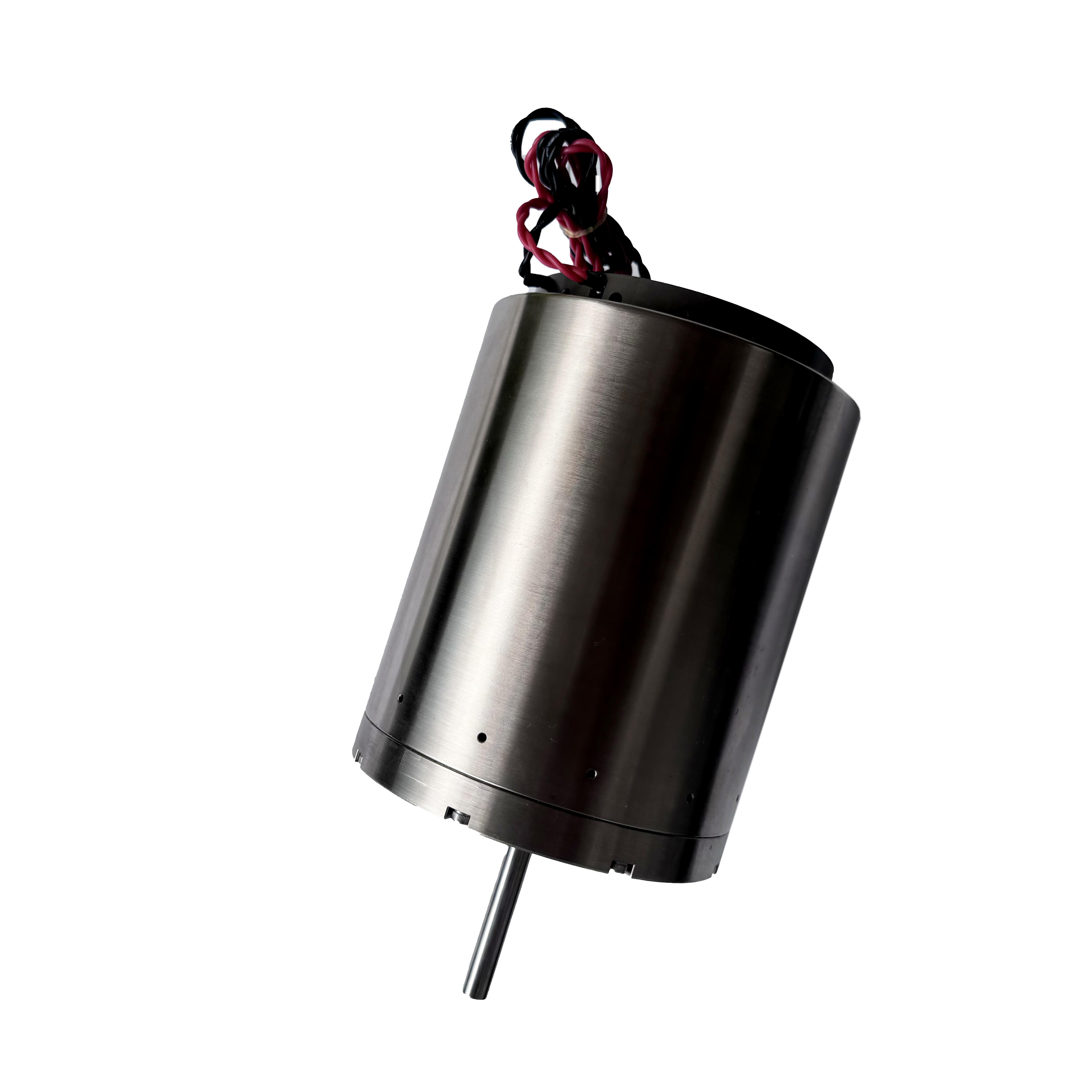

High-Precision Miniature Axial Linear Voice Coil Motors For Laser Cutting
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAH Series |
| Minimum Order Quantity | 2PCS |
| Price | $149 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Linear Voice Coil Motor | Usage | BOAT, Car, Electric Bicycle |
|---|---|---|---|
| Resolution | High | Stroke | 10mm |
| Product Model | VCAH0030-0100-00A | Weight | 0.28kg |
| Peak Force | 30N | Application | Automatic Product |
| Maximum Travel(mm) | 10 | Voice Coil Motor(V) | 24.9 |
| Continuous Force(N) | 7.2 | Construction | Permanent Magnet |
| Type | Micro Motor | ||
| Highlight | Laser Cutting Linear Voice Coil Motor,Miniature Linear Voice Coil Motor,High Precision Linear Voice Coil Motor |
||
Product Description
Product Description:
Axial linear voice coil motors in laser cutting are characterized by high speed response, high precision, frictionless, long life, etc. They are widely used in laser cutting for focal length adjustment, auto focus, galvanometer control and other key links.
Axial linear voice coil motor in the laser cutting machine voice coil motor can accurately control the Z-axis height direction movement of the laser head to realize dynamic focusing and improve cutting quality.
In the high-speed cutting process, the linear voice coil motor can accurately adjust the position of the laser head to adapt to different thicknesses of materials to ensure uniform cutting.
Used in galvanometer scanning system for high-speed laser marking, engraving or micromachining, the linear voice coil motor-driven galvanometer system can realize high-speed and high-precision beam positioning.
Combined with a sensor in the auto-focus system, the linear voice coil motor adjusts the laser head height in real time to adapt to different material surface undulations and improve cutting consistency.
Features:

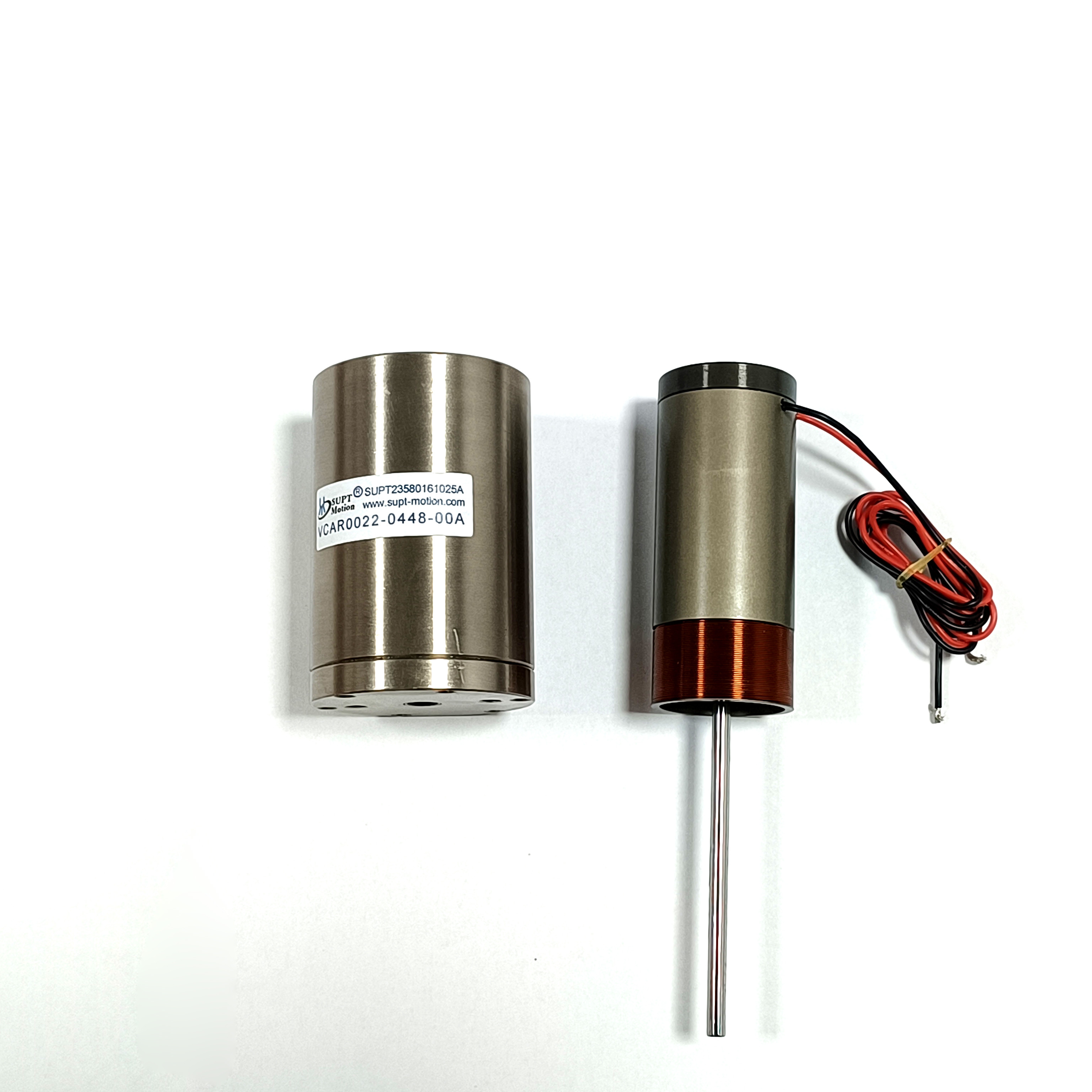

Shaft-type voice coil motors have a built-in motion shaft and precision linear bearings.
The kinematic shaft is made of lightweight, highly rigid, wear-resistant and high quality materials.
The actuator coil is lightweight, with short response time, high frequency, compact structure, high dynamic response and acceleration, high precision and controllability.
The kinematic shaft is made of lightweight, highly rigid, wear-resistant and high quality materials.
The actuator coil is lightweight, with short response time, high frequency, compact structure, high dynamic response and acceleration, high precision and controllability.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
Applications:
Main applications for shaft type voice coil motors:.
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. On-site valve operation: type metering valves, pressure test systems, pneumatic valves chemical
Injection systems.
3. Micromechanical industry: feeding systems, micro drilling, precision stamping.
4. Vibration systems: vibration tables, vibration platforms.
5. Medical field: micro-injection systems, respiratory equipment, testing equipment.
6. Aviation technology: flight control systems, pilot feedback systems.
7. Commercial field: computerized cooling pumps, micro-camera autofocus systems.
8. Automation industry: laser equipment, dispensers, test equipment, textile machinery.
