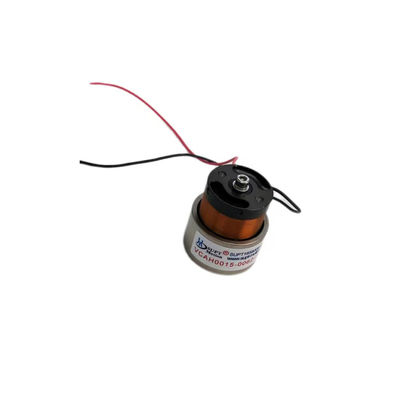

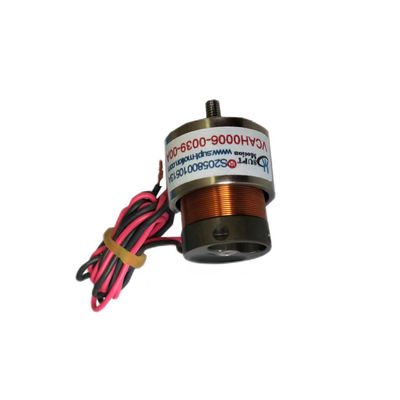

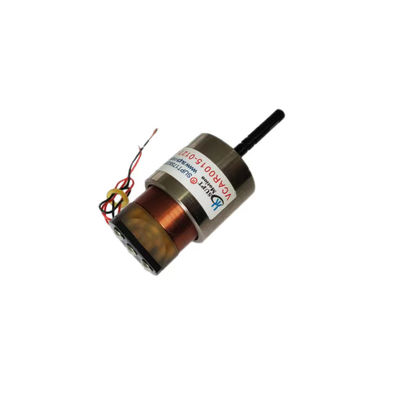

Custom High Frequency Voice Coil Motor With Bearing Voice Coil Linear Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | CCC, ce, ISO9001 |
| Model Number | VCAR0070-0149-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $150.00 - $160.00/pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 70 | Maximum Travel(mm) | 14.9 |
| Voice Coil Motor(V) | 26.9 | Weight Rotor(kg) | 79 |
| Stator Dia(mm) | 43 | Continuous Force(N) | 27.3 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | High Frequency Voice Coil Motor CCC,Voice Coil Motor With Bearing CCC,Voice Coil Linear Actuator ISO9001 |
||
Product Description
Custom High Frequency Voice Coil Motor With Bearing High Acceleration
Product Description
Voice coil motors with high frequency response from bearings are suitable for various fields, especially in applications that require fast response, high-frequency motion, and precision control, playing an important role. The following are some suitable application areas and their roles in these areas:
1. Optical System: In optical equipment, such as laser beam adjustment, optical component position control, and lens focusing, high-frequency voice coil motors can achieve fast and accurate optical path adjustment to maintain accurate imaging and focusing.
2. Semiconductor manufacturing: In the semiconductor industry, high-frequency response motion control is required for precision machining and equipment positioning. These motors play a crucial role in chip manufacturing equipment, mask alignment, and etching processes.
3. Medical Equipment: In medical equipment, such as microscopes, imaging devices, and surgical robots, high-frequency voice coil motors can be used to achieve precise sample position adjustment, image stability, and precise surgical operations.
4. Aerospace: In the field of aviation and aerospace, high-frequency response and rapid control are required to achieve stability and control of aircraft. These motors play a crucial role in navigation systems, stable platforms, and flight controllers.
5. Precision Measurement Instruments: In laboratory environments, high-frequency voice coil motors can be used to drive precision measurement instruments, such as atomic force microscopes, scanning electron microscopes, etc., to achieve high-resolution sample scanning and positioning.
6. Vibration Simulator: High frequency voice coil motors can be used to simulate vibration and vibration environments, such as earthquakes and mechanical vibrations, to test the performance and durability of equipment in different environments.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The Linear Voice Coil System is a highly efficient, cost-effective linear motor that provides accurate position repeatability and low noise levels.
Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant.
high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Packaging & Shipping
Company Information
Certifications
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
