High Precision Linear Voice Coil Motor Miniature Voice Coil Motor With Shaft
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | CCC, ce, ISO9001 |
| Model Number | VCAR0044-0075-00A |
| Minimum Order Quantity | ≥1 |
| Price | $135.00/pieces 1-29 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 5.8A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 7.5 |
| Motor With Bearing(V) | 16.8 | Weight Rotor(kg) | 38.6 |
| Stator Dia(mm) | 31.1 | Continuous Force(N) | 13.7 |
| Highlight | High Accuracy Linear Voice Coil Motor 5.8A,Micro Voice Coil Motor 5.8A,Voice Coil Motor With Back Cover |
||
Product Description

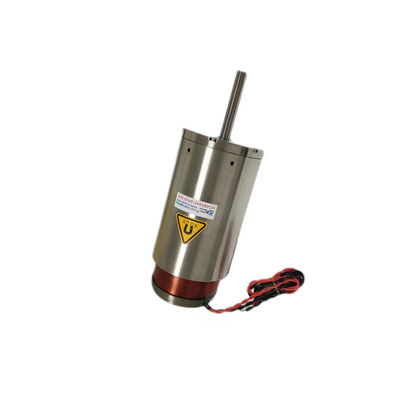

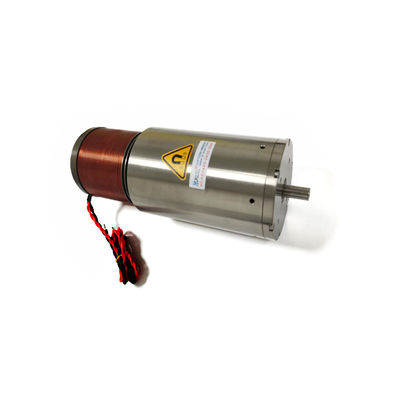

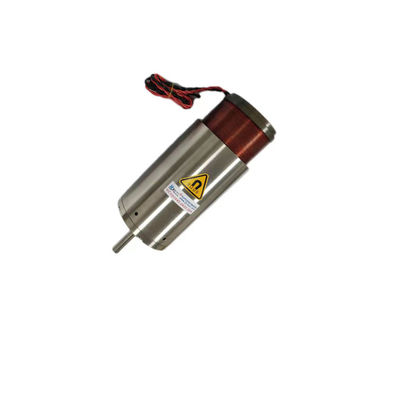

Micro Voice Coil Motor With Bearing & Back Cover High-Accuracy
Product Description
The Micro Voice Coil Motor With Bearing is an advanced innovation that combines the precision of a voice coil motor with the stability of integrated bearings. This miniature motor is engineered to provide accurate and controlled linear motion while minimizing friction and ensuring smooth operation.
The inclusion of integrated bearings enhances the motor's performance by reducing mechanical losses and offering improved load handling capabilities. These bearings provide support and stability to the motor's moving components, allowing for consistent and controlled movement even in demanding applications.
With its compact size and bearing integration, this micro voice coil motor excels in applications that demand precise positioning and controlled linear motion. It finds utility in various fields such as robotics, medical devices, and optical systems, where accuracy and reliability are paramount.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The VCAB series of linear voice coil motor is a cutting-edge products, providing high-resolution, high repeatability, high speed (RPM) , sports shaft made of lightweight, high stiffness, wear-resistant materials. It is characterized by light weight, small volume, short response time, high frequency and high precision. It is a linear vocal cord engine that provides superior performance and accuracy. Linear sound coil products are designed to meet the highest standards and are capable of providing a range of currents with their powerful shaft. It is widely used in Semiconductor industry, valve operation, pneumatic valve chemical injection systems, micro-mechanical industry, medical field breathing equipment, testing equipment, aviation technology and other aspects, and ensure the provision of reliable performance.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Certifications
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
