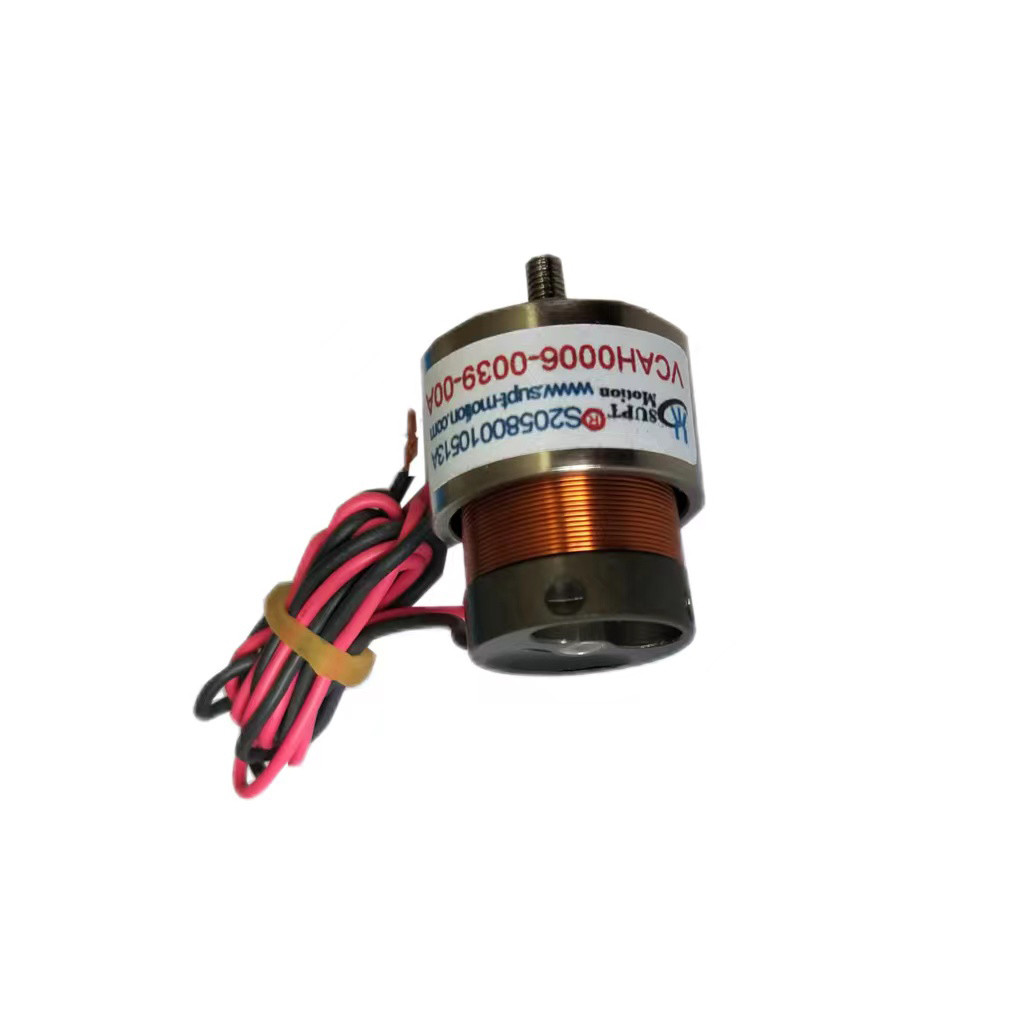

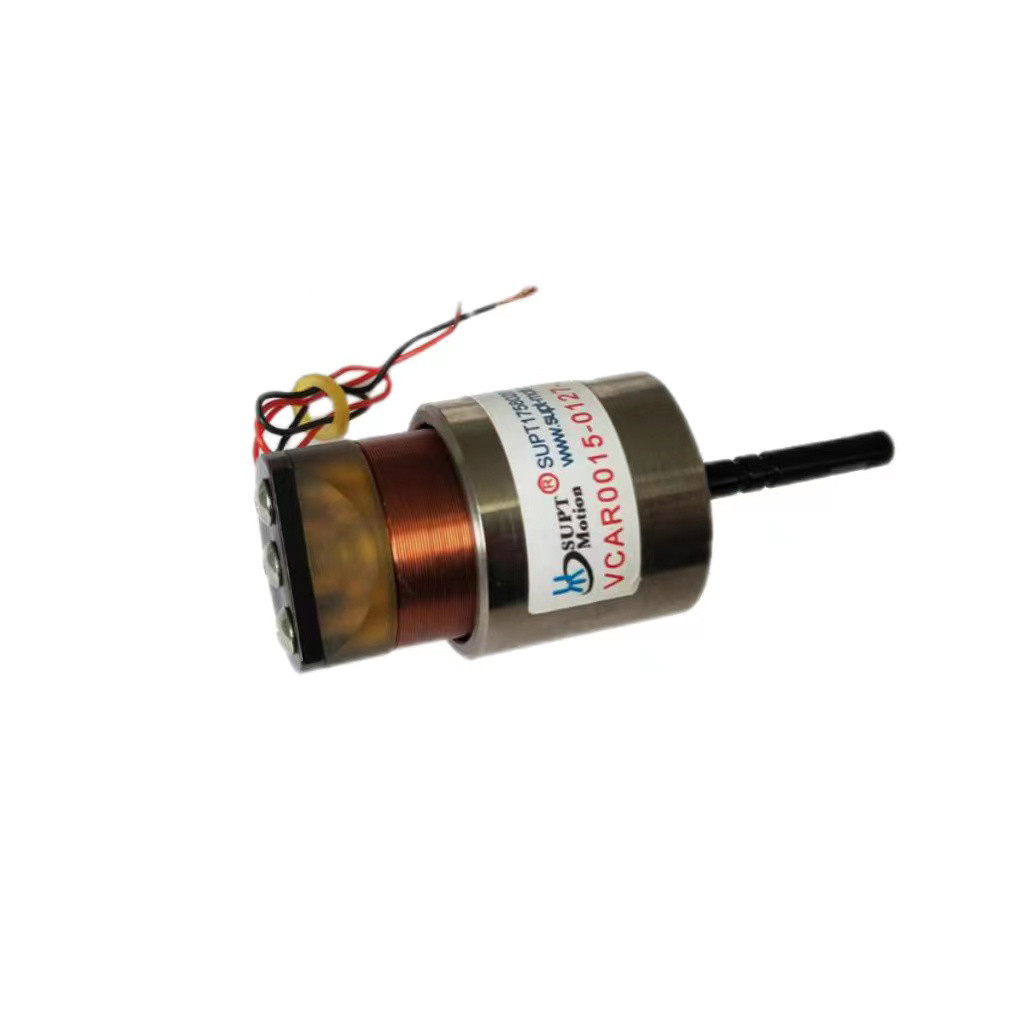

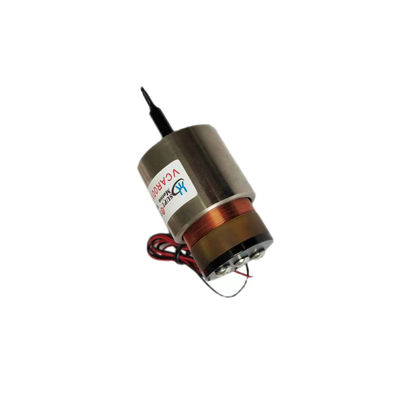

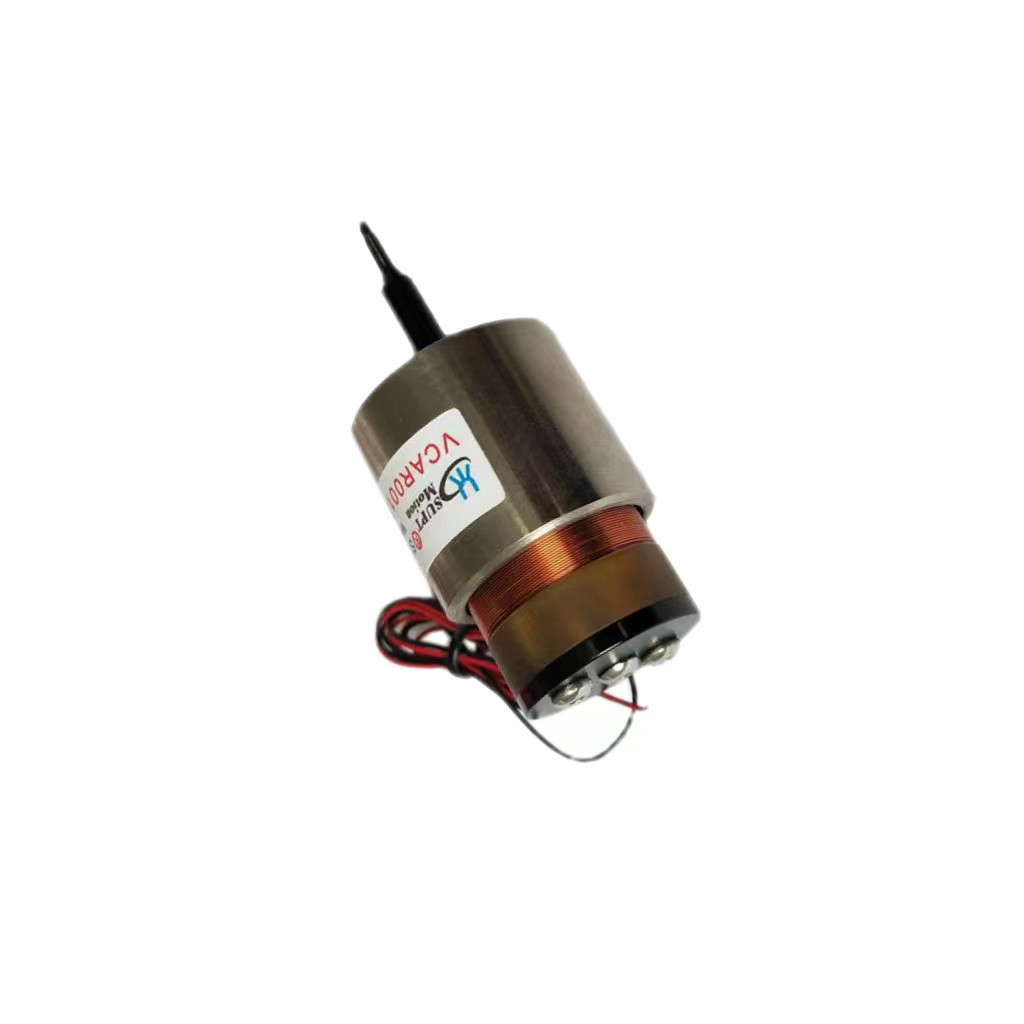

High Frequency Linear Voice Coil Motor With Shaft For Optical Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | CCC, ce, ISO9001 |
| Model Number | VCAR0044-0075-00A |
| Minimum Order Quantity | ≥1 |
| Price | $140.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box linear shaft motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month linear shaft motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4.8 | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 7.5 |
| Linear Shaft Motor (V) | 16.8 | Weight Of Actuator(g) | 250 |
| Power(w) | 97.2 | Continuous Force(N) | 13.7 |
| Port | Shanghai Linear Shaft Motor | ||
| Highlight | High Frequency Linear Voice Coil 4.8A,Linear Voice Coil With Shaft 4.8A,CCC Voice Coil Motor With Shaft |
||
Product Description
High Frequency Of Movement Sealed Voice Coil Motor With Shaft
Product Description
The semi-enclosed belt-driven voice coil motor with integrated bearings features a sophisticated design that merges precision motion control with enhanced durability. Encased within a partially enclosed housing, this motor incorporates a belt-driven mechanism and integrated bearings for optimal performance.
In optical systems, linear voice coil motors play a pivotal role in precise motion control, enabling various essential functions:
1. Beam Steering: Linear voice coil motors accurately adjust the position of mirrors or prisms, redirecting light beams for precise targeting and alignment in optical systems.
2. Focusing Mechanisms: These motors facilitate precise movement of lenses or lens groups, enabling accurate focusing in imaging devices such as cameras and microscopes.
3. Image Stabilization: Linear voice coil motors help compensate for vibrations or movements, stabilizing images in optical equipment like binoculars and cameras.
4. Optical Path Adjustment:They contribute to fine-tuning the optical path alignment in devices such as spectrometers and interferometers, ensuring accurate measurements.
5. Laser Beam Control: Linear voice coil motors adjust the position of optical components, such as prisms or mirrors, to control the direction of laser beams for various applications.
6. Alignment in Telescopes: These motors aid in aligning components within telescopes, enabling accurate tracking and observation of celestial objects.
7. Microscopy: In microscopy systems, linear voice coil motors assist in precise sample positioning, stage movement, and focus adjustment.
8. Optical Switching: Linear voice coil motors facilitate the precise alignment of optical fibers or waveguides, enabling efficient optical signal routing and switching.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The linear voice coil motor is an efficient, cost-effective linear motor that provides accurate position repeatability and low noise levels. Built-in motion shaft and precision linear bearing. The sports shaft is made of light weight, high rigidity and wear-resistant material. With high acceleration, high accuracy,short response time and high frequency, light weight characteristics, is a high-quality material. Widely used in medical equipment, breathing machines, semiconductors, precision testing and detection, valve flow control and other fields.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Certifications
FAQ
linear shaft motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
