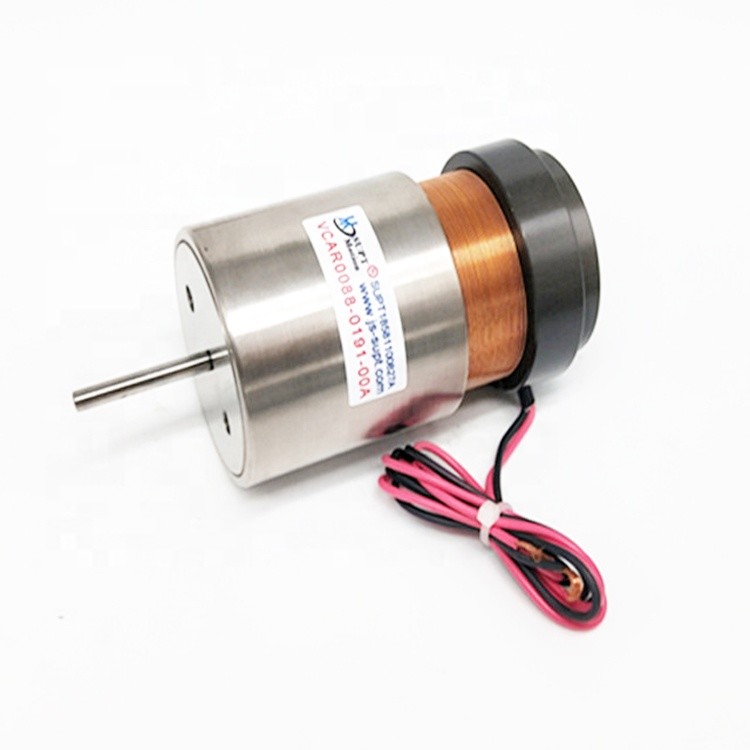

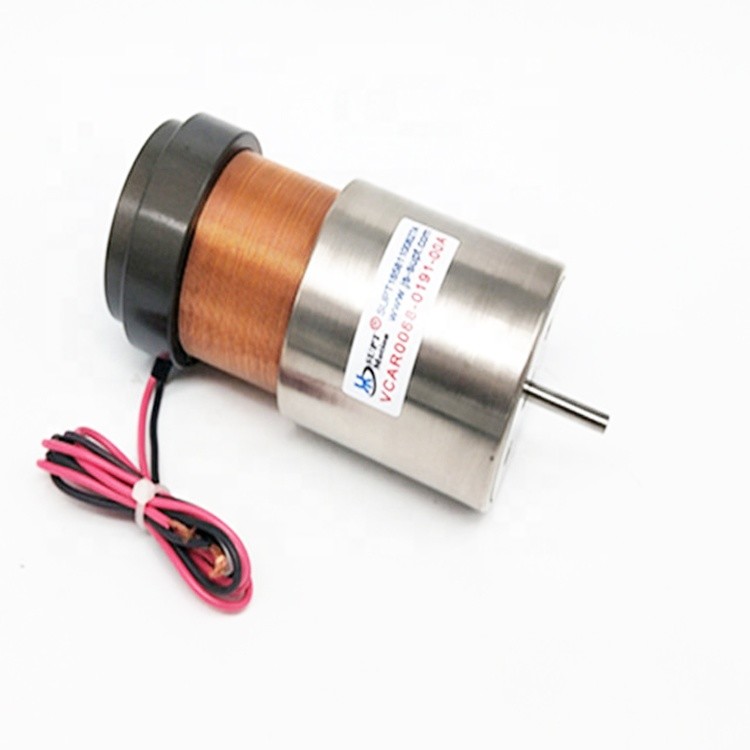

High Acceleration Linear Electromagnetic Motor Voice Coil Small Brush Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VCAR0088-0191-00A |
| Minimum Order Quantity | ≥1 |
| Price | $280.00/pieces 1-47 pieces |
| Packaging Details | carton packing |
| Delivery Time | sample order 2-3 days,other one work days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Microscope,Robot,Medical Ventilators,Optical Project,Laser Equipment |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 11 | Efficiency | IE 1 |
| Peak Force(N) | 88.6 | Maximum Travel(mm) | 19.1 |
| Voice Coil Motor(V) | 30 | Weight Rotor(kg) | 162 |
| Continuous Force(N) | 23.2 | Back EMF Constant(kb) | 8 |
| Applications | Semiconductor,Automation,Commercial,Medical, | Port | Shanghai |
| Highlight | High Acceleration Linear Electromagnetic Motor 11A,Linear Electromagnetic Motor Voice Coil,11A Voice Coil Small Brush Motor |
||
Product Description
Electromagnetic Voice Coil Motor For Identification Tool High Acceleration
Product Description
Linear voice coil motors can be employed in tool identification systems to achieve precise positioning, reliable detection, and efficient tool management. Here's how they can be used:
1.Positioning and Alignment: Linear voice coil motors precisely move tools to predefined positions for identification. They ensure that tools are consistently placed in the same location for accurate recognition.
2. Sensor Integration: Sensors, such as RFID (Radio-Frequency Identification) tags or barcode scanners, can be integrated into the system. Linear voice coil motors position the tool in front of the sensor, allowing it to read the identification information.
3. Feedback Control: Feedback sensors like encoders or linear potentiometers monitor the motor's position, ensuring that the tool is accurately positioned for identification.
4. Recognition Algorithms: The identification system employs algorithms to process the data obtained from sensors. This data includes information such as tool type, serial number, and usage history.
5. Database Integration: The system connects with a database containing information about each tool. This database can include details like tool specifications, maintenance history, and usage instructions.
6. Control Software: Linear voice coil motors are controlled by software that coordinates their movement and sensor interaction. The software ensures that the correct tool is placed in front of the sensor for identification.
7. Error Handling:The system can detect errors such as misreads, misplacements, or missing tools. It can alert operators or trigger corrective actions.
8. Real-time Updates: The identification system can update tool information in real-time, ensuring that the database reflects the most current status of each tool.
9. Automation and Integration: Linear voice coil motors can be integrated into automated tool management systems, reducing human intervention and enhancing efficiency.
10. Traceability: By accurately identifying tools, the system enables traceability of tool usage, maintenance, and calibration.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The linear voice coil motor is an efficient and reliable linear motion system. It effectively provides accurate and accurate linear motion with high positioning accuracy, high load carrying capacity, long stroke length, high frequency response, and high acceleration. It is widely used in medical ventilator equipment, semiconductor, precision detection and so on. The product name is a linear voice coil motor with shaft, which can provide smooth and accurate linear motion. High load capacity and long stroke length ensure that it can meet any application requirements. Its high positioning accuracy allows the accuracy and precision to control linear motion.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Certifications
FAQ
voice coil motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
