High Speed High Frequency Loudness Rotary Voice Coil Motor For Precision 3D Scanning Heads
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VARS Series |
| Minimum Order Quantity | 1PCS |
| Price | $166 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >30pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

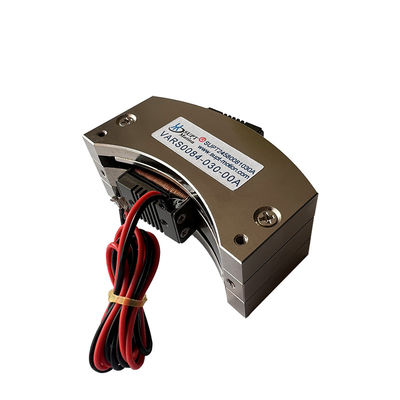

| Product Model | VARS0084-030-00A | Peak Thrust | 0.84N-m |
|---|---|---|---|
| Type | Micro Motor | Continuos Torque | 0.6N-M |
| Speed | High Speed | Power | 16W |
| Housing Material | Aluminum | Length | 75mm |
| Voltage | 6.3V | Weight Of The Coil(g) | 50.4 |
| Highlight | High Speed Rotary Voice Coil Motor,High Frequency Rotary Voice Coil Motor |
||
Product Description
Product Description:
Rotary voice coil motors are highly accurate, fast responding, compact and stable motion control capabilities that provide precise positioning and control during 3D scanning.
Rotary voice coil motors are typically used to control the rotation of the 3D scanning head or the angle of the scanning mechanism. Rotary motors are able to provide high control accuracy in a small space and are suitable for applications that require regulation of the laser beam in a 3D laser scanner.
The very fast response time of the rotary voice coil motor allows for rapid changes in the scanning head's attitude to accommodate high-speed scanning needs. During 3D scanning, the scanning angle or position needs to be changed quickly and precisely to capture more point cloud data. The rotary voice coil motor responds to control signals in real time, ensuring a smooth and stable scanning process.
The laser beam in a 3D scanning head often requires fine angular adjustment to scan different angles and surfaces. Rotary voice coil motors provide high-resolution angular control during this process, allowing 3D scanning to capture a fuller range of object details, reducing dead space and increasing data accuracy and integrity.
Rotary voice coil motors are relatively simple and compact and can be integrated into smaller 3D scanning heads. The use of rotary voice coil motors is especially important for handheld or portable 3D scanning equipment, ensuring that the scanning head is lightweight without losing accuracy.
Features:
Rotary voice coil motorized sub-coils are lightweight, with short response time and high frequency.
Swing angle 1-100 degrees
Torque 1-50N.m
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

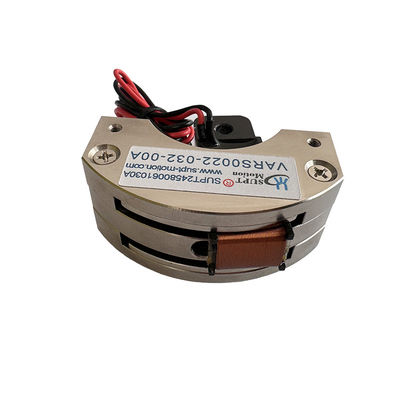

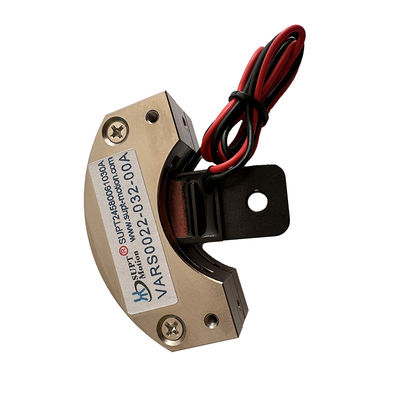

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
Rotary voice coil motor is mainly widely used in optical scanning, positioning, focusing, etc., the precision control field of the fast mirror.
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Aviation technology: flight control systems, pilot feedback systems.
3. Automation industry: laser equipment, distributors, test equipment, textile machinery.
