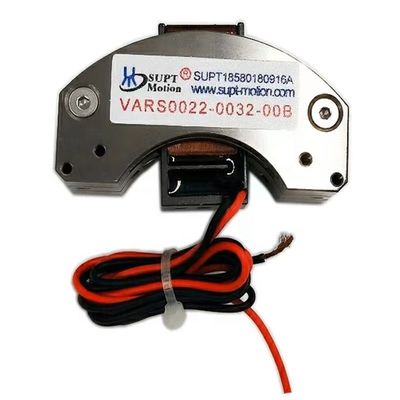

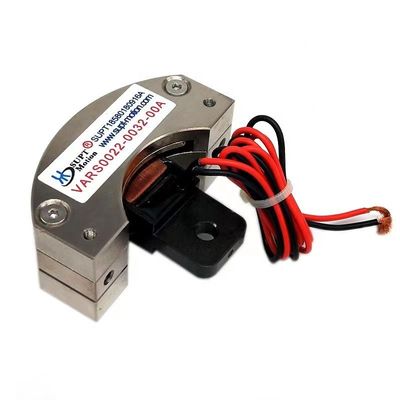

Precision Rotary Voice Coil Motor Micro Linear Actuator For Automation Equipment
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001 |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $145.00/pieces 2-59 pieces |
| Packaging Details | Carton packing |
| Delivery Time | sample order 2-3 days,other one work days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Medical, Semiconductor, Aerospace, Valve Control, Vibration Platform And Automation Industry. |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | 20 |
| Continuous Current(A) | 1.4A | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.22 | Maximum Travel(mm) | 32 |
| Mini Voice Coil Actuator (V) | 15.5 | Continous Torque(N-m) | 0.12 |
| Back EMF Constant(L-L)(Kb) | 0.16 | Coil Weight(g) | 21.5 |
| Length(mm) | 60 | Width(mm) | 51.5 |
| Height(mm) | 26 | Port | Shanghai |
| Highlight | Precision Rotary Voice Coil Motor VCM,Precision Micro Linear Actuator VCM,Micro Linear Actuator For Electronic Gaming Tables |
||
Product Description
Micro Precision Linear Actuator For Semi-Automated Electronic Gaming Tables
Product Description
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-m.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Technical Parameters:
| VARS Series of Swing type Mini voice coil actuator | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |

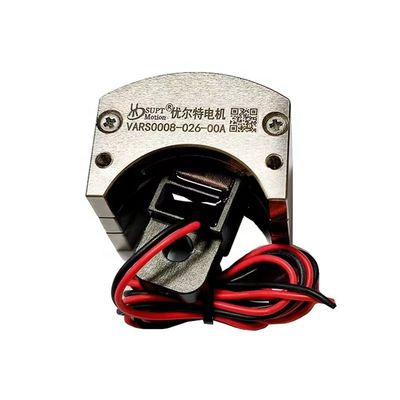

| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The Rotary Voice Coil Motor (VCM) is a kind of arc voice coil motor, the model is VARS0022-032-00A. The rotary actuator uses rectangular linear actuator technology and bending thermal technology to provide a high-resolution finite angle positioning system. Swing-type series can produce torque greater than 100 nm, swing torque greater than 90 degrees, its response frequency is high, response time is short, the motor is especially suitable for small stroke high precision and high response frequency system can do high-speed oscillatory reciprocating motion. Voice coil motor is a non-commutation type power device, its positioning accuracy completely depends on the feedback and control system, has nothing to do with voice coil motor itself. Swing-type products are typically used in laser technology in the mirror locator, valve brakes, automation equipment, aerospace, semiconductor and other industrial fields. It is also easy to install and maintain. It is a great choice for high performance and reliable applications.
