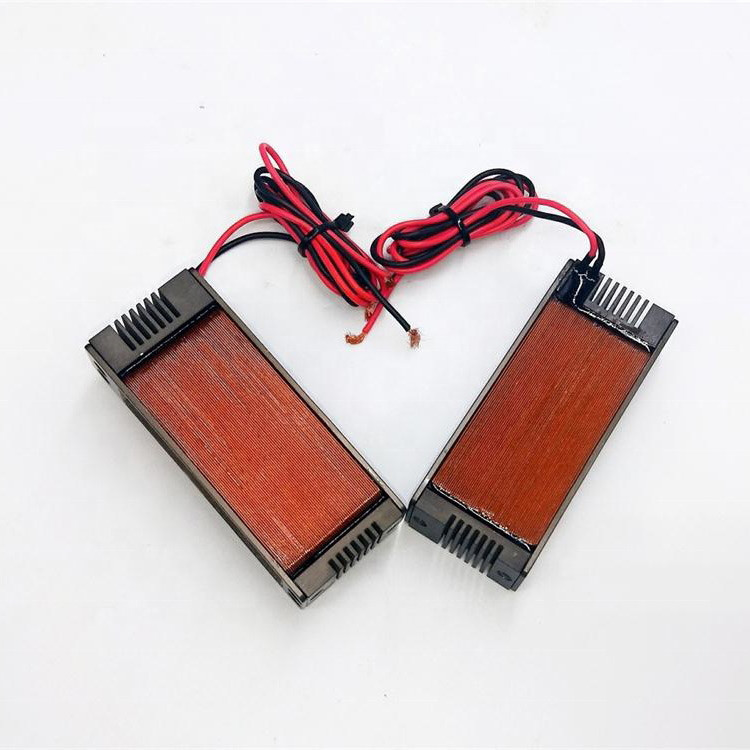

Angle Positioning System Rotary Voice Coil Motor High Precision Oscillating Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VARS0120-020-00A |
| Minimum Order Quantity | ≥1 |
| Price | $270.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Medical Ventilators,Optical Project,Laser Equipment ,Semiconductor |
|---|---|---|---|
| Type | Micro Motor | Torque | 1 N.m |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 3.5 | Efficiency | IE 1 |
| Peak Torque(N-m) | 1.2 | Maximum Travel(mm) | 20 |
| Vibrating Motors (V) | 8.4 | Continous Torque(N-m) | 1.2 |
| Back EMF Constant(L-L)(Kb) | 0.67 | Coil Weight(g) | 65 |
| Length(mm) | 80 | Height(mm) | 32 |
| Port | Shanghai Voice Coil Motor | ||
| Highlight | Priority Angle Positioning Rotary Voice Coil Motor,3.5A Rotary Voice Coil Motor,Rotary Voice Coil Actuator 3.5A |
||
Product Description
Priority Angle Positioning System Voice Coils For Automobile Assembly Detection
Product Description
The voice coil motors have applications in priority angle positioning systems for automotive assembly inspection. This system is typically used on automotive production lines to ensure the correct position and positioning of various components during the assembly process. The voice coil motor plays a crucial role in precise control and positioning in this system.
In the priority angle positioning system for automotive assembly inspection, the application process of voice coil motors may be as follows:
1. Sensor detection: Firstly, the sensor transmits the monitored data to the control system. These sensors can be optical sensors, touch sensors, position sensors, etc., used to detect the position, angle, shape, and other information of components.
2. Control System Analysis: The control system will analyze the data provided by sensors to determine whether adjustments or positioning of components are necessary. If a component is not in the correct position or angle, the system will trigger the corresponding correction operation.
3. Voice coil motor control: When adjusting the position or angle of components, the voice coil motor will be activated. It will generate a magnetic field based on the control signal to drive the coil, generating force and motion, causing minor adjustments to the components.
4. Positioning and Calibration: The movement of the voice coil motor will position the components to the correct position and angle. This can be achieved by precise control of the current signal. The process of positioning and correction is usually carried out multiple times until the component reaches the desired position and angle.
5. Detection and Confirmation: After completing the positioning and calibration, the system will use sensors again to detect the position and angle of the components to ensure the accuracy of the adjustment. If necessary, the system can perform calibration operations repeatedly until the position of the components meets the requirements.
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |

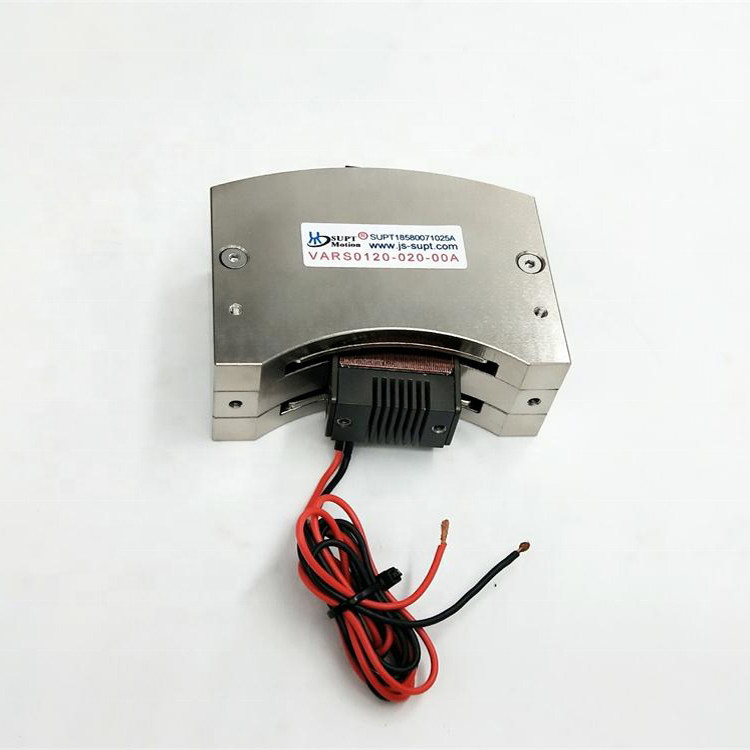

| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |

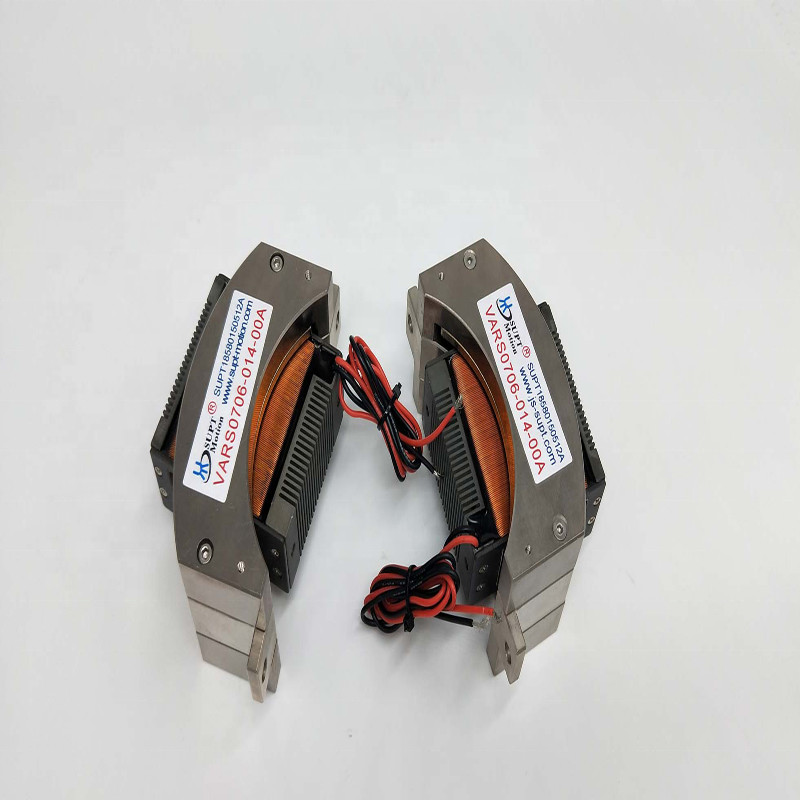

| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
Swing type voice coil motor its typical torque of 100 degrees, torque of 50N · m. Swing type products are typically used in laser technology in the mirror locator, swing type valve brake, swing type positioning system and flight controller, etc. , it relates to semiconductor industry, automation and aircraft industry. The oscillating voice coil motor is a device which can convert electrical energy into mechanical energy and realize linear and limited oscillating angle motion. It uses the interaction of magnetic poles in a magnetic field generated from a permanent magnetic field or an electrified coil conductor to produce regular motion. The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
