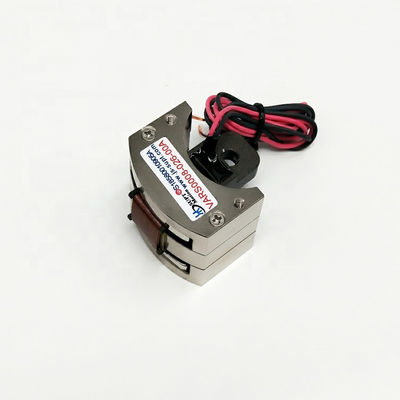

High Speed Rotary Voice Coil Motor Linear Optical Voice Coil Actuator For Valve Field
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001 |
| Model Number | VARS0008-026-00A |
| Minimum Order Quantity | ≥1 |
| Price | $130.00/pieces >=1 pieces |
| Packaging Details | in carton and as customer requirements<br>Linear voice coil actuator |
| Delivery Time | sample order 2-3 days,other one work days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month Linear voice coil actuator |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | Current | Efficiency | IE 1 |
| Peak Torque | 0.08N-M | Continuous Torque | 0.045N-M |
| Max Travel | 26mm | Rated Voltage | 6.4V |
| Width * Height | 39.8*26.1mm | Port | Shanghai Port |
| Highlight | High Speed Rotary Voice Coil Motor,Rotary Voice Coil Motor Linear 6.4V,Linear Optical Voice Coil Actuator 6.4V |
||
Product Description
High Speed Linear Optical Voice Coil Actuator For Valve Field
Product Description
The linear optical voice coil motor of the valve field refers to a linear motor applied in the field of industrial valve control, which combines voice coil motor and optical sensing technology to achieve precise control and position feedback of valves. This type of motor system is usually used to adjust parameters such as valve opening and closing, flow rate, and pressure to meet the requirements of industrial processes.
Its working principle involves:
1. Linear motor: Linear motor utilizes the interaction of coils in the magnetic field to generate motion. In valve applications, linear motors can be used to drive the piston or push rod of the valve, achieving linear motion.
2. Optical sensor: Position feedback is crucial during valve control. Optical sensors can monitor the actual position of the valve and transmit its information back to the control system to achieve closed-loop control.
3. Control System: The control system controls the movement of the linear optical voice coil motor by adjusting the current signal according to the required valve position and flow requirements.
4. Real time feedback: The real-time feedback of optical sensors enables the control system to accurately monitor and adjust valve positions to maintain stable and accurate flow control.
5. High precision and responsiveness: Using optical sensing technology, linear optical voice coil motors can provide high-precision position control and fast response, thereby achieving real-time valve adjustment.
This linear optical voice coil motor plays an important role in valve scenarios and can be used in various industrial fields, including chemical engineering, energy, water treatment, etc. Its high precision, fast response, and stability make it an effective solution for achieving precise valve control and process regulation.
Features:
- Product Name: Rotary Voice Coil Motor
- Weight: Light
- Rated Voltage: 6.4V
- Name: Rotary Voice Coil Motor
- Max travel: 26mm
- Life: 10000h
- Special Feature: Curved Voice Coil Motor, Rotating VCM, Rotary Voice Coil Motor
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The rotating voice coil motor is a rotating voice coil actuator that provides accurate, fast, and repeatable positioning. It is designed to provide a highly accurate, reliable and repeatable axis of rotation for applications requiring accuracy and speed. It is ideal for precision rotary shaft control applications, such as the semiconductor industry, swing valve brakes, 'robots, mechatronics engineering and medical equipment. ' . This rotating voice coil motor is a compact, low-cost solution with high precision control, high speed, short response time, and high torque density. It is also suitable for applications that require a reliable and repeatable rotating shaft. Rotary voice coil motor with its low attitude, high torque and excellent performance, is the best choice for various rotary shaft control applications, and warranty 3 months to 1 year.
Applications:
SUPT MOTION's VARS Series Rotary Voice Coil Motor is a type of rotary motor featuring high performance and reliable operation. It is certified by ce,ISO9001 and manufactured in Jiangsu, China. The minimum order quantity for this product is ≥1 and its price is $130.00/pieces >=1 pieces. It is packaged in a carton for delivery and the delivery time is sample order 2-3 days,other one work days, bulk to be negotiated. The payment terms are T/T and the supply ability is available for interview.
It is widely used in semiconductor, precision test and detection ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
